GE DS200TBQCG1AAA Replacement Solution for Mark VI

Product Overview

GE DS200TBQCG1AAA Replacement Solution for Mark VI: Seamless Transition from Legacy Turbine Control Systems

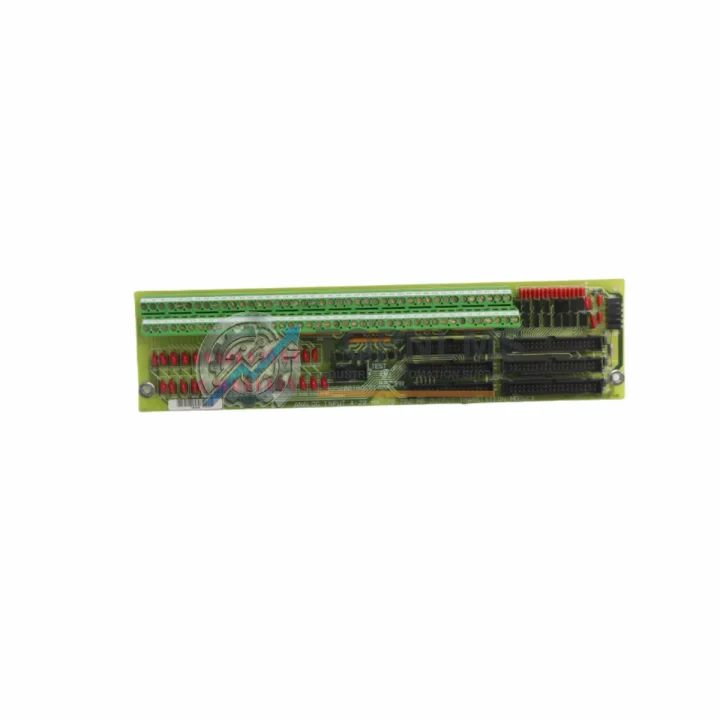

The GE DS200TBQCG1AAA is a critical I/O Termination Board within the GE Mark VI Turbine Control platform, designed to interface field wiring — thermocouples, RTDs, discrete I/O signals, and analog process variables — with the Mark VI controller backplane. As GE progressively phases out legacy DS200 Series components in favor of the Mark VIe architecture, many power generation facilities, combined-cycle plants, and industrial turbine operators face the challenge of sourcing reliable, specification-accurate replacement boards to sustain operational continuity without committing to a full control system overhaul.

TOPNLMS maintains verified stock of the DS200TBQCG1AAA, fully tested and ready for immediate dispatch. Each unit undergoes functional verification prior to shipment, ensuring that your replacement board arrives ready for installation with minimal commissioning time on-site.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200TBQCG1AAA replacement rarely involves a single board in isolation. In practice, turbine control system upgrades and emergency replacements require a coordinated approach across multiple interconnected components. When replacing or upgrading the I/O Termination Board, engineers typically review the condition and compatibility of adjacent modules within the same Mark VI I/O enclosure.

The DS200IOCAG1A I/O Controller Board is the most common companion module — it processes the signals routed through the DS200TBQCG1AAA termination board and communicates with the Mark VI main controller. If the termination board has failed due to field-side surge or moisture ingress, the IOCA board should be inspected simultaneously, as both boards share the same I/O bus segment.

Power integrity is equally critical. The DS200PCCAG1A Power Supply Board provides regulated DC power to the DS200 Series I/O rack. A degraded power supply is a common root cause of intermittent I/O board faults, and replacing the termination board without verifying power rail stability can result in repeat failures. Similarly, the DS200SDCCG3A Speed Detector Board — which handles turbine speed and overspeed detection signals — shares the same enclosure and should be confirmed operational before returning the unit to service.

For facilities migrating from Mark V to Mark VI, the transition often involves replacing the legacy DS3800HPIB High-Speed Pulse Input Board and re-routing speed pickup signals to the DS200 Series I/O architecture. This migration requires updating the ToolboxST configuration to map new I/O addresses and verifying that existing magnetic pickup sensors are compatible with the DS200TBQCG1AAA input impedance specifications.

Communication infrastructure upgrades are another common parallel workstream. The IS200EACAH1A Ethernet Adapter Card enables IONET-based supervisory communication for Mark VI systems, replacing older ARCNET-based communication modules used in Mark V installations. When upgrading the I/O termination layer, it is advisable to confirm that the supervisory communication path is also modernized to avoid bottlenecks in data acquisition and alarm management.

In control cabinet environments where space is constrained, the DS200TCQAG1BHF Quad Relay Output Board is frequently co-located with the DS200TBQCG1AAA in the same I/O rack. Technicians performing a termination board swap should verify that relay output wiring is correctly re-seated after the replacement procedure, as adjacent board removal can disturb connector seating on neighboring modules.

For facilities that require signal conditioning between legacy field devices and the Mark VI I/O layer, signal isolators and terminal multiplexer modules — such as those in the IS200 Series — provide galvanic isolation and signal scaling, protecting the DS200TBQCG1AAA from field-side transients during the transition period when old and new wiring coexist in the same cabinet.

Finally, programming and commissioning the replacement board requires a compatible GE ToolboxST engineering workstation with the correct software version for the installed Mark VI firmware. TOPNLMS can advise on firmware compatibility and configuration file backup procedures to ensure that the replacement process does not result in loss of tuning parameters or alarm setpoints.

Retrofit Guidance FAQ

Q: Can I replace the DS200TBQCG1AAA without reprogramming the Mark VI controller?
A: For a same-revision, same-part-number swap, no firmware or configuration changes are required. The Mark VI controller will recognize the replacement board automatically upon power-up. However, if the replacement board has a different hardware revision suffix, a ToolboxST download may be required to align I/O configuration parameters.

Q: Is the existing field wiring harness reusable?
A: In the majority of installations, yes. The DS200TBQCG1AAA uses a standard terminal block layout consistent across the DS200 Series. Existing thermocouple, RTD, and discrete I/O wiring can typically be re-terminated directly to the replacement board without modification. Always verify terminal numbering against the site-specific wiring diagram before energizing.

Q: What communication protocols does the DS200TBQCG1AAA support?
A: The board operates on the internal Mark VI I/O bus and is compatible with IONET-based supervisory communication. It does not natively support Modbus, PROFIBUS, or DeviceNet — those protocols are handled at the controller or gateway level, not at the I/O termination layer.

Q: Will the replacement board fit in the existing Mark VI I/O enclosure?
A: Yes. The DS200TBQCG1AAA conforms to the standard DS200 Series PCB form factor and mounts directly into the Mark VI I/O enclosure without mechanical modification. Verify that the enclosure slot is designated for a termination board (not a controller or power board slot) before installation.

Q: How do I handle a Mark V to Mark VI migration involving this board?
A: Mark V to Mark VI migrations require a full I/O remapping exercise in ToolboxST. The DS200TBQCG1AAA cannot be used directly in a Mark V rack — it is a Mark VI-native component. The migration process involves installing a new Mark VI I/O enclosure, re-terminating field wiring to the DS200TBQCG1AAA, and downloading a new controller configuration. TOPNLMS can supply the full range of DS200 Series boards required for a complete rack build-out.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from Xiamen, China within 1–3 business days of order confirmation. International express shipping (DHL / FedEx) is available with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for urgent breakdown situations — contact us directly to confirm stock availability and arrange priority shipment.

Warranty Assurance

Every DS200TBQCG1AAA supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes power-on functional verification, I/O signal path continuity checks, and visual inspection for component condition and connector integrity. Units that do not pass our testing criteria are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned board. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. We maintain reserve stock specifically allocated to warranty replacements, ensuring that a confirmed warranty claim does not result in extended downtime for your facility.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices compliant with international customs requirements. All units are shipped with ESD-protective packaging and clearly labeled with part number, serial reference, and warranty expiry date.

TOPNLMS is committed to supporting industrial operators through the full lifecycle of their control system assets — from emergency breakdown replacement to planned upgrade migration. Our technical team is available to assist with compatibility verification, configuration guidance, and multi-board procurement planning.
