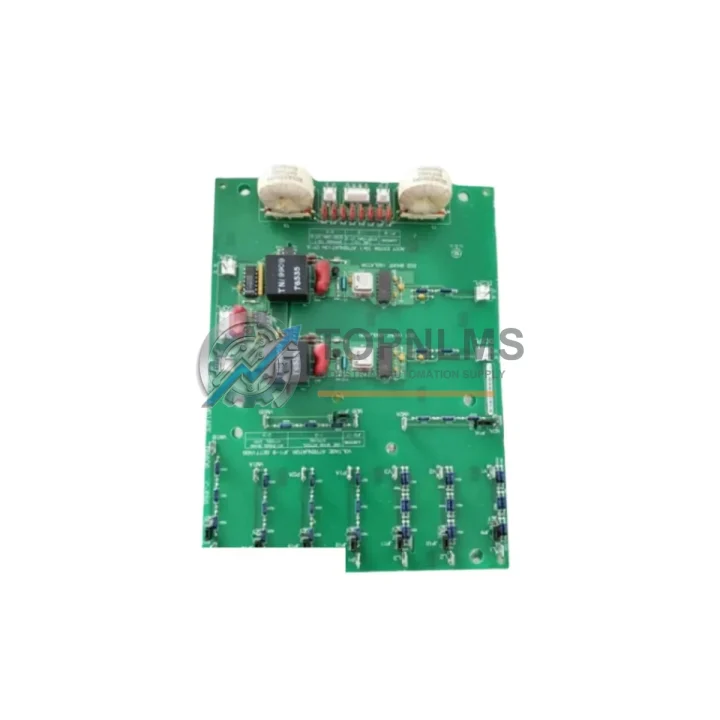

GE DS200SHVMG1AFE Ruggedized SHVM Interface Module

Product Overview

GE DS200SHVMG1AFE Ruggedized SHVM Interface Module: Industrial Resilience for Harsh Environments

The GE DS200SHVMG1AFE is a high-integrity SHVM (Speed, Humidity, Vibration Monitoring) Interface Module engineered for the GE Speedtronic Mark V turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal fidelity and system stability that mission-critical turbine control demands.

In continuous production environments — from combined-cycle power plants and offshore gas compression platforms to petrochemical refineries and steel mill auxiliary systems — control system downtime is never an option. The DS200SHVMG1AFE is built to sustain reliable I/O communication between the Mark V controller core and field instrumentation even under the most punishing operating conditions, making it an essential component for any facility that cannot afford unplanned outages.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200SHVMG1AFE does not operate in isolation — it is a precision node within a tightly integrated Mark V control architecture. In a fully configured turbine control panel, this module works in concert with the DS200TCQBG1BHF Turbine Control Quad Board, which manages quadruple-redundant voting logic for trip and protection functions. Upstream, the DS200TCCBG1BHF Control Core Board coordinates sequencing and setpoint management, while the DS200TCDBG1BHF Diagnostic Board provides continuous self-test and fault annunciation — ensuring that any anomaly detected by the SHVM module is immediately escalated through the protection chain.

On the I/O side, the DS200SHVMG1AFE interfaces with field-mounted speed sensors, proximity probes, and vibration transducers. These signals are conditioned and passed to the Mark V’s DS200IOCAG1A I/O Controller Board, which aggregates analog and digital inputs from across the turbine skid. For facilities running parallel gas and steam turbines, the DS200SDCIG2A Speed and Direction Control Interface complements the SHVM module by handling shaft speed discrimination and direction logic.

Power integrity is equally critical. The Mark V panel relies on the DS200DCFBG1BEC DC/DC Converter and Filter Board to deliver clean, regulated DC power to all logic boards — including the DS200SHVMG1AFE — even when the plant’s auxiliary power bus experiences transient sags or surges. In high-EMI environments such as those near large variable frequency drives (VFDs), motor control centers (MCCs), or high-voltage switchgear, the power filtering capability of this board is indispensable.

Communication integrity between the Mark V and plant-level DCS or SCADA systems is maintained through the DS200CPCBG1A Communication Processor Board, which supports IONET and Modbus RTU protocols. For facilities integrating the Mark V into a broader GE Proficy iFIX or third-party DCS environment, this communication layer ensures that the vibration and speed data captured by the DS200SHVMG1AFE is available in real time at the operator workstation. Safety interlock outputs are routed through dedicated DS200SDCCG1A Safety and Discrete Control Boards, which enforce hardwired trip logic independent of software state — a critical layer of protection in SIL-rated applications.

Application in Critical Infrastructure

The GE DS200SHVMG1AFE is deployed across some of the world’s most demanding industrial environments, where turbine availability directly determines operational revenue and safety compliance.

Power Generation: In combined-cycle gas turbine (CCGT) plants, the DS200SHVMG1AFE continuously monitors rotor speed and bearing vibration on GE Frame 6B, 7E, and 9E gas turbines. Any deviation beyond setpoint triggers a controlled shutdown sequence through the Mark V protection chain — preventing catastrophic mechanical failure and protecting both personnel and capital equipment. Plants operating under NERC CIP or IEC 62443 cybersecurity frameworks rely on the hardware-enforced trip logic of the Mark V, with the SHVM module as a primary sensor input.

Oil & Gas: On offshore platforms and onshore gas compression stations, the DS200SHVMG1AFE operates in Class I Division 2 (or Zone 2 ATEX-equivalent) adjacent environments, where flammable gas atmospheres demand zero-fault-tolerance in control electronics. The module’s robust PCB construction and conformal coating options make it suitable for installation in pressurized control enclosures that protect against salt spray, condensation, and hydrocarbon vapors.

Mining & Metals: In mine ventilation fan drives and steel mill rolling mill auxiliary turbines, the DS200SHVMG1AFE endures constant mechanical vibration from heavy rotating equipment, high ambient dust loads, and wide temperature cycling between day and night shifts. Its ability to maintain accurate speed signal acquisition under these conditions is essential for safe fan trip protection and process continuity.

Water & Wastewater Treatment: Large pumping stations and water treatment facilities using steam-driven or gas-driven turbine pumps rely on the Mark V and DS200SHVMG1AFE for continuous speed monitoring. In these applications, undetected overspeed events can result in catastrophic pump failure and extended service outages affecting municipal water supply.

Petrochemical & Refining: Fluid catalytic cracking (FCC) units, ethylene crackers, and LNG liquefaction trains operate turbine-driven compressors around the clock. The DS200SHVMG1AFE provides the real-time vibration and speed data that operators and automated protection systems need to detect early-stage mechanical degradation — enabling predictive maintenance interventions before a forced shutdown occurs.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DS200SHVMG1AFE?
All DS200SHVMG1AFE modules supplied by TOPNLMS carry a 12-month quality warranty covering manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund — no hidden conditions. Our warranty terms are aligned with standard industrial spare parts procurement practices and are documented in writing with every order.

Q2: How is each DS200SHVMG1AFE tested before shipment?
Every module undergoes a multi-stage inspection and functional test protocol prior to dispatch. This includes visual inspection for PCB damage, component integrity checks, power-on self-test verification, and where applicable, signal I/O functional testing using Mark V-compatible test fixtures. Modules that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the DS200SHVMG1AFE compatible with all Mark V panel configurations?
The DS200SHVMG1AFE is designed specifically for the GE Speedtronic Mark V platform and is compatible with standard Mark V, Mark V LM, and Mark V LSII panel configurations. Compatibility with specific turbine models (GE Frame 5, 6B, 7E, 9E, LM2500, LM6000) depends on the panel’s software revision and I/O mapping. TOPNLMS technical staff can assist with cross-referencing your panel’s bill of materials to confirm fitment before purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the DS200SHVMG1AFE?
Yes. TOPNLMS maintains standing inventory of high-demand Mark V spare parts including the DS200SHVMG1AFE and related boards. For facilities with planned maintenance schedules, annual outage requirements, or multi-site turbine fleets, we offer blanket order arrangements and priority allocation to ensure parts availability when you need them. Contact our team to discuss long-term supply agreements tailored to your maintenance program.
