GE DS200RTBAG3AEB Replacement for Mark VI Turbine

Product Overview

GE DS200RTBAG3AEB Replacement for Mark VI Turbine: Smooth Migration & Legacy System Compatibility

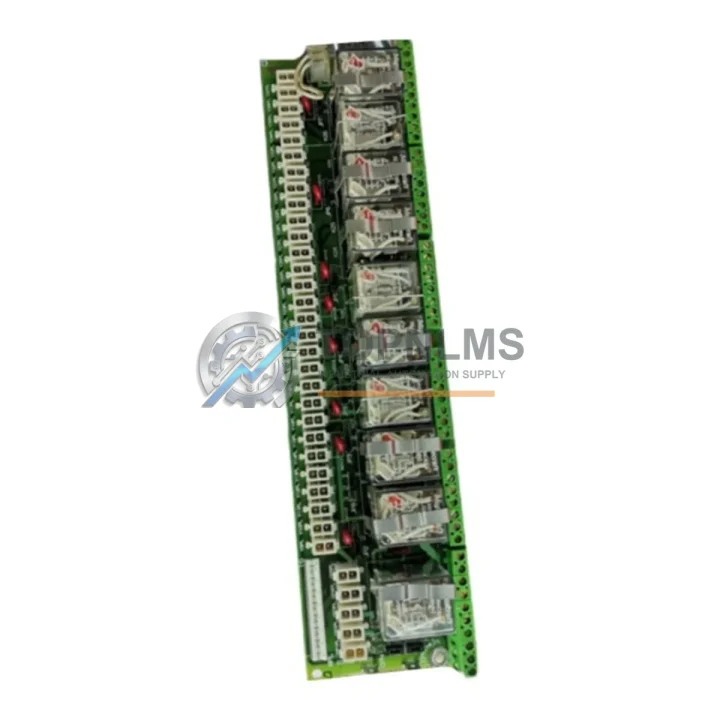

The GE DS200RTBAG3AEB is a relay terminal board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark V and early Mark VI installations approach end-of-life, plant engineers and procurement teams are actively sourcing verified replacement boards to sustain uptime without committing to a full control system overhaul. The DS200RTBAG3AEB addresses exactly this need: it provides a direct, pin-compatible upgrade path that preserves existing field wiring, I/O assignments, and communication architecture while delivering the reliability of a tested, warranted component.

Many facilities currently operating on the GE Mark V TCCA, TCCB, or TCCC controller boards are migrating incrementally to Mark VI hardware. In these hybrid migration scenarios, the DS200RTBAG3AEB serves as a critical interface layer — accepting relay output signals from the DS200SDCIG2AEB I/O pack or DS200IOCAG1A I/O terminal board and routing them to field devices such as solenoid valves, contactors, and trip relays without requiring rewiring of the existing terminal strips. This dramatically reduces migration downtime, often allowing a board swap to be completed within a planned maintenance window rather than an extended outage.

From a physical installation standpoint, the DS200RTBAG3AEB mounts directly into the standard Mark VI control cabinet backplane using the same DIN-rail and panel-mount footprint as its predecessors. Engineers replacing a failed or obsolete relay board do not need to modify cabinet cutouts, cable trays, or conduit routing. The board interfaces with the DS200TCQAG1BHF turbine control card via the standard Mark VI backplane connector, maintaining the same signal mapping and relay coil assignments defined in the original application configuration.

Communication compatibility is a key concern during any control system migration. The DS200RTBAG3AEB operates within the Mark VI’s IONET Ethernet-based I/O network, which means it is fully compatible with existing IS420UCSBH2A UCS controller boards and IS200TREGH1B terminal board assemblies already installed in the system. No changes to the HMI configuration, alarm mapping, or sequence-of-events logging are required when performing a like-for-like board replacement. For facilities also upgrading their operator interface, the board is equally compatible with GE ToolboxST configured HMI workstations running Mark VIe application software.

Power supply compatibility is another critical factor. The DS200RTBAG3AEB is designed to operate from the standard 125 VDC or 24 VDC relay coil supply provided by the Mark VI power distribution module, typically the DS200PCCAG1A power conditioning card. No auxiliary power supply modifications are required. The board’s relay outputs are rated for the same contact current and voltage specifications as the original assembly, ensuring that existing field device loads — including motor starters, solenoid valves, and annunciator panels — remain within specification.

For facilities managing spare parts inventory across multiple turbine units, the DS200RTBAG3AEB is a high-priority stocking item. A single board can serve as a cross-unit spare across all Mark VI-equipped gas turbines, steam turbines, or combined-cycle units on site, provided the application configuration is consistent. This reduces the total number of unique spare part numbers required and simplifies inventory management. Our stock is sourced from verified supply channels, inspected prior to shipment, and shipped with full traceability documentation to support your maintenance records and audit requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark VI relay board migration rarely involves a single component. In practice, the DS200RTBAG3AEB replacement is most effective when coordinated with the surrounding system architecture. During commissioning, engineers typically verify the integrity of the DS200SDCIG2AEB servo driver and I/O pack, which provides the digital output signals that drive the relay coils on the terminal board. If the servo driver card shows signs of wear or firmware incompatibility, replacing it in the same maintenance window eliminates a common source of nuisance trips after board swap.

The DS200IOCAG1A I/O terminal board is another component frequently addressed during Mark VI relay board migrations. It handles analog and digital I/O routing between the controller and field instruments, and its terminal assignments must be verified against the DS200RTBAG3AEB relay output mapping to ensure correct signal continuity. Similarly, the IS200TREGH1B terminal board — used in many Mark VI excitation and protection circuits — should be inspected for contact wear if the relay board replacement is being driven by a protection system fault.

For facilities upgrading communication infrastructure alongside the relay board, the IS420UCSBH2A UCS board provides the IONET interface that links the relay terminal board to the Mark VI controller. Ensuring this board is running current firmware is a standard step in any Mark VI migration checklist. On the power supply side, the DS200PCCAG1A power conditioning card should be verified for output voltage stability, as relay coil supply fluctuations are a known cause of premature relay contact wear.

Facilities performing a broader control cabinet refresh may also be sourcing the DS200TCQAG1BHF turbine control card and IS200UCVEH2A VME controller board as part of the same project scope. Coordinating procurement of these items together — rather than sourcing them individually as failures occur — reduces total project cost and ensures firmware and hardware revision compatibility across the Mark VI system. Our team can assist with multi-item sourcing inquiries to support your planned outage schedule.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the DS200RTBAG3AEB?
A: No. The DS200RTBAG3AEB uses the same terminal strip layout as prior Mark VI relay board revisions. Existing field wiring connections to solenoid valves, contactors, and trip relays remain in place. Only the board itself is swapped.

Q: Is reprogramming required after the board replacement?
A: No application reprogramming is required for a like-for-like replacement. The relay output assignments and logic are stored in the Mark VI controller, not on the terminal board. The replacement board is recognized automatically by the system upon power-up.

Q: Is the DS200RTBAG3AEB compatible with both TMR (Triple Modular Redundant) and Simplex Mark VI configurations?
A: Yes. The board is compatible with both TMR and Simplex Mark VI architectures. Verify the system configuration in ToolboxST before installation to confirm the correct slot assignment.

Q: What communication protocols does this board support?
A: The DS200RTBAG3AEB operates within the Mark VI IONET Ethernet I/O network. It does not require independent protocol configuration — communication is managed by the IS420UCSBH2A UCS controller board.

Q: How much physical space is required for installation?
A: The board uses the standard Mark VI panel-mount footprint. No cabinet modifications, additional DIN rail sections, or cable management changes are required.

Q: Can this board replace units from earlier Mark VI hardware revisions (e.g., Rev 1 or Rev 2)?
A: In most cases, yes. The 3AEB revision is backward compatible with earlier relay terminal board revisions within the Mark VI platform. We recommend verifying the backplane connector revision and relay coil voltage specification against your system documentation before installation.

Warranty Assurance

Every GE DS200RTBAG3AEB unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a pre-dispatch inspection covering visual integrity, connector condition, relay contact continuity, and component-level verification against known failure modes for this board type. Units that do not pass inspection are not shipped.

In the event of a warranty claim, our after-sales team responds within one business day to assess the fault and initiate the replacement process. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available to minimize your downtime exposure. We maintain buffer stock of high-demand Mark VI boards specifically to support rapid warranty replacements without lead-time delays.

For procurement teams requiring documentation, we provide a shipment inspection report, packing list, and warranty certificate with every order. These documents are formatted to support your internal maintenance management system (MMS) and spare parts register entries. Volume procurement agreements and consignment stocking arrangements are available for facilities managing multiple turbine units or operating under long-term maintenance contracts.

To place an order, request a quotation, or discuss multi-unit sourcing, contact our technical sales team directly.
