GE DS200RTBAG2AHC Original Industrial Spare Mark V Compatible

Product Overview

GE DS200RTBAG2AHC Original Industrial Spare Mark V Compatible: Ensuring System Stability in Critical Turbine Control Applications

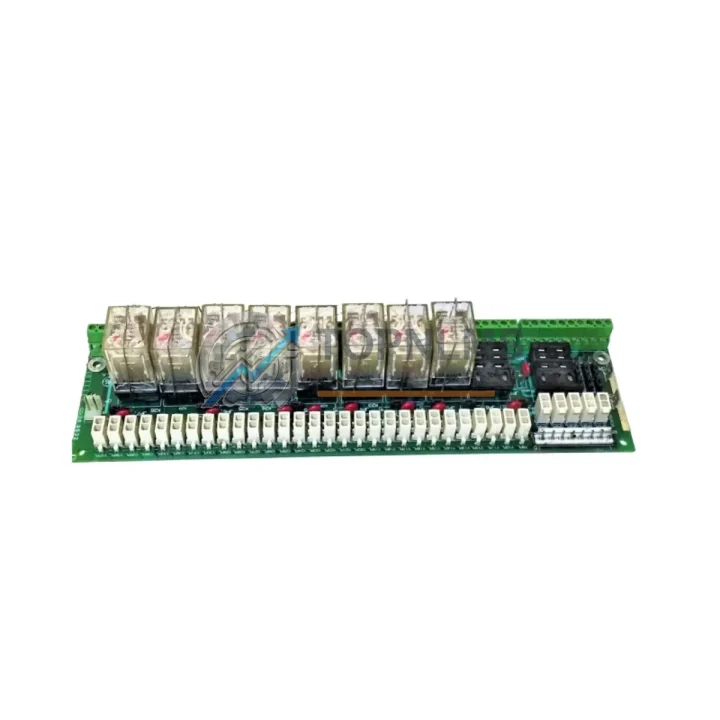

The GE DS200RTBAG2AHC is an original relay terminal board engineered for the General Electric Mark V Speedtronic turbine control system — one of the most widely deployed gas turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark V installations continue to operate well beyond their original design lifecycle, maintaining a reliable inventory of original spare parts like the DS200RTBAG2AHC is no longer optional — it is a core pillar of any responsible preventive maintenance strategy.

When a relay terminal board fails in a Mark V Speedtronic cabinet, the consequences extend far beyond a single component. The entire turbine control loop — including I/O signal routing, relay switching, and inter-board communication — can be disrupted, triggering unplanned shutdowns, costly emergency maintenance windows, and significant production losses. Having a verified, tested DS200RTBAG2AHC on the shelf means your maintenance team can execute a rapid board swap and restore full system operation within hours rather than days.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Mark V Speedtronic System

A scheduled inspection of your Mark V Speedtronic control cabinet should never focus on a single board in isolation. The DS200RTBAG2AHC relay terminal board operates as part of an integrated signal chain, and its reliability is directly influenced by the condition of adjacent components. During any planned maintenance window or annual outage, maintenance engineers should simultaneously inspect and — where age or wear indicators are present — proactively replace the following components to avoid cascading failures:

The DS200TCQAG1BHF TCQA processor board governs the core control logic that drives relay output commands to the DS200RTBAG2AHC. A degraded TCQA board can produce erratic relay switching behavior that is often misdiagnosed as a terminal board fault. Similarly, the DS200SDCCG3A SDCC control card manages sequence-of-events and discrete I/O coordination — any firmware corruption or contact wear on this card will directly affect relay terminal board performance.

Power integrity is equally critical. The DS200PCCAG1ABB power supply board provides regulated DC power to the Mark V rack; voltage ripple or dropout events are a leading cause of premature relay contact wear on the DS200RTBAG2AHC. Inspecting and replacing aging power supply boards during the same maintenance cycle eliminates a common root cause of repeat relay board failures.

On the I/O side, the DS200IOCAG1A I/O controller board and DS200DSPCH1A digital signal processor card handle analog and digital signal conditioning upstream of the relay terminal board. Degraded signal quality from these boards — due to capacitor aging, connector oxidation, or firmware issues — can cause false relay trips and nuisance alarms. Replacing these boards as a matched set with the DS200RTBAG2AHC ensures the entire signal path is restored to original specification.

Do not overlook passive components. Mark V terminal block assemblies and field wiring connectors on the relay terminal board are subject to contact resistance increase over years of thermal cycling. Cleaning or replacing these connectors during the same outage prevents intermittent faults from reappearing after the board swap. The DS200TCDAG1AHF TCDA board — responsible for turbine dynamics and acceleration control — should also be inspected, as its output signals feed directly into relay sequencing logic.

For facilities running extended Mark V lifecycles, a comprehensive spare parts kit should also include the DS200EXPSG1AEB expansion power supply, DS200RTBAG1AHC relay terminal board (the predecessor revision, useful for cross-reference and compatibility verification), and Mark V communication gateway modules that bridge legacy Speedtronic networks to modern SCADA or DCS infrastructure. Maintaining these components in bonded warehouse stock — tested and ready for immediate deployment — is the single most effective strategy for reducing mean time to repair (MTTR) in aging turbine control systems.

Strategic Replacement Solutions: Extending Mark V System Life

The GE Mark V Speedtronic platform has been out of active production for over two decades, yet thousands of units remain in service globally. OEM support has been discontinued, and lead times for new-build replacements — where available — can exceed 26 weeks. The DS200RTBAG2AHC sourced through TOPNLMS provides a direct, pin-compatible, original-specification replacement that requires no firmware modification, no cabinet re-wiring, and no recalibration of the control system.

This is the critical advantage of sourcing original GE boards rather than third-party remanufactured alternatives: the DS200RTBAG2AHC installs into the existing Mark V rack slot, connects to the existing backplane, and is immediately recognized by the Mark V control software without any configuration changes. Maintenance teams can complete a full board swap during a planned outage window of 2–4 hours, compared to the multi-day engineering effort required for a control system migration or third-party retrofit.

For facilities managing multiple turbine units or operating in regions with extended customs clearance timelines, we recommend maintaining a minimum of two DS200RTBAG2AHC boards in local stock. This buffer inventory strategy, combined with annual functional testing of on-shelf spares, ensures that a board failure never becomes a production-stopping event. TOPNLMS supports bulk procurement inquiries and can provide volume pricing for multi-unit spare parts programs.

Support FAQ

Q1: Is the DS200RTBAG2AHC compatible with all Mark V Speedtronic cabinet configurations?
The DS200RTBAG2AHC is designed for the GE Mark V Speedtronic platform and is compatible with standard Mark V relay output slots. Compatibility should be verified against your specific cabinet revision and I/O configuration drawing before installation. Contact our technical team with your cabinet serial number for confirmation.

Q2: What testing is performed before shipment?
Every DS200RTBAG2AHC unit undergoes functional testing prior to dispatch, including relay contact continuity verification, backplane connector inspection, and visual PCB examination for component damage or corrosion. A test report is available upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q4: How should the DS200RTBAG2AHC be stored as a long-term spare?
Store in original anti-static packaging in a climate-controlled environment (15°C–25°C, relative humidity below 60%). Avoid exposure to direct sunlight, corrosive atmospheres, or electromagnetic fields. Annual functional testing of stored spares is recommended to verify readiness before a critical maintenance event.
