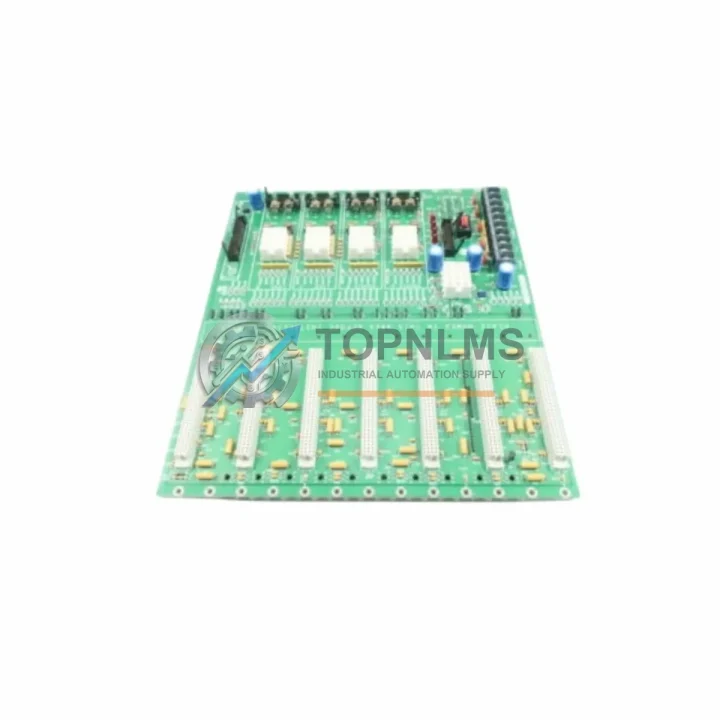

GE DS200QTBDG1AAA Ruggedized Discrete I/O Terminal Board

Product Overview

GE DS200QTBDG1AAA Ruggedized Discrete I/O Terminal Board: Industrial Resilience for Harsh Environments

The GE DS200QTBDG1AAA is a Discrete Contact I/O Terminal Board engineered as a core component of the GE Mark VI Speedtronic Turbine Control System. Designed to operate reliably in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining sites, and electromagnetically noisy power generation plants — this terminal board delivers the signal integrity and structural durability that mission-critical control systems demand.

As a discrete I/O interface module, the DS200QTBDG1AAA serves as the physical connection point between field-level sensors, actuators, and the Mark VI controller core. It handles discrete contact inputs and outputs with precision, ensuring that every digital signal — from emergency shutdown triggers to valve position feedback — is transmitted without corruption or delay. In continuous production environments such as gas turbine power plants, combined-cycle facilities, and petrochemical processing units, even a single missed signal can cascade into costly downtime or a safety incident. The DS200QTBDG1AAA is built to prevent exactly that.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200QTBDG1AAA does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical Mark VI turbine control cabinet, it works in concert with the DS200VCMIG2AEB VCMI Communication Board, which manages inter-module communication across the IONet network. The DS200VPROG1AEE VPRO Protection Module provides the overspeed and flame detection logic that depends on clean discrete signal inputs from the terminal board. Alongside these, the DS200DTBCG1AAA Discrete Terminal Board and DS200TBQCG1AEB Quad Terminal Board serve complementary I/O expansion roles within the same control enclosure.

For power conditioning and system stability, the Mark VI architecture typically incorporates the DS200PCCAG1AEB Power Supply Board and associated DC bus distribution components. Reliable 24 VDC and 28 VDC rail integrity is essential for the DS200QTBDG1AAA to maintain contact signal accuracy, particularly in environments with fluctuating grid power or diesel generator backup systems. In facilities where electromagnetic interference from large motors, variable frequency drives (VFDs), or high-voltage switchgear is a concern, proper grounding of the terminal board and its associated cable shields is critical — a practice well-supported by the Mark VI’s structured wiring and terminal block design.

The board also interfaces with field devices through robust terminal connections compatible with standard industrial wiring practices. When paired with the DS200TCCBG1ADB Thermocouple Terminal Board and DS200TCQCG1AEE Quad Thermocouple Board, the Mark VI system achieves comprehensive analog and discrete signal coverage across the turbine’s sensor network. Safety relay modules and hardwired emergency stop circuits connect through the discrete I/O layer, making the DS200QTBDG1AAA a linchpin in the plant’s safety instrumented system (SIS) interface.

Application in Critical Infrastructure

The GE DS200QTBDG1AAA is deployed across some of the world’s most demanding industrial sectors. In oil and gas facilities — including offshore platforms, LNG terminals, and onshore compression stations — the Mark VI system governs gas turbine-driven compressors and generators where unplanned shutdowns carry enormous financial and safety consequences. The terminal board’s robust contact I/O handling ensures that emergency shutdown (ESD) signals, valve position feedbacks, and flame detector outputs are processed with zero ambiguity.

In power generation plants, both combined-cycle and simple-cycle configurations rely on the Mark VI to manage turbine start sequences, load control, and protective trips. The DS200QTBDG1AAA sits at the heart of this logic, interfacing with field-mounted limit switches, proximity sensors, and relay outputs that govern fuel valve actuation and cooling system control. Any degradation in the terminal board’s contact integrity can trigger nuisance trips or, worse, mask a genuine fault condition.

In mining and mineral processing operations, where heavy vibration, airborne particulates, and wide temperature swings are the norm, the Mark VI’s modular architecture allows the DS200QTBDG1AAA to be replaced rapidly during scheduled maintenance windows without requiring full system reconfiguration. This hot-swap-friendly design philosophy minimizes mean time to repair (MTTR) and keeps production lines running.

Water treatment and municipal utilities increasingly rely on GE Speedtronic-controlled turbine generators for backup and peak-shaving power. The DS200QTBDG1AAA’s reliable discrete I/O performance ensures that generator protection relays, breaker status signals, and auxiliary equipment interlocks are faithfully represented in the control system at all times.

In metallurgical and steel production environments, where continuous casting lines and rolling mills demand uninterrupted power, the terminal board’s ability to withstand high ambient temperatures and electromagnetic noise from large induction furnaces and rectifier banks makes it an indispensable spare part to maintain on-site.
