GE DS200PCCAG7ACB Replacement/Upgrade for Mark V Speedtronic

Product Overview

GE DS200PCCAG7ACB Replacement/Upgrade Solution for Mark V Speedtronic: Smooth Transition from Legacy Turbine Control Systems

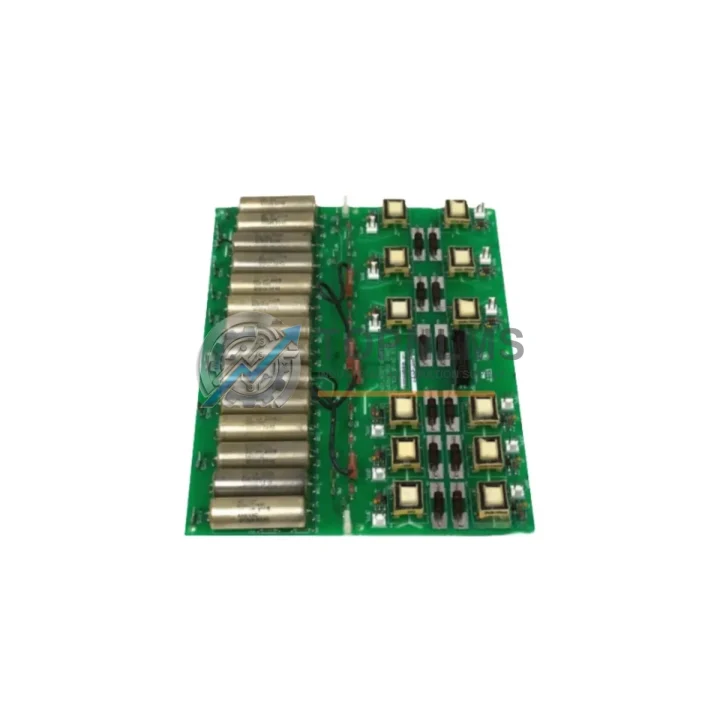

The GE DS200PCCAG7ACB is a Power Connect Board designed for the GE Mark V Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As the Mark V platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source reliable, drop-in replacement boards that preserve existing wiring infrastructure, communication architecture, and control logic without triggering a full system overhaul.

TOPNLMS supplies the DS200PCCAG7ACB as a direct replacement and upgrade solution for facilities currently operating Mark V Speedtronic panels. Each unit is sourced, inspected, and dispatched from our Xiamen warehouse with a 12-month warranty, supporting your maintenance team through the full retrofit cycle — from bench testing to live commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V Speedtronic retrofit rarely involves a single board in isolation. In practice, the DS200PCCAG7ACB Power Connect Board operates within a tightly integrated control architecture. During planned maintenance windows or emergency replacements, plant teams frequently address adjacent components in the same panel to reduce future downtime risk.

The DS200PCCAG7ACB interfaces directly with the DS200TCQAG1BHF Turbine Control Quad Board, which handles I/O sequencing and trip logic. If the power connect board has failed due to voltage transients, it is prudent to inspect the TCQA board simultaneously, as both share the same backplane power rail. Similarly, the DS200SDCCG3A Speed Detector Card relies on stable power distribution from the PCC board — a degraded DS200PCCAG7ACB can manifest as erratic speed signal faults before the board fails outright.

For facilities upgrading from Mark IV to Mark V architecture, the migration typically involves replacing the legacy DS200DSPCH1A Digital Signal Processor Card alongside the power connect board, as the older DSP card is incompatible with the Mark V ARCNET communication bus. The DS200EXPSG1AED Expander Board is another common co-replacement item, particularly in multi-turbine installations where I/O expansion was added incrementally over the system’s service life.

Communication integrity during the upgrade is maintained through the DS200IOCAG1A I/O Controller Board, which manages the interface between the Mark V processor cards and field wiring terminals. Technicians performing the DS200PCCAG7ACB swap should verify that the IOCA board’s terminal block assignments remain consistent with the existing wiring schedule — no re-termination is required in a like-for-like replacement scenario.

Where the control cabinet also houses a DS200TBQCG1AAA Terminal Board for thermocouple or RTD inputs, the power connect board replacement can be completed without disturbing field signal wiring. The terminal board’s screw-terminal interface remains fully compatible. For sites that have integrated a DS200SLCCG3A Simplex LAN Communication Card for HMI connectivity or historian data logging, the SLCC board continues to operate normally following the PCC board swap, as it draws power independently from the panel’s secondary 24 VDC rail.

In turbine control cabinets where a GE Cimplicity HMI workstation or a third-party SCADA system communicates with the Mark V via the DS200TCDAG1A Turbine Control Display Board, the upgrade path is straightforward: replace the DS200PCCAG7ACB, restore panel power in sequence, and verify communication handshake on the ARCNET segment before returning the unit to automatic control. No changes to the HMI tag database or OPC server configuration are required.

Retrofit Guidance FAQ

Q: Does replacing the DS200PCCAG7ACB require rewiring the control cabinet?
A: No. The DS200PCCAG7ACB is a direct slot-in replacement for the Mark V Speedtronic rack. All existing wiring harnesses, terminal block connections, and backplane connectors remain undisturbed. The board slides into the designated card slot and connects via the standard Mark V edge connector — no field wiring modifications are required.

Q: Will the existing turbine control program need to be reloaded or modified?
A: No application logic changes are required. The DS200PCCAG7ACB is a hardware component that does not store turbine-specific application code. Your existing Mark V application software, sequence logic, and trip setpoints remain resident in the processor cards (TCCA/TCCB/TCCC) and are unaffected by the power connect board replacement.

Q: Is the DS200PCCAG7ACB compatible with both simplex and TMR (Triple Modular Redundant) Mark V configurations?
A: Yes. The Power Connect Board is used across both simplex and TMR Mark V panel configurations. In TMR systems, each controller (R, S, T) has its own PCC board. Replacement of one board in a TMR system can be performed online with the turbine running, provided the remaining two controllers are healthy and voting correctly.

Q: What communication protocols does the Mark V system use, and is the replacement board compatible?
A: The GE Mark V Speedtronic uses ARCNET for inter-board communication and RS-422 serial links for HMI and external system interfaces. The DS200PCCAG7ACB replacement unit is fully compatible with both protocols. No protocol configuration changes are required after installation.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installing the DS200PCCAG7ACB, restore panel power and observe the Mark V diagnostic display for fault codes. A healthy PCC board will show no power-related alarms on the diagnostic screen. Verify that all downstream I/O boards are receiving correct supply voltages using the Mark V toolbox software or a calibrated multimeter at the backplane test points.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in our Xiamen warehouse and typically ship within 1–3 business days of order confirmation. We support DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard.

Warranty Assurance

Every DS200PCCAG7ACB unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment inspection protocol that includes visual examination for component damage, connector integrity verification, and where test equipment permits, functional power-on testing.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or issue a credit note at our discretion. Warranty claims are processed within 5 business days of receiving the returned unit and a completed fault report. Our after-sales team is reachable via email and phone to support your maintenance engineers through fault diagnosis, installation queries, and commissioning verification.

For procurement teams managing critical spare inventories, we offer consignment stock arrangements and blanket purchase order agreements for high-usage Mark V components. Volume pricing is available for orders of 3 or more units of the same part number.

TOPNLMS is committed to reducing unplanned turbine downtime for power generation and industrial facilities globally. Our inventory of GE Mark V Speedtronic spare parts — including power connect boards, I/O cards, processor boards, and communication modules — is maintained to support both emergency breakdown response and planned maintenance schedules.
