GE DS200LPPAG1A Replacement for Mark V DS200 Series: Smooth Migration from Legacy Turbine Control Systems

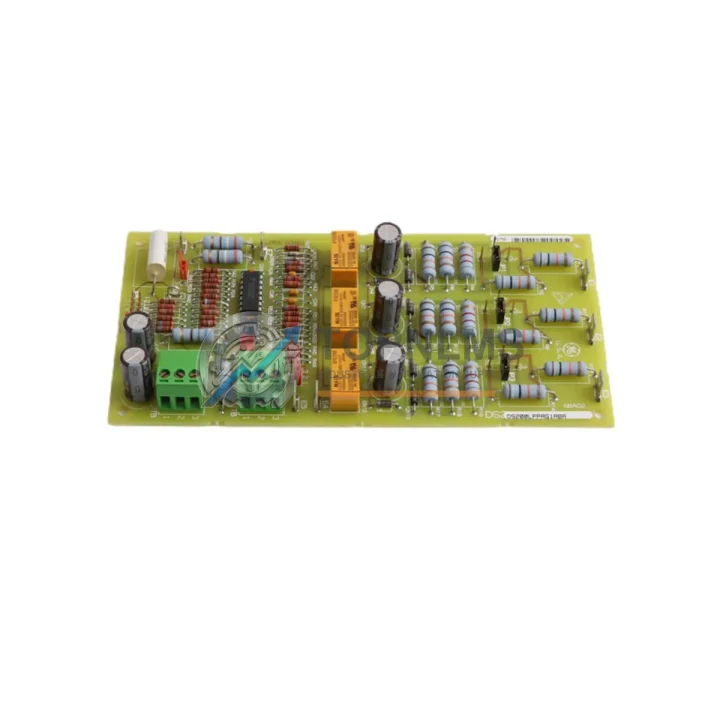

The GE DS200LPPAG1A is a Line Protection Board designed for the GE Speedtronic Mark V turbine control platform, operating within the DS200 Series modular architecture. As GE progressively phases out Mark V hardware in favor of Mark VI and Mark VIe systems, many power generation facilities, petrochemical plants, and industrial turbine operators face the critical challenge of sourcing verified replacement boards to maintain uptime without committing to a full control system overhaul. TOPNLMS maintains ready stock of the DS200LPPAG1A to support both emergency replacement and planned migration projects, with same-week dispatch from our Xiamen warehouse.

The DS200LPPAG1A integrates directly into the Mark V TCCA, TCCB, and TCCC core processor panels, providing line protection logic, signal conditioning, and fault isolation functions that are critical to turbine trip and protection sequences. Its board-level pinout, backplane connector layout, and I/O signal mapping are fully compatible with the original GE factory specification, allowing direct swap without rewiring or panel modification in the vast majority of retrofit scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200LPPAG1A replacement is rarely a standalone board swap — it is part of a broader Mark V system health check or phased migration. During the same maintenance window, engineers commonly address adjacent components to eliminate latent failure risks and restore full system redundancy.

The DS200TCQAG1A Turbine Control Board and DS200TCQBG1A are the most frequently co-replaced boards alongside the DS200LPPAG1A, as they share the same TCCA/TCCB panel and are subject to identical aging conditions — capacitor degradation, solder joint fatigue, and EEPROM wear. Replacing these boards together during a planned outage eliminates the risk of a second unplanned shutdown within the same maintenance cycle.

The DS200SDCIG2A Speed and Dynamics Control Board governs turbine speed reference and acceleration ramp logic. In systems where the DS200LPPAG1A has triggered nuisance trips, the SDCI board is often implicated in signal cross-interference and should be inspected or replaced concurrently. Similarly, the DS200DSPCH1A Digital Signal Processor Board handles high-speed analog input processing and is a common source of intermittent fault codes that mimic line protection failures.

For facilities upgrading communication infrastructure alongside the board replacement, the DS200SIOBH1A Serial I/O Board provides the ARCNET and RS-422 interface layer between the Mark V core and remote I/O panels. Ensuring this board is in good condition is essential before commissioning a replaced DS200LPPAG1A, as a degraded SIOB can mask successful board replacement with persistent communication alarms.

Power integrity is equally critical. The DS200PCCAG1A Power Conditioning and Control Board regulates the backplane supply rails that the DS200LPPAG1A depends on. A failing PCCA board can cause repeated protection board failures and is frequently overlooked during fault diagnosis. Replacing or bench-testing the PCCA before installing the new DS200LPPAG1A is strongly recommended.

For sites undertaking a partial migration from Mark V to Mark VIe, the IS420ESWBH3A Ethernet Switch Module and IS200TREGH1B Turbine Regulation Board are commonly introduced as part of the upgraded I/O and communication backbone, while legacy DS200 boards like the DS200LPPAG1A continue to serve in non-upgraded panel sections during the transition period. TOPNLMS supplies both legacy DS200 Series boards and current Mark VIe components to support phased migration strategies without forcing a full cutover.

Terminal block assemblies, DIN rail mounting hardware, and shielded signal cables compatible with the Mark V panel wiring standard are available upon request to complete the installation kit.

Retrofit Guidance FAQ

Q: Can I replace the DS200LPPAG1A without modifying existing field wiring?
A: Yes. The DS200LPPAG1A connects to the Mark V system exclusively through the backplane connector. Field wiring terminates at the terminal board (TB) level and is not affected by the board swap. No rewiring is required in standard replacement scenarios.

Q: Do I need to re-download the Mark V application program after replacing this board?
A: In most cases, no. The DS200LPPAG1A does not store the turbine application program — that resides on the TCCA/TCCB core processor boards. After installing the replacement board, the Mark V system will automatically recognize it during the next power-up sequence. A functional test and trip relay verification are recommended before returning the unit to service.

Q: Is the DS200LPPAG1A compatible with both simplex and TMR (Triple Modular Redundant) Mark V configurations?
A: Yes. The DS200LPPAG1A is used in both simplex and TMR Mark V panel configurations. In TMR systems, all three protection channels (R, S, T) use identical board types, so a single DS200LPPAG1A can replace a failed board in any of the three redundant channels.

Q: What communication protocol does the DS200LPPAG1A use?
A: The board communicates internally via the Mark V ARCNET bus (also referred to as IONet in some GE documentation). No external Ethernet, Modbus, or Profibus configuration is required. The board is plug-and-play within the existing Mark V ARCNET topology.

Q: How do I verify the board is functioning correctly after installation?
A: After installation, perform a Mark V diagnostic self-test from the or

station. Check for active fault codes related to the LPPAG board address. Verify protection relay outputs using a loop tester before enabling the turbine start sequence. TOPNLMS can provide a pre-shipment test report upon request.

Q: What if the physical installation space in my panel is constrained?
A: The DS200LPPAG1A uses the standard DS200 Series PCB form factor and occupies a single backplane slot. No additional panel space is required compared to the original board. If your panel has been modified or uses a non-standard rack, contact our technical team with panel photos for a fitment assessment before ordering.

Warranty Assurance

Every DS200LPPAG1A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a multi-point outgoing inspection that includes visual examination for physical damage, component-level checks for known failure points (electrolytic capacitors, relay contacts, and connector integrity), and a functional power-on test where applicable.

If a board is found to be defective within the warranty period, TOPNLMS will provide a replacement unit or full refund at the customer’s discretion. Our standard lead time for warranty replacements is 3–5 business days from receipt of the returned unit. Expedited replacement with advance shipment is available for critical production environments — contact our sales team to arrange.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide as standard carrier options. Export documentation, commercial invoices, and packing lists are prepared to comply with customs requirements for industrial electronic components. Typical transit times are 3–7 business days to most destinations in Asia, Europe, the Middle East, and the Americas.

For procurement teams requiring formal documentation, we can provide a Certificate of Conformance, material traceability records, and a pre-shipment inspection report upon request. Net payment terms and blanket purchase order arrangements are available for qualified industrial accounts.
