GE DS200IIBDG1AEA Replacement for DS200 Series

Product Overview

GE DS200IIBDG1AEA Replacement for DS200 Series: Seamless Transition & Compatibility Upgrade

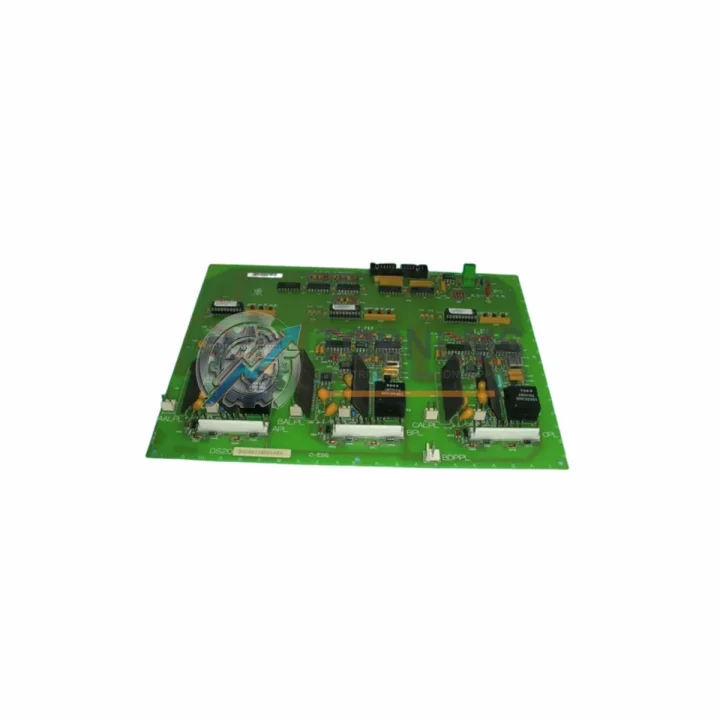

The GE DS200IIBDG1AEA is a critical IGBT Gate Driver Board designed for GE’s DS200 Series digital drive control platform, widely deployed in industrial motor control, power conversion, and process automation systems. As legacy DS200 drive systems approach end-of-life or encounter component failures, sourcing a verified replacement for the DS200IIBDG1AEA has become a top priority for maintenance engineers and procurement teams worldwide. TOPNLMS stocks this board with full functional testing, ensuring a smooth, low-risk migration from a failed or obsolete unit back to full operational status — with minimal disruption to your production line.

Whether you are replacing a failed gate driver in an existing GE Mark V, Mark VI, or EX2100 excitation control cabinet, or upgrading a legacy drive rack to restore redundancy, the DS200IIBDG1AEA integrates directly into the original backplane without requiring rewiring or firmware reconfiguration. The board interfaces with the DS200 Series fiber-optic IGBT firing circuit, maintaining the same optical signal timing and gate pulse characteristics as the original factory unit. Engineers migrating from older DS215IIBDG1AZZ01A or DS200IIBDG1AEB variants will find the DS200IIBDG1AEA to be a functionally equivalent drop-in, with identical connector pinouts and the same 24 VDC auxiliary power input requirement.

In retrofit scenarios involving GE LCI (Load Commutated Inverter) systems or large synchronous motor drives, the DS200IIBDG1AEA is commonly replaced alongside the DS200SDCIG2A power supply board and the DS200TCQAG1BHF control card. Coordinating these replacements in a single maintenance window significantly reduces total downtime compared to sequential part-by-part troubleshooting. Our team can advise on the recommended replacement sequence based on your drive topology and fault history.

For plants running GE Speedtronic turbine control systems, the DS200IIBDG1AEA is often found in the power conversion section of the Mark VI control cabinet. When replacing this board, technicians should also inspect the DS200DSPCH1A digital signal processor card and the DS200TCDAG1AAA analog I/O terminal board for signs of thermal stress or capacitor aging, as these components share the same power rail and are subject to similar wear cycles. Replacing the gate driver without addressing upstream signal integrity issues can result in repeat failures within a short interval.

Communication protocol compatibility is fully preserved with the DS200IIBDG1AEA replacement. The board operates within the DS200 Series internal VME-style backplane bus and does not require any changes to the Modbus RTU, Profibus DP, or DeviceNet configurations already programmed into the host controller. If your system uses a DS200SLCCG3AEB serial link control card for fieldbus communication, no reconfiguration is needed after swapping the gate driver board. This is a significant advantage over third-party alternatives that may require gateway adapters or protocol converters.

Physical installation is straightforward. The DS200IIBDG1AEA occupies a standard DS200 Series card slot and is secured with the same captive screw mechanism used across the DS200 platform. No additional mounting hardware, DIN rail adapters, or panel cutouts are required. The board’s thermal footprint is identical to the original, so existing heatsink arrangements and airflow paths within the control cabinet remain valid. For cabinets with tight clearance, the board can be pre-tested on a bench using a DS200 Series extender card before final installation.

Procurement teams will appreciate that TOPNLMS maintains ready stock of the DS200IIBDG1AEA, with same-day dispatch available for orders placed before 14:00 CST. Each unit undergoes a multi-point functional test covering gate pulse output, fiber-optic transceiver integrity, auxiliary power regulation, and thermal cycling before shipment. Units are shipped in anti-static packaging with individual test records included. For customers requiring expedited delivery to minimize production downtime, DHL Express and FedEx International Priority options are available to most destinations within 3–5 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200IIBDG1AEA replacement is rarely a single-board exercise. In most GE DS200 Series drive cabinets, the gate driver board works in close coordination with several other critical components. The DS200SDCIG2A power supply board provides the regulated DC rails that the gate driver depends on; a degraded power supply is a common root cause of repeated gate driver failures and should be inspected or replaced concurrently. The DS200TCQAG1BHF control card manages the high-level drive logic and communicates firing commands to the DS200IIBDG1AEA via the backplane — if the control card has logged persistent fault codes, replacing the gate driver alone may not resolve the underlying issue.

For systems using external I/O expansion, the DS200TCDAG1AAA analog I/O terminal board and the DS200DSPCH1A digital signal processor card are frequently part of the same maintenance scope. Engineers upgrading from a Mark V to a Mark VI architecture will also need to evaluate the DS200SLCCG3AEB serial link control card to ensure fieldbus continuity across the migration. In cabinet configurations where the DS200IIBDG1AEA is mounted adjacent to a DS200TCEAG1BHF VME termination board, both boards should be inspected for connector oxidation before the replacement unit is installed.

Customers performing a broader drive system modernization — for example, migrating from a GE Drive to a newer Rockwell PowerFlex 755 or Siemens SINAMICS S120 platform — may require signal isolation modules and protocol gateways to bridge legacy DS200 I/O wiring to the new control architecture. TOPNLMS can supply compatible signal isolators, terminal block adapters, and programming cables to support the full scope of your retrofit project, reducing the number of vendors involved and simplifying procurement logistics.

Retrofit Guidance FAQ

Q: Do I need to rewire the cabinet when installing the DS200IIBDG1AEA?
A: No. The DS200IIBDG1AEA uses the same connector pinout and backplane interface as the original unit. No rewiring is required for a like-for-like replacement within the DS200 Series platform.

Q: Will my existing PLC program or drive configuration need to be modified?
A: No program changes are required. The DS200IIBDG1AEA is functionally equivalent to the original board and operates transparently within the existing DS200 control architecture. All Modbus RTU, Profibus DP, and DeviceNet parameters remain valid.

Q: Is the DS200IIBDG1AEA compatible with both Mark V and Mark VI control cabinets?
A: Yes. The board is compatible with GE DS200 Series installations found in Mark V, Mark VI, and EX2100 excitation control systems. Verify the slot assignment and backplane revision with your site documentation before installation.

Q: What should I check before installing the replacement board?
A: Inspect the DS200SDCIG2A power supply output voltages, verify fiber-optic cable integrity, and confirm that the DS200TCQAG1BHF control card is not logging active faults. A clean power rail and fault-free control card are prerequisites for a successful gate driver replacement.

Q: How much physical space does the DS200IIBDG1AEA require?
A: The board occupies a standard DS200 Series card slot with identical dimensions to the original. No additional panel space, DIN rail, or mounting hardware is needed.

Q: Can I test the board before final installation?
A: Yes. Using a DS200 Series extender card, the DS200IIBDG1AEA can be bench-tested outside the cabinet to verify gate pulse output and fiber-optic transceiver function before committing to a full installation.

Warranty Assurance

Every DS200IIBDG1AEA supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol covers gate pulse output verification, fiber-optic transceiver integrity check, auxiliary power regulation test, and a thermal cycling burn-in to screen for early-life failures. Each board ships with an individual test record documenting the results of these checks.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection confirming that the failure is not attributable to installation error, overvoltage, or physical damage. Our after-sales response time is within 24 hours for warranty inquiries, and replacement units are dispatched within 3 business days of claim approval. We understand that unplanned downtime in industrial environments carries significant operational cost, and our warranty process is designed to minimize the time between fault identification and restored operation.

For customers requiring extended coverage or on-site support agreements, please contact our technical sales team directly. Volume procurement customers may also qualify for consignment stock arrangements, ensuring that critical DS200 Series spare parts are available on-site without capital commitment.
