GE DS200IIBDG1ADA Original Industrial Spare Mark VI Compatible

Product Overview

GE DS200IIBDG1ADA Original Industrial Spare Mark VI Compatible: System Stability & Industrial Spare Maintenance Value

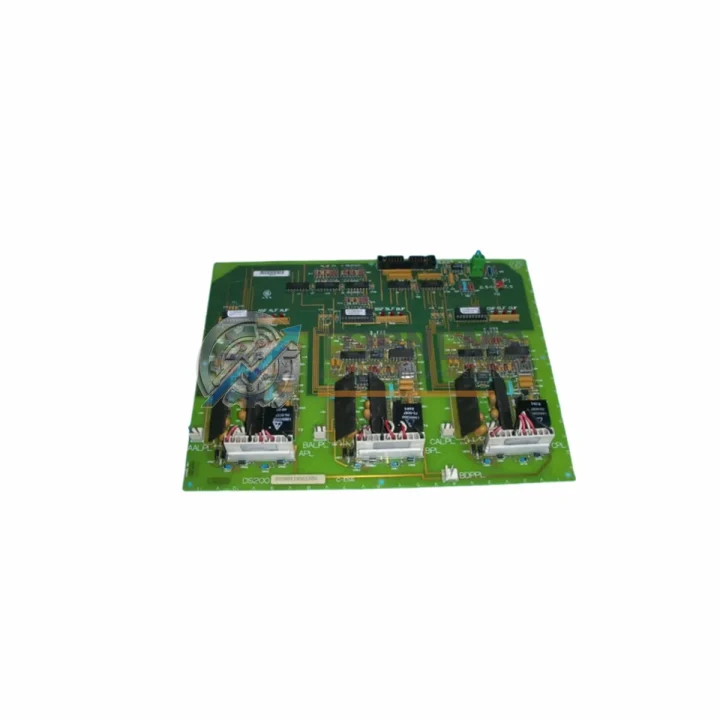

The GE DS200IIBDG1ADA is an original IGBT Gate Driver Board engineered for the GE Mark VI Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a critical interface between the control logic and the high-power switching stage, this board directly governs the firing sequence of IGBT modules in the drive output section. Its failure results in immediate turbine trip, unplanned downtime, and costly emergency procurement under pressure. Stocking a verified original DS200IIBDG1ADA as a ready spare is one of the highest-value decisions a maintenance engineer can make for long-term system stability.

At TOPNLMS, every DS200IIBDG1ADA unit is sourced from authorized channels, subjected to functional verification prior to dispatch, and backed by a 12-month warranty. We serve maintenance teams, MRO procurement departments, and system integrators who cannot afford uncertainty in their spare parts supply chain.

Critical Technical Specs

Preventive Maintenance Strategy

A turbine control cabinet is only as reliable as its weakest board. When a DS200IIBDG1ADA is flagged for replacement during a scheduled outage or unplanned trip event, experienced maintenance engineers treat the intervention as an opportunity to audit the entire Mark VI control enclosure. The gate driver board does not operate in isolation — it interfaces with upstream logic boards, power supply rails, and downstream IGBT modules, all of which are subject to the same thermal cycling, vibration, and electrical stress over years of continuous operation.

During the same maintenance window, it is standard practice to inspect the DS200SDCCG1A (Speed and Dynamics Control Card), which coordinates turbine speed reference signals that feed directly into the gate driver logic. A degraded SDCC card can produce erratic firing commands that accelerate gate driver wear. Similarly, the DS200TCQAG1BHF (Turbine Control I/O Board) should be checked for contact integrity and signal accuracy, as corrupted I/O data is a common root cause of nuisance trips that are misdiagnosed as gate driver failures.

The DS200EXPSG1ADA (Expansion Power Supply Board) supplies the regulated DC rails that the IIBDG1ADA depends on. A power supply board operating near end-of-life with marginal output voltage will stress the gate driver and shorten its service life. Replacing or bench-testing the power supply board during the same outage eliminates a hidden failure mode. Alongside this, the DS200DSPCH1A (Digital Signal Processor Card) governs the high-speed control algorithms; any firmware or hardware anomaly here can produce gate timing errors that damage the driver board downstream.

For the physical wiring harness connecting the gate driver to the IGBT module stack, inspect the DS200 series ribbon cables and gate drive interconnect cables for insulation cracking, pin corrosion, or intermittent continuity — these are frequently overlooked during board-level replacements and are a leading cause of repeat failures after a new board is installed. Terminal blocks and DS200-compatible I/O terminal assemblies within the same cabinet should also be torque-checked and visually inspected for arc tracking or discoloration.

If the Mark VI system includes a communications backbone, the DS200CPCAG1A (Communication Processor Card) should be verified for firmware version compatibility with any replacement boards introduced during the outage. Mismatched firmware revisions between the communication card and the control boards are a known source of post-maintenance instability. Finally, the IS200ESELH1A (Ethernet Switch Module) and any Mark VI HMI interface cards in the same rack should be power-cycled and diagnostics-checked as part of the return-to-service procedure.

Proactive procurement of these associated components — rather than reactive emergency sourcing — is the single most effective strategy for reducing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

The DS200IIBDG1ADA has been in service across Mark VI installations for over two decades. Many facilities are operating aging turbine control systems where OEM support has been reduced or discontinued, and where the original procurement channels no longer carry stock. In this environment, sourcing a verified original board from a specialist industrial spare parts supplier is the only reliable path to a like-for-like replacement that preserves system compatibility without requiring costly control system upgrades.

A direct board swap with a genuine DS200IIBDG1ADA eliminates the need for re-engineering the gate drive interface, avoids firmware compatibility risks associated with substitute components, and allows the turbine to return to service under the same validated control configuration. This is particularly critical in regulated industries — power utilities, LNG terminals, and petrochemical plants — where any modification to the control system architecture triggers a formal change management and re-commissioning process that can extend downtime by days or weeks.

For facilities managing multiple Mark VI or Mark VIe turbine units, establishing a minimum stock level of one DS200IIBDG1ADA per turbine train — or at minimum one shared spare per site — is a recognized best practice in turbine maintenance planning. The cost of a single unplanned outage caused by a failed gate driver board vastly exceeds the cost of maintaining a ready spare. TOPNLMS supports bulk procurement inquiries and can assist with multi-unit spare parts planning for large-scale facilities.

Support FAQ

Q1: Is the DS200IIBDG1ADA a direct drop-in replacement for all Mark VI turbine control cabinets?
The DS200IIBDG1ADA is designed as a direct replacement for existing installations using the same part number within the GE DS200 / Mark VI platform. Before installation, verify the board revision suffix and confirm compatibility with your specific cabinet configuration and firmware version using GE Mark VI documentation. Our technical team can assist with compatibility verification prior to purchase.

Q2: What pre-shipment testing is performed on each unit?
Every DS200IIBDG1ADA dispatched by TOPNLMS undergoes functional verification to confirm board integrity before shipment. Units are inspected for physical damage, component integrity, and basic electrical continuity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I validate the replacement board before returning the turbine to service?
Follow GE Mark VI commissioning procedures: perform a cold-start diagnostic sequence with the turbine isolated, verify gate drive output signals using the Mark VI diagnostic toolset (ToolboxST or equivalent), and confirm IGBT firing waveforms are within specification before releasing the unit to normal operation. Document the board serial number and installation date in your maintenance management system for warranty tracking.

Q4: Can TOPNLMS support bulk or long-term supply agreements for DS200 series spare parts?
Yes. We support MRO procurement teams with bulk orders, scheduled delivery agreements, and multi-SKU spare parts packages covering the DS200 / Mark VI ecosystem. Contact us directly to discuss volume pricing, lead times, and consignment stock arrangements tailored to your facility’s maintenance schedule.
