GE DS200DCFBG1BLC Replacement for Mark V Turbine Control

Product Overview

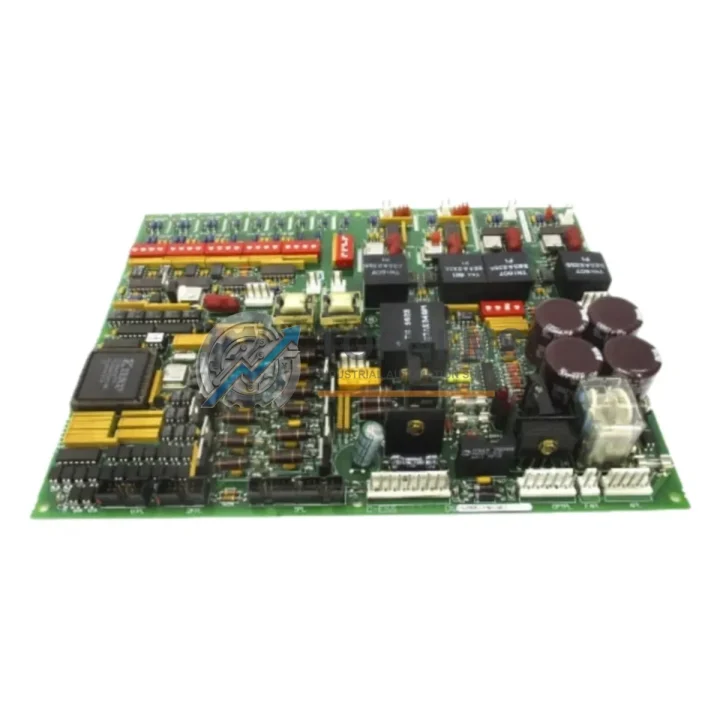

GE DS200DCFBG1BLC Replacement for Mark V Turbine Control: Seamless Transition & Compatibility Upgrade

The GE DS200DCFBG1BLC is a DC Power Supply Board designed for use within the GE Mark V Speedtronic Turbine Control System. As GE progressively phases out Mark V hardware in favor of the Mark VIe platform, many power generation facilities and industrial plants are facing the challenge of sourcing reliable, drop-in replacements for discontinued boards. The DS200DCFBG1BLC addresses this need directly — providing a functionally equivalent, fully tested replacement that minimizes engineering rework, reduces downtime, and preserves the integrity of your existing control architecture.

Whether your facility is executing a full Mark V to Mark VIe migration or simply replacing a failed board to extend the operational life of your current system, the DS200DCFBG1BLC integrates directly into the existing Mark V panel without requiring modifications to the control cabinet wiring harness or backplane connector layout. The board maintains compatibility with the standard Mark V rack mounting dimensions, allowing it to slot into the existing DS200 series card cage without mechanical adaptation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V system repair or migration rarely involves a single board. In practice, the DS200DCFBG1BLC is most often replaced alongside other components within the same control panel. During commissioning and retrofit projects, engineers frequently address the DS200TCQAG1B Quad Core Processor Board and the DS200SDCCG1A Speed Detector Card in the same service window, since these boards share the same backplane and are subject to similar aging failure modes.

For facilities upgrading communication infrastructure, the DS200IIBDG1A IONET Interface Board is commonly replaced in parallel to ensure the internal IONET bus operates reliably after the power supply board is renewed. If your Mark V panel includes a DS200TCDAG1A Analog I/O Board, it is advisable to verify its calibration status during the same maintenance cycle, as power supply degradation can cause subtle analog signal drift that persists even after the supply board is replaced.

Plants transitioning toward a hybrid Mark V / Mark VIe architecture will also need to evaluate the IS200TTURH1C Turbine Trip and Runback Board and the IS200TREGH1B Voltage Regulator Board for compatibility with the updated power distribution topology. These boards interface directly with the DC bus and must be confirmed operational before the upgraded supply board is brought online.

For field wiring and terminal adaptation, the DS200TCRAG1A Terminal Board provides the physical interface between the Mark V backplane and field I/O cables. Ensuring this terminal board is in good condition before replacing the DS200DCFBG1BLC eliminates the risk of misdiagnosing a wiring fault as a board failure. Similarly, the DS200EXPSG1A Expansion Power Supply should be inspected if the system includes extended I/O racks, as an undersized or degraded expansion supply can cause instability in the newly installed DC power board.

For sites that require programming cable access during post-replacement verification, the IC693CBL316 RS-232 Programming Cable (or equivalent Mark V serial interface cable) is essential for connecting a laptop to the Mark V CIMPLICITY HMI workstation to confirm that the control system has recognized the new board and that all diagnostic flags have cleared. This step is critical before returning the turbine to service.

Retrofit Guidance FAQ

Q: Can I replace the DS200DCFBG1BLC without modifying the existing wiring?
A: Yes. The DS200DCFBG1BLC uses the standard Mark V backplane edge connector. No field wiring changes are required. Simply power down the panel, remove the failed board, insert the replacement, and restore power. Verify all DC bus voltages at the test points before enabling the turbine control sequence.

Q: Is the DS200DCFBG1BLC compatible with both Mark IV and Mark V panels?
A: The DS200DCFBG1BLC is designed for the Mark V platform. While some DS200 series boards have limited backward compatibility with Mark IV racks, we recommend confirming the exact panel revision and backplane pinout before installation in a Mark IV environment. Contact our technical team with your panel serial number for confirmation.

Q: What communication protocols does this board support?
A: The DS200DCFBG1BLC operates on the Mark V internal IONET bus and does not require external protocol configuration. It does not directly handle Modbus, Profibus, or Ethernet — those functions are managed by dedicated communication boards within the same rack.

Q: How much physical space does the board require in the control cabinet?
A: The DS200DCFBG1BLC occupies a single slot in the standard DS200 card cage. No additional clearance or panel modification is required beyond what the original board occupied.

Q: Can the replacement board be used with the existing Mark V application program?
A: Yes. The DS200DCFBG1BLC is a hardware replacement and does not affect the application software stored in the Mark V processor. No reprogramming is required. After installation, perform a standard system diagnostic check via the HMI to confirm all I/O and power status flags are nominal.

Q: What should I check during commissioning after installation?
A: Verify DC bus output voltages at the backplane test points, confirm no fault codes are active on the Mark V diagnostic display, check that all downstream I/O boards are receiving correct supply voltages, and run a functional test of the turbine protection sequences before returning to automatic control.

Warranty Assurance

Every DS200DCFBG1BLC unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point functional inspection including visual examination for component damage, DC bus voltage output verification, backplane connector integrity check, and thermal cycling assessment where applicable.

If a board is found to be defective within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. Our after-sales response time is within 24 hours on business days. We maintain a standing inventory of DS200 series boards to support rapid exchange requests, minimizing the impact on your plant’s operational schedule.

All units are shipped with anti-static packaging, individual board identification labels, and a shipment inspection checklist. Express shipping options are available for urgent replacement requirements, with dispatch from Xiamen, China typically within 1–2 business days of order confirmation.

For procurement inquiries, technical compatibility questions, or bulk order pricing, contact our industrial automation team directly.
