GE DS200CTBAG1ACC Original Industrial Spare Mark VI Compatible: Ensuring System Stability in Gas Turbine Control

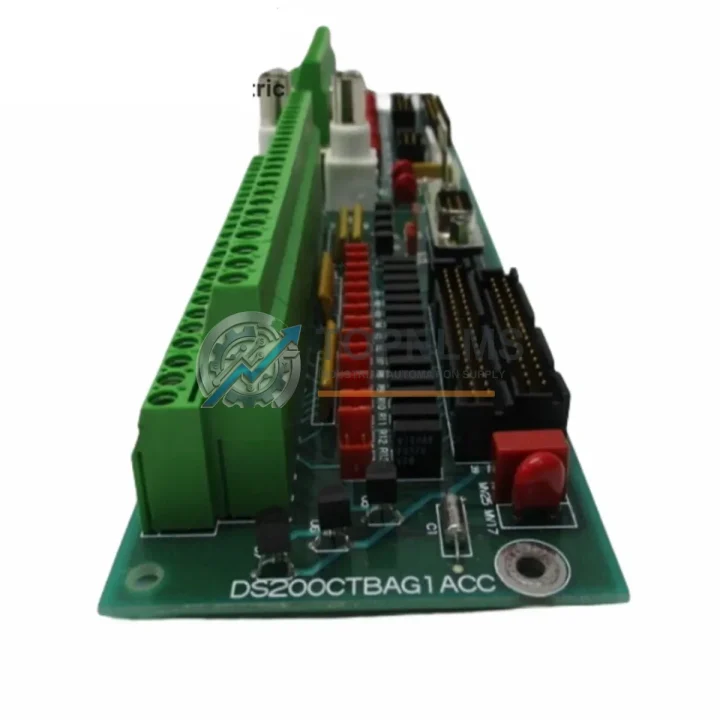

The GE DS200CTBAG1ACC is an original I/O Termination Board designed for use within the GE Speedtronic Mark VI gas turbine control platform — one of the most widely deployed turbine control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI systems continue to operate beyond their original design life, sourcing verified original spare parts like the DS200CTBAG1ACC becomes a critical pillar of any plant’s maintenance and reliability strategy.

Whether you are managing a scheduled outage, responding to an unplanned shutdown, or building a strategic spare parts inventory, the DS200CTBAG1ACC delivers the electrical compatibility, signal integrity, and mechanical fit required to restore your turbine control system to full operational status with minimal downtime.

Critical Technical Specs

Preventive Maintenance Strategy

In any gas turbine facility running the GE Mark VI platform, the DS200CTBAG1ACC termination board sits at the intersection of field instrumentation and the control system’s processing core. A failure at this termination layer — whether caused by connector corrosion, thermal fatigue, or vibration-induced trace damage — can cascade into loss of critical sensor feedback, spurious trips, or complete turbine shutdown.

A disciplined preventive maintenance program should treat the DS200CTBAG1ACC not in isolation, but as part of the broader Mark VI I/O and signal chain. During scheduled outages or annual inspections, maintenance teams are advised to simultaneously inspect and, where appropriate, replace the following associated components:

• DS200VCMIG1B / DS200VCMIG2B (VCMI Communication Module) — The primary communication interface between the Mark VI controller and the I/O termination boards. Degraded VCMI modules are a common root cause of intermittent I/O faults that are often misdiagnosed as termination board failures. Inspect ribbon cable connectors and verify firmware revision compatibility.
• DS200SDCIG2A (DC Power Supply Module) — The Mark VI control cabinet relies on redundant DC power rails. A weakening SDCI power module can introduce voltage ripple that destabilizes analog signal readings on the CTB. Measure output voltage under load during every major inspection cycle.
• DS200IOCAG1A (I/O Controller Module) — Works in tandem with the CTB to process discrete and analog field signals. When replacing the DS200CTBAG1ACC, always verify that the paired IOCA module is within its service life and that no diagnostic fault codes are latched in the Mark VI HMI.
• DS200TBCBG1A (Terminal Board) — Field wiring terminates at this board before signals are routed to the CTB. Inspect terminal screws for proper torque, check for insulation breakdown on field cables, and verify that no moisture ingress has occurred in the terminal compartment.
• DS200SLCCG3A (Servo & Load Control Card) — In turbines with active fuel valve and IGV servo control loops, the SLCC card processes position feedback signals that pass through the CTB layer. A CTB replacement should always be followed by a servo loop calibration check.
• DS200DSPXG1A (Digital Signal Processor Board) — Handles high-speed protection logic. If the DS200CTBAG1ACC is being replaced following a protection trip event, the DSPX board should be inspected for latent damage caused by the fault condition that triggered the trip.
• Mark VI Fiber Optic Communication Cables (IS200 series) — The Mark VI architecture uses fiber optic links between controller racks and remote I/O panels. Inspect fiber connectors for contamination and verify optical power levels during any CTB maintenance window.
• DS200RTBAG1A (Relay Termination Board) — Manages discrete output relay signals for auxiliary equipment control. In control cabinets where the DS200CTBAG1ACC handles mixed I/O, the RTBA relay board is often located in the same panel section and should be inspected concurrently.
• Mark VI UPS / Battery Backup Module — Uninterruptible power supply integrity is essential for safe turbine shutdown sequences. A failing UPS that allows even a brief power interruption during operation can corrupt CTB configuration data or damage sensitive analog input circuits.
• IS200TRESG1A (Turbine Rotor Excitation Signal Board) — In generator-coupled turbine applications, rotor excitation signal conditioning passes through dedicated termination boards in the same cabinet. Inspect alongside the DS200CTBAG1ACC during generator-side maintenance activities.

Stocking a minimum of one spare DS200CTBAG1ACC per turbine unit — alongside critical companion modules — is a widely adopted best practice in facilities where unplanned turbine downtime carries significant production or revenue impact. The cost of a pre-positioned spare is invariably lower than the cost of emergency procurement during an active outage.

Strategic Replacement Solutions

The GE Speedtronic Mark VI platform was introduced in the late 1990s and remains operational in thousands of power plants, LNG terminals, pipeline compressor stations, and industrial cogeneration facilities globally. While GE has transitioned newer installations to the Mark VIe architecture, the installed base of Mark VI systems is vast — and OEM support for legacy hardware continues to contract.

The DS200CTBAG1ACC represents a direct, form-fit-function replacement for failed or degraded CTB modules in existing Mark VI cabinets. Unlike third-party aftermarket alternatives, an original GE DS200CTBAG1ACC ensures:

• Full electrical compatibility with existing Mark VI backplane connectors, signal conditioning circuits, and firmware-defined I/O mapping — eliminating the risk of signal offset errors or configuration mismatches that can occur with non-OEM substitutes.
• Preservation of system certification — Many facilities operate under regulatory frameworks (IEC 61511, NFPA 85, or site-specific safety cases) that require like-for-like replacement of safety-related control hardware. Using original GE parts maintains compliance without requiring re-validation.
• Reduced commissioning time — An original CTB board slots directly into the existing cabinet without wiring modifications, jumper reconfiguration, or software parameter changes, enabling faster return-to-service after a forced outage.
• Extended system life — For facilities committed to operating their Mark VI platform for another 5–10 years, maintaining a stock of original spare boards is the most cost-effective strategy for avoiding a full control system upgrade driven by parts unavailability.

All DS200CTBAG1ACC units supplied by TOPNLMS are sourced from verified industrial channels, subjected to pre-shipment functional testing, and shipped with full traceability documentation. Each unit is covered by a 12-month warranty from the date of shipment.
