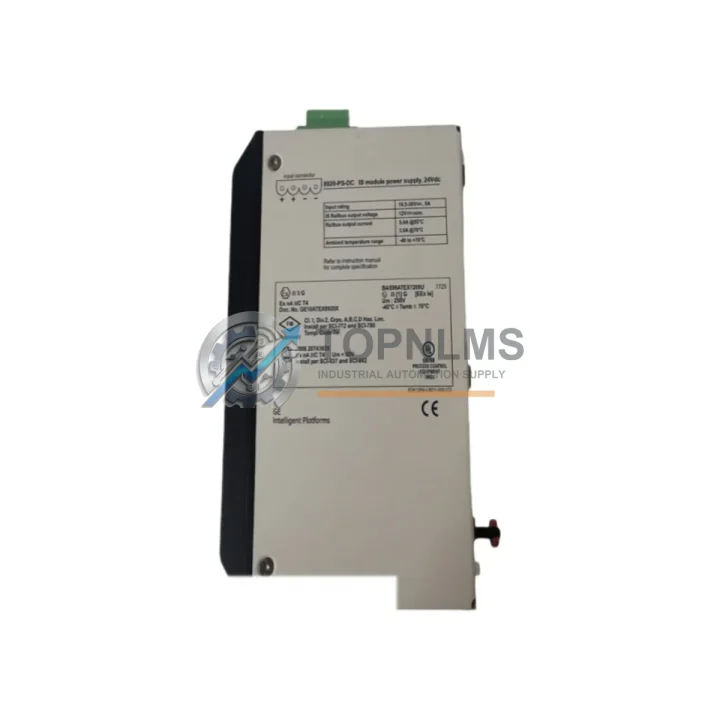

GE 8920-PS-DC-02 Ruggedized DC Power Supply Module

Product Overview

GE 8920-PS-DC-02 Ruggedized DC Power Supply Module: Industrial Resilience for Harsh Environments

The GE 8920-PS-DC-02 is a DC input power supply module engineered for the GE Series 90-30 PLC rack system — one of the most widely deployed programmable logic controller platforms in heavy industry. Designed to deliver stable, regulated DC power to the Series 90-30 backplane under demanding operational conditions, this module is a critical backbone component for control systems operating in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI).

In continuous production environments — including oil and gas processing facilities, mineral extraction sites, thermal power generation plants, municipal water treatment stations, metallurgical furnaces, and chemical processing lines — power supply integrity is non-negotiable. A single power interruption or voltage fluctuation can cascade into unplanned downtime, equipment damage, or safety incidents. The 8920-PS-DC-02 addresses this risk by providing a robust, field-proven DC power conversion solution that maintains output stability across a wide input voltage range, ensuring that the Series 90-30 CPU module, I/O modules, and communication modules continue to operate within specification even when upstream power quality is compromised.

Rugged Specifications Table

Comprehensive Protection Solutions

The 8920-PS-DC-02 does not operate in isolation — it is the power foundation upon which an entire Series 90-30 control system depends. When integrated into a properly engineered control cabinet, this power supply module works in concert with a full suite of GE Series 90-30 components to deliver system-wide reliability.

The IC693CPU364 and IC693CPU374 CPU modules draw their operating power directly from the backplane supplied by the 8920-PS-DC-02. Any instability in the power supply directly affects CPU scan cycle integrity and program execution reliability. Similarly, discrete I/O modules such as the IC693MDL645 (16-point DC input) and IC693MDL741 (16-point DC output) depend on clean backplane power to maintain accurate signal acquisition and output switching — particularly critical in safety-instrumented systems where false trips or missed signals carry operational risk.

In applications involving variable-speed drives and motor control, the Series 90-30 rack communicates with GE AF-600 FP series variable frequency drives via hardwired I/O or serial communication modules such as the IC693CMM321 (Communications Coprocessor). The power supply module ensures that these communication links remain stable even in environments with significant motor-induced EMI — a common challenge in pump stations, compressor halls, and conveyor systems.

For installations requiring analog process control, the IC693ALG221 analog input module and IC693ALG390 analog output module are frequently co-installed in the same rack. These modules are particularly sensitive to power rail noise; the regulated DC output of the 8920-PS-DC-02 provides the clean power baseline that prevents measurement drift and output instability in PID control loops governing temperature, pressure, and flow.

In safety-critical zones, the Series 90-30 rack may also interface with dedicated safety relay modules and emergency stop circuits. Pairing the 8920-PS-DC-02 with a redundant power supply configuration — using a second GE Series 90-30 power supply module in a parallel or hot-standby arrangement — is a recognized best practice for SIL-rated control loops in oil and gas and chemical processing facilities. Terminal modules and marshalling panels within the same control cabinet benefit from the stable DC bus that this power supply maintains, reducing the risk of ground loops and common-mode noise that can corrupt field signal integrity.

Application in Critical Infrastructure

The GE 8920-PS-DC-02 has established a long service record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: In upstream wellhead automation and midstream pipeline SCADA systems, the Series 90-30 platform — powered by the 8920-PS-DC-02 — controls valve actuators, pressure transmitters, and emergency shutdown (ESD) systems. The module’s tolerance for wide DC input voltage variation makes it well-suited for remote sites where power quality from solar, battery, or generator sources may fluctuate significantly.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, coal dust, and humidity. The 8920-PS-DC-02, installed in sealed control cabinets with appropriate ingress protection, maintains reliable power delivery to conveyor belt control systems, crusher automation, and ventilation fan drives — environments where unplanned downtime carries both financial and safety consequences.

Power Generation: Thermal, hydroelectric, and combined-cycle power plants rely on GE Series 90-30 systems for auxiliary equipment control, including cooling water pumps, fuel handling systems, and turbine auxiliary panels. The 8920-PS-DC-02 provides the stable DC power backbone that keeps these systems online during grid disturbances and load transients.

Water & Wastewater Treatment: Municipal water treatment facilities operate 24/7 with zero tolerance for control system failures. The 8920-PS-DC-02 supports continuous operation of SCADA-integrated Series 90-30 systems controlling dosing pumps, aeration blowers, and filtration processes — environments characterized by high humidity and chemical vapors that challenge less robust power supply designs.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and foundries generate intense electromagnetic interference from arc furnaces, induction heaters, and large motor drives. The 8920-PS-DC-02’s integrated EMI filtering and robust construction make it a preferred choice for control systems operating in close proximity to these high-interference sources.
