GE 8103AI-TX Ruggedized Analog Input Module for Harsh Environments

Product Overview

GE 8103AI-TX Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

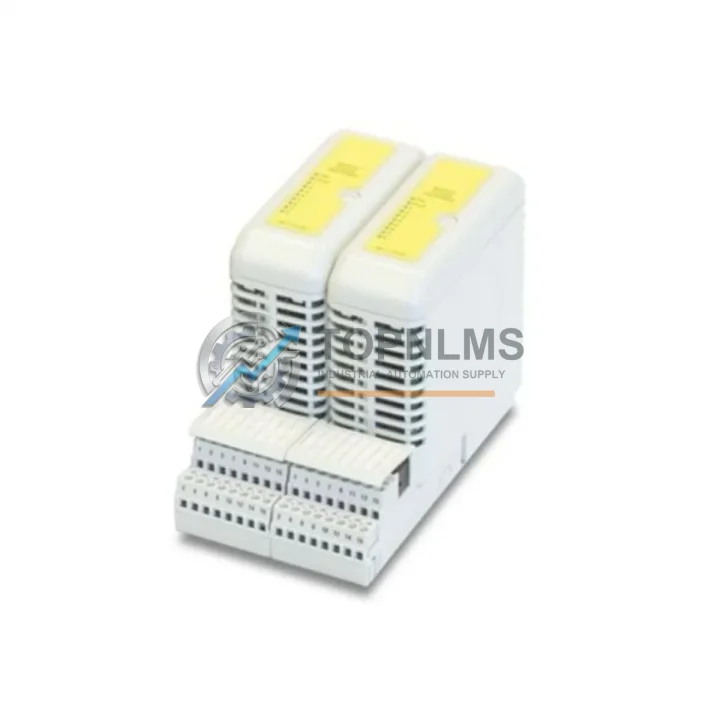

The GE 8103AI-TX is an 8-channel analog input module engineered for the GE Series 90 PLC platform, purpose-built to deliver uncompromising signal accuracy and operational continuity in the most demanding industrial environments. Whether deployed in high-temperature furnace control rooms, moisture-laden water treatment facilities, dust-saturated mining galleries, or vibration-intensive heavy manufacturing lines, the 8103AI-TX maintains precise 4–20 mA and 0–10 V signal acquisition without drift or interruption. Its ruggedized construction and proven compatibility with the GE Series 90 control architecture make it a trusted backbone component for engineers who cannot afford downtime.

Designed to interface directly with the GE Series 90-30 and Series 90-70 CPU racks, the 8103AI-TX accepts up to eight independent analog input channels simultaneously, enabling high-density process variable monitoring across temperature, pressure, flow, and level transmitters. The module’s internal signal conditioning circuitry provides robust noise rejection, ensuring reliable data acquisition even in environments with significant electromagnetic interference (EMI) from variable frequency drives (VFDs), large motor starters, and high-voltage switchgear operating in adjacent panels.

Rugged Specifications Table

Comprehensive Protection Solutions

The GE 8103AI-TX does not operate in isolation — it is a critical node within a broader GE Series 90 control architecture. In a typical heavy-industry control cabinet, the 8103AI-TX works in concert with the GE IC693CPU364 central processing unit, which orchestrates all I/O scanning and ladder logic execution. Discrete field signals are handled by companion modules such as the GE IC693MDL645 32-point DC input module and the GE IC693MDL740 12-point relay output module, while analog output control loops are closed through the GE IC693ALG390 analog output module, enabling precise actuator positioning for control valves and dampers.

Power integrity for the entire rack assembly is maintained by the GE IC693PWR321 power supply module, which provides regulated 5 VDC and 24 VDC bus voltages with built-in overvoltage and short-circuit protection — essential in facilities where power quality fluctuates due to large inductive loads. For applications requiring high-speed serial communications between the PLC and SCADA systems or remote I/O drops, the GE IC693CMM321 communications module supports Ethernet TCP/IP connectivity, while the GE IC693CMM302 provides legacy serial and SNP/SNPX protocol support for older DCS integration.

In safety-critical zones, the 8103AI-TX is frequently paired with GE Series 90 safety relay modules and dedicated intrinsically safe barriers to ensure that field wiring from hazardous area transmitters meets IEC 60079 zone classification requirements. Terminal modules such as the GE IC693ACC300 expansion cable and associated I/O terminal blocks provide secure, vibration-resistant field wiring termination, reducing the risk of intermittent connections in high-vibration environments such as compressor stations or rolling mills. Together, these components form a cohesive, field-proven control system architecture that minimizes single points of failure and supports rapid module-level replacement without full system shutdown.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the GE 8103AI-TX has established a track record of reliable service in environments where failure is not an option.

Oil & Gas: On offshore platforms and onshore gas compression stations, the 8103AI-TX monitors pressure transmitters, flow meters, and temperature sensors across wellhead control panels. Its tolerance for wide ambient temperature swings and resistance to salt-air corrosion — when housed in appropriately rated enclosures — make it a preferred choice for upstream and midstream automation engineers managing continuous production assets.

Power Generation: In coal-fired, gas turbine, and hydroelectric power plants, the module interfaces with boiler drum level transmitters, turbine inlet pressure sensors, and generator cooling system monitors. The 8103AI-TX’s 12-bit resolution ensures that small process deviations are captured accurately, enabling early warning of developing faults before they escalate to forced outages.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 8103AI-TX to monitor chlorine dosing pumps, pH sensors, and flow control loops in environments characterized by high humidity, chemical vapors, and continuous 24/7 operation. Its non-condensing humidity rating and sealed module housing protect internal circuitry from moisture ingress.

Mining & Metallurgy: Underground mining operations and surface smelting facilities subject control equipment to extreme dust loading, mechanical shock, and electromagnetic noise from large conveyor drives and electric arc furnaces. The 8103AI-TX’s robust backplane connection and conformal-coated PCB design resist particulate contamination and maintain signal integrity under these conditions.

Chemical & Petrochemical Processing: Continuous process plants operating distillation columns, reactor vessels, and heat exchangers depend on accurate analog signal acquisition for advanced process control (APC) strategies. The 8103AI-TX supports the high channel density and signal fidelity required for multi-loop PID control in these applications, where even minor measurement errors can result in off-spec product or safety incidents.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the GE 8103AI-TX?
All GE 8103AI-TX modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund — no lengthy RMA bureaucracy. Our warranty commitment reflects our confidence in the quality of every unit we ship.

Q2: How is each module tested before shipment?
Every GE 8103AI-TX unit undergoes a multi-point pre-shipment inspection that includes visual examination for physical damage, functional power-on verification, and channel-level signal integrity testing where applicable. Modules are packaged in anti-static, shock-absorbing materials to prevent transit damage. A test report is available upon request for customers with strict incoming quality control (IQC) requirements.

Q3: Is the GE 8103AI-TX compatible with my existing Series 90 rack and CPU?
Yes. The 8103AI-TX is designed for direct plug-in compatibility with GE Series 90-30 and Series 90-70 I/O racks. It is recognized natively by GE Proficy Machine Edition and the legacy Logicmaster 90 programming environments. No firmware modifications or special configuration files are required for standard installations. If you have a specific rack model or CPU revision, our technical team can confirm compatibility before you place an order.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Absolutely. TOPNLMS maintains dedicated stock of GE Series 90 modules, including the 8103AI-TX, to support both planned maintenance schedules and emergency breakdown situations. We understand that production lines cannot wait — our standard lead time is 3–5 business days, with expedited shipping options available for critical downtime scenarios. For customers managing large installed bases, we offer reserved stock agreements to guarantee availability over multi-year maintenance contracts.
