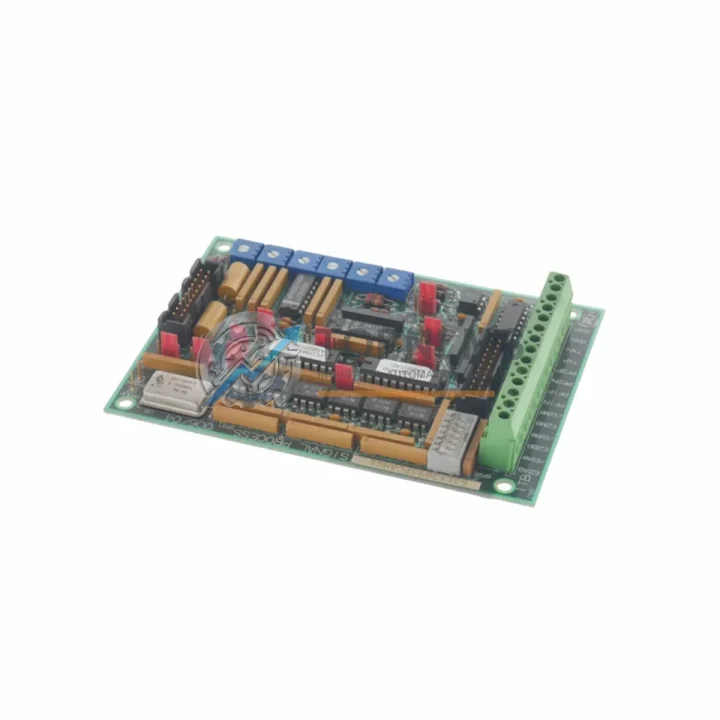

GE 531X309SPCAHG1 Replacement for Mark VI Series

Product Overview

GE 531X309SPCAHG1 Replacement for Mark VI Series: Seamless Transition & Smooth Upgrade

When a GE Mark VI turbine control system requires a processor card replacement, unplanned downtime is the primary risk. The GE 531X309SPCAHG1 is a critical processor card within the Mark VI platform — a distributed control architecture widely deployed in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. Whether your existing 531X309SPCAHG1 has failed, is approaching end-of-life, or your facility is executing a planned migration away from an older Mark V or Mark IV control system, TOPNLMS maintains verified in-stock inventory to support your replacement and upgrade requirements with minimal lead time.

The Mark VI control system uses a modular, rack-based architecture. The 531X309SPCAHG1 processor card interfaces directly with the VCMI (VME Communications Module Interface) and coordinates I/O data exchange across the turbine control network. Replacing this card requires careful attention to firmware revision compatibility, I/O module mapping, and the configuration of the IONET or ARCNET communication bus depending on your system generation. Our technical team can assist in confirming the correct firmware baseline and configuration file backup procedures prior to card swap.

For facilities migrating from the older GE Mark V platform, the transition to Mark VI involves not only the processor card but also the replacement of associated I/O packs such as the IS200IOCIH1A I/O controller interface card and the IS200TRLYH1B relay output terminal board. These components share the same rack footprint philosophy but use updated communication protocols. The 531X309SPCAHG1 is designed to work within this updated architecture, and its installation typically does not require changes to the physical control cabinet dimensions, making it suitable for retrofit projects where panel space is constrained.

Power supply compatibility is another key consideration during migration. The Mark VI system typically operates on a 125 VDC or 28 VDC power rail depending on the I/O module type. The IS200EPCTG1A power converter module and associated IS200PSCDH1A power supply card should be verified for compatibility before commissioning the replacement 531X309SPCAHG1. In most field installations, the existing power distribution wiring can be retained without modification, significantly reducing retrofit labor costs.

Communication protocol continuity is essential for a successful card replacement. The 531X309SPCAHG1 supports the Mark VI’s native IONET Ethernet-based I/O communication protocol, which replaced the older ARCNET bus used in Mark V systems. If your facility is running a hybrid architecture — for example, retaining some Mark V I/O racks while upgrading the processor layer — the IS200VCMIH2C VME communications module provides the necessary protocol bridging. This approach allows a phased migration strategy, reducing the scope of a single outage window.

Wiring compatibility between the 531X309SPCAHG1 and existing field termination assemblies (FTAs) is generally maintained within the Mark VI platform. Terminal boards such as the IS200TTURH1C turbine terminal board and the IS200TREGH1B regulation terminal board connect to the processor card via ribbon cable assemblies. These assemblies are typically reusable during a card swap, provided the cable connectors show no signs of corrosion or mechanical damage. TOPNLMS recommends a visual inspection of all ribbon cable assemblies as part of the pre-replacement checklist.

For HMI and SCADA integration, the Mark VI system communicates with operator workstations via the Unit Data Highway (UDH) Ethernet network. Replacing the 531X309SPCAHG1 does not require changes to the UDH network configuration, and the existing GE Toolbox software configuration files can be reloaded to the replacement card following the standard download procedure. This ensures that alarm setpoints, control logic, and I/O assignments are preserved without manual re-entry.

In applications where the Mark VI system is integrated with a GE EX2100 or EX2100e excitation control system, the processor card replacement must be coordinated with the excitation system’s communication interface. The IS200EXHAH1A excitation interface card handles this bridge, and its configuration should be verified post-replacement to confirm that generator excitation control signals are correctly mapped. This is a common oversight in field replacements that can result in generator trip events during commissioning.

TOPNLMS stocks the 531X309SPCAHG1 as part of a broader inventory of GE Mark VI and Mark VIe spare parts, supporting power generation facilities, petrochemical plants, and industrial process control installations globally. Each unit undergoes functional verification testing prior to shipment. We maintain traceability records for all stocked units, including original manufacturer documentation where available.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Mark VI processor card replacement or Mark V-to-Mark VI migration typically involves several interdependent components. The IS200VCMIH2C VME communications module is often replaced in parallel with the 531X309SPCAHG1 to ensure communication bus integrity. The IS200IOCIH1A I/O controller interface card coordinates local I/O pack communication and should be verified for firmware compatibility. For relay output functions, the IS200TRLYH1B relay output terminal board provides the field interface and is typically retained during a processor card swap.

Power integrity during the migration is supported by the IS200PSCDH1A power supply card and the IS200EPCTG1A power converter module, both of which should be inspected and tested as part of the replacement scope. For turbine-specific signal termination, the IS200TTURH1C turbine terminal board and IS200TREGH1B regulation terminal board provide the field wiring interface and are generally reusable. Where excitation system integration is required, the IS200EXHAH1A excitation interface card must be configured post-replacement. Programming and configuration download to the replacement 531X309SPCAHG1 is performed via the standard GE Toolbox software interface, using the existing configuration backup file from the outgoing card.

Retrofit Guidance FAQ

Q: Can the 531X309SPCAHG1 be installed as a direct swap without rewiring?
A: In most Mark VI installations, yes. The card uses the same VME rack slot and ribbon cable connectors as the outgoing unit. Field wiring at the FTA level does not require modification. Confirm ribbon cable condition before reinstallation.

Q: Is the existing GE Toolbox configuration file compatible with the replacement card?
A: Yes. The configuration file from the outgoing card can be downloaded to the replacement 531X309SPCAHG1 using GE Toolbox. Ensure the firmware revision on the replacement card matches or is compatible with the configuration file version.

Q: What communication protocol does the 531X309SPCAHG1 use?
A: The card operates on the IONET Ethernet-based I/O communication protocol native to the Mark VI platform. If migrating from a Mark V system using ARCNET, a protocol bridge module such as the IS200VCMIH2C is required for hybrid architectures.

Q: Will the replacement card fit in the existing control cabinet?
A: The 531X309SPCAHG1 uses the standard Mark VI VME rack form factor. No cabinet modifications are required for a like-for-like replacement within a Mark VI system. For Mark V-to-Mark VI migrations, rack adapter kits may be required depending on the cabinet configuration.

Q: How long does commissioning typically take after card installation?
A: For a direct swap within a Mark VI system, commissioning typically requires 2–4 hours including configuration download, I/O verification, and communication bus confirmation. For cross-platform migrations, allow additional time for protocol configuration and system-level testing.

Q: What spare parts should be on hand during the replacement?
A: Recommended spares include ribbon cable assemblies, VME rack backplane connectors, and the associated I/O controller interface card. Having a spare IS200VCMIH2C and IS200IOCIH1A on site reduces risk during the maintenance window.

Warranty Assurance

Every GE 531X309SPCAHG1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional verification process including power-on testing, communication interface verification, and visual inspection for component condition. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the defect and the customer’s operational requirements. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize customer downtime.

All units are shipped with appropriate anti-static packaging, humidity indicator cards, and shock-watch labels to ensure safe transit. Export documentation including commercial invoice, packing list, and certificate of origin is provided for all international shipments. Customers requiring third-party inspection or specific export compliance documentation should advise at the time of order.

TOPNLMS maintains a dedicated after-sales support team available to assist with installation guidance, configuration questions, and warranty processing. We are committed to supporting your control system reliability objectives with responsive, technically competent service.
