GE 531X160HFCACG1 Replacement/Upgrade Solution for Mark V

Product Overview

GE 531X160HFCACG1 Replacement/Upgrade Solution for Mark V: Smooth Transition & Legacy System Compatibility

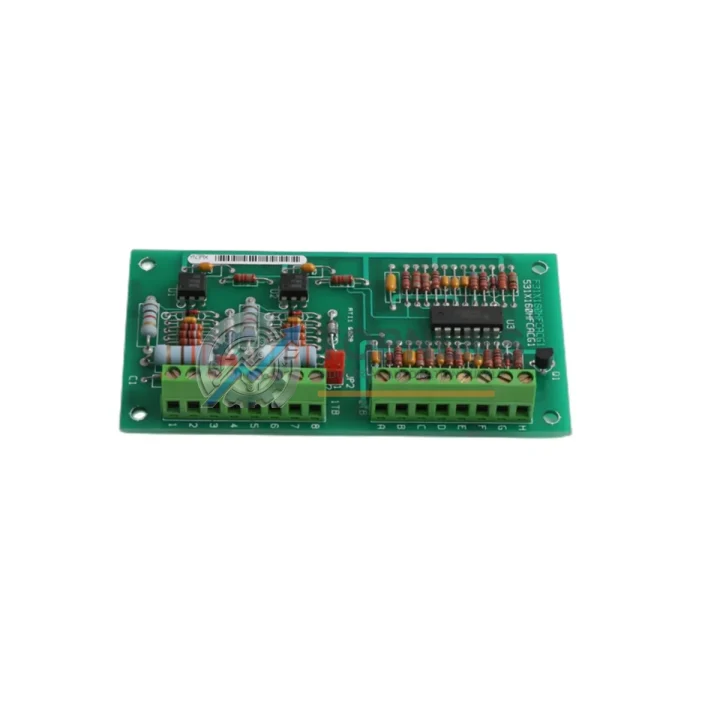

The GE 531X160HFCACG1 is the Home Flag Board I/O module used in GE’s Mark V Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and petrochemical industries. As GE has progressively discontinued Mark V hardware in favor of the Mark VIe platform, many facilities are now facing the challenge of sourcing reliable replacement modules to sustain existing Mark V installations or executing a phased migration to modern control architecture.

TOPNLMS supplies the 531X160HFCACG1 as a direct drop-in replacement for failed or end-of-life units, fully tested and ready for immediate installation. Whether your plant is maintaining a legacy Mark V system or planning a structured upgrade path, this module supports both strategies without requiring a full system overhaul.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 531X160HFCACG1 is rarely an isolated action. In most Mark V turbine control environments, the Home Flag Board works in close coordination with adjacent modules and system components. During a planned maintenance window or emergency replacement, engineers typically also inspect or replace the IS200TSVOH1A Servo Driver Board, which manages turbine valve positioning signals that interface directly with the I/O layer handled by this module.

For facilities running triple-redundant Mark V configurations across R, S, and T control panels, the DS200TCQAG1BHF TMR I/O Pack and IS200TREGH1A Voltage Regulator Board are commonly evaluated alongside the Home Flag Board during any corrective maintenance cycle. These modules share the same IONET communication bus and must maintain synchronized signal integrity across all three redundant channels.

Power integrity is equally critical. The 531X307APCAJG1 Power Supply Board and associated DS200PTBAG1A Power Terminal Board supply the regulated 28 VDC and 5 VDC rails that the 531X160HFCACG1 depends on. Any instability in these upstream power modules can cause false flag signals or intermittent I/O faults that are often misdiagnosed as Home Flag Board failures.

For plants transitioning from Mark V to Mark VIe, the migration path typically involves introducing the IS200ECTBG1A Ethernet Communication Terminal Board and IS200VTURH1BAA Turbine Control I/O Module as the new I/O backbone, while retaining legacy Mark V boards like the 531X160HFCACG1 in parallel during the phased cutover period. This hybrid approach minimizes turbine downtime and allows engineering teams to validate new I/O mappings against existing field wiring before full commissioning.

HMI connectivity is another consideration. Many Mark V installations use the GE Cimplicity HMI workstation communicating over the Mark V IONET network. Replacing the Home Flag Board does not require any HMI reconfiguration, as the module’s address and signal mapping remain unchanged in a like-for-like swap.

For sites that have already partially migrated to Mark VIe and are running a mixed architecture, the IS200EPCTG1A Ethernet PCB and IS200DSPXH1D Digital Signal Processor Board may be present in the same control cabinet. These newer modules coexist with legacy Mark V boards during transition, and TOPNLMS can supply both legacy and current-generation GE turbine control components to support your migration timeline.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the 531X160HFCACG1?
No. The 531X160HFCACG1 uses the same terminal block layout and connector pinout as the original unit. Field wiring connected to the Mark V terminal boards remains unchanged. Simply remove the failed board, seat the replacement in the same rack slot, and restore power.

Q: Will the replacement board require any software or configuration changes in the Mark V controller?
No software changes are required for a like-for-like board swap. The Mark V controller recognizes the module by its rack position and hardware address, not by a firmware ID. The existing application code, I/O assignments, and alarm setpoints remain fully intact.

Q: Is the 531X160HFCACG1 compatible with all Mark V panel configurations (R, S, T)?
Yes. The Home Flag Board is used across Mark V R, S, and T control panels in both simplex and TMR (Triple Modular Redundant) configurations. Confirm your panel designation before ordering if you require a specific hardware revision suffix.

Q: What communication protocol does this module use?
The 531X160HFCACG1 communicates over the GE Mark V proprietary IONET internal bus. It does not use Modbus, Profibus, or Ethernet independently — all external communication is managed by the Mark V controller’s communication boards upstream.

Q: Can this module be used during a phased migration from Mark V to Mark VIe?
Yes. During a phased migration, the 531X160HFCACG1 can remain in service in the legacy Mark V panels while new Mark VIe I/O modules are commissioned in parallel. This approach is standard practice for minimizing turbine outage duration during control system upgrades.

Q: What physical space does the module require?
The 531X160HFCACG1 occupies a standard Mark V single-slot board position. No additional panel space or mounting hardware is required beyond the existing rack slot.

Warranty Assurance

Every 531X160HFCACG1 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, I/O signal integrity checks, and visual inspection for component condition and connector integrity. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement or repair support with a target response time of 1–2 business days. We understand that turbine control system downtime carries significant operational and financial consequences, and our after-sales process is structured to minimize the time between fault identification and module replacement.

Stock is maintained in Xiamen, China, with express international shipping available to most destinations. Lead times for in-stock units are typically 3–7 business days door-to-door for standard international freight, with expedited options available on request. All units are shipped with appropriate ESD-protective packaging and documentation.

For procurement teams requiring traceability documentation, test reports, or certificate of conformance, please contact us directly. We support both spot purchases and blanket order arrangements for facilities managing ongoing Mark V maintenance programs.
