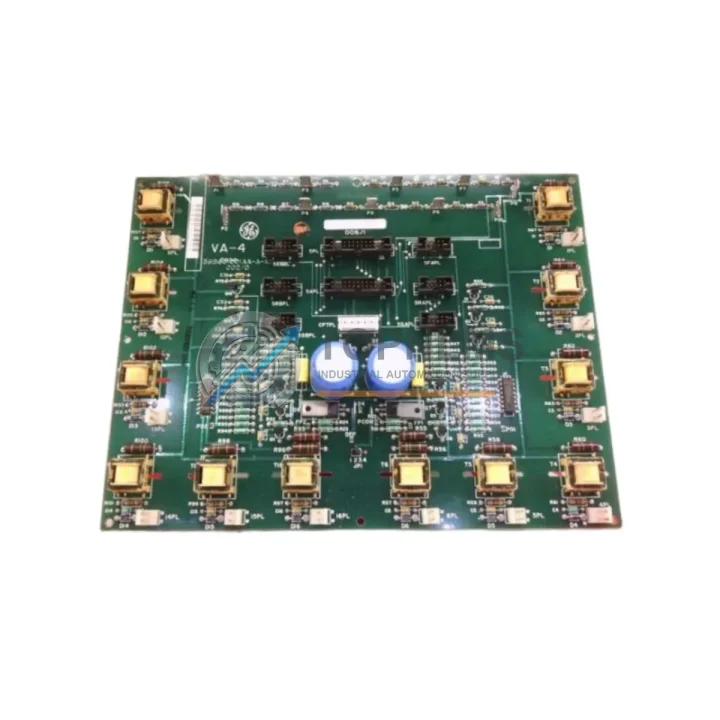

GE 531X123PCHACG1 Ruggedized AC Power Connection Module

Product Overview

GE 531X123PCHACG1 Ruggedized AC Power Connection Module: Industrial Resilience for Harsh Environments

The GE 531X123PCHACG1 is a factory-engineered AC Power Connection Board designed for the General Electric 531X Series drive control platform — one of the most widely deployed variable-speed drive architectures in heavy industrial applications worldwide. Built to operate reliably under conditions of high ambient temperature, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference, this board serves as the critical power interface between incoming AC supply lines and the internal drive control circuitry.

In continuous-production environments — including steel rolling mills, cement kilns, paper machine drives, and large-scale pump and fan systems — power connection integrity is non-negotiable. The 531X123PCHACG1 provides stable, low-impedance AC power routing that protects downstream 531X Series control boards, gate driver circuits, and feedback modules from voltage transients and conducted noise. Its robust PCB construction, reinforced terminal connections, and conformal-coated surface finish make it a preferred replacement and spare-parts choice for maintenance engineers managing aging GE drive fleets.

Rugged Specifications Table

Comprehensive Protection Solutions

The 531X123PCHACG1 does not operate in isolation — it is the power foundation upon which an entire 531X Series drive system depends. In a fully configured GE 531X drive cabinet, this AC power connection board works in concert with the 531X111AEBAJG1 main control board, which handles speed reference processing, PID regulation, and serial communications. The 531X121PRGARG1 regulator board manages firing angle control and feedback conditioning, while dedicated 531X Series gate driver boards translate control signals into precise IGBT or SCR switching commands.

On the power supply side, the 531X123PCHACG1 interfaces with GE 531X Series internal DC power supply modules that generate the ±15 VDC and +5 VDC logic rails required by the control electronics. Upstream of the drive, line reactors and EMI input filters — commonly specified alongside 531X Series installations — reduce harmonic distortion and protect the AC power connection board from utility-side transients. In facilities where multiple drives share a common bus, GE Series 90 PLC I/O modules or Fanuc Series 90-30 remote I/O racks often provide supervisory interlocking signals that coordinate drive start/stop sequences, making the integrity of each drive’s power connection board critical to system-wide safety.

For installations in hazardous classified areas or where functional safety standards apply, the 531X drive system is frequently paired with safety relay modules and emergency stop monitoring units that monitor drive fault outputs — outputs that can only be trusted when the underlying power connection hardware is functioning correctly. Terminal blocks, DIN-rail mounted surge protection devices, and industrial UPS modules round out the protection architecture, ensuring that even during utility disturbances, the 531X123PCHACG1 and its associated control boards remain powered within specification.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, GE 531X Series drives — anchored by power connection boards like the 531X123PCHACG1 — control compressor trains, pipeline booster pumps, and wellhead injection systems. These environments demand continuous uptime: an unplanned drive shutdown can trigger process upsets, flare events, or safety system activations. Maintenance teams in these facilities maintain on-site spare boards specifically to minimize mean time to repair (MTTR).

In underground and open-pit mining operations, 531X Series drives manage conveyor belt systems, hoist motors, and ventilation fans. The combination of coal dust, silica particulate, and high mechanical vibration makes conformal-coated power connection boards essential. The 531X123PCHACG1’s robust construction allows it to withstand the shock loads transmitted through drive enclosures mounted on mobile or semi-mobile mining equipment.

In thermal and hydroelectric power generation plants, 531X drives are used for boiler feed pump control, cooling water circulation, and auxiliary system management. Grid-connected generation facilities operate under strict reliability mandates — N-1 redundancy requirements mean that spare 531X123PCHACG1 boards must be available in the plant’s critical spare parts inventory at all times.

In municipal and industrial water treatment facilities, variable-speed drives on raw water intake pumps, aeration blowers, and sludge handling systems run continuously for years. The 531X123PCHACG1’s long service life and broad availability as a replacement part make it a cost-effective choice for facilities that cannot afford the capital expenditure of full drive replacement when a single board fails.

In metallurgical and steel production environments, where ambient temperatures near furnaces and rolling mills can exceed 45°C and electromagnetic interference from large motor drives is pervasive, the 531X123PCHACG1 provides the stable AC power interface that keeps the entire drive control system operating within its design envelope.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions as defined by GE’s original product specifications. If a unit fails within the warranty period, TOPNLMS will arrange for replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and a replacement dispatch are typically coordinated within 3 business days of claim receipt.

Q2: What pre-shipment testing is performed on each 531X123PCHACG1 unit?
Every unit undergoes a structured pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional verification where applicable, insulation resistance testing between power rails and chassis ground, and connector integrity checks. Units that do not pass all inspection criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 531X123PCHACG1 compatible with all variants of the GE 531X Series drive platform?
The 531X123PCHACG1 is designed as the AC power connection board for the GE 531X Series drive family. Compatibility depends on the specific drive rating, enclosure configuration, and revision level of the associated control boards. TOPNLMS technical staff can verify compatibility against your drive’s nameplate data and existing board revision markings before order confirmation. Customers are encouraged to provide the full drive model number and any visible board revision codes when inquiring.

Q4: Can TOPNLMS support long-term or recurring supply of the 531X123PCHACG1 for planned maintenance programs?
Yes. TOPNLMS maintains stock of GE 531X Series boards and can support blanket purchase orders, scheduled release orders, and annual supply agreements for facilities with planned preventive maintenance or critical spare parts programs. Long-term supply arrangements can be discussed directly with our sales team at [email protected] or by calling +86 18359293191. We can also advise on complementary 531X Series spare boards to include in a comprehensive drive maintenance kit.
