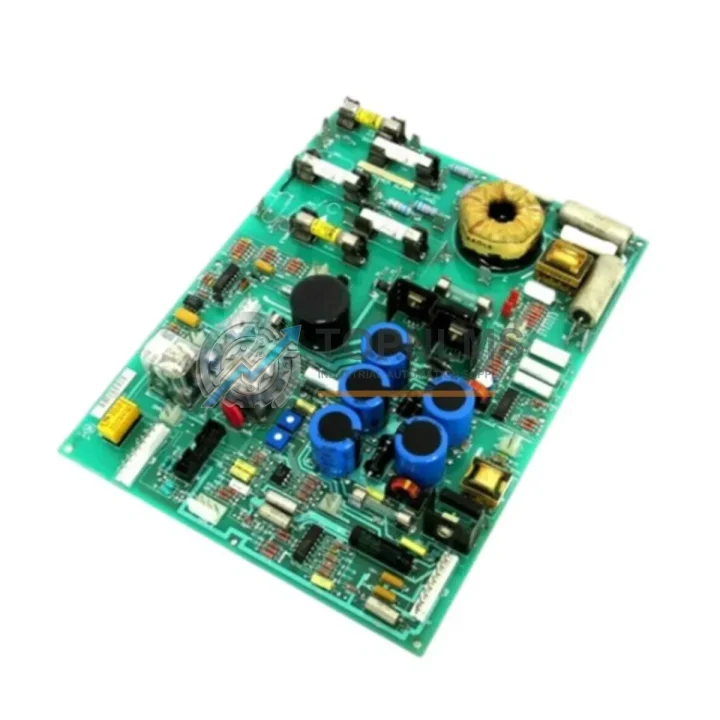

GE 531X111PSHARG3 Replacement for EX2000 Field Control: Seamless Migration & Legacy System Upgrade

The GE 531X111PSHARG3 is a Motor Field Control Board engineered for GE’s EX2000 static excitation system — a platform widely deployed across power generation, heavy industry, and process control facilities worldwide. As the EX2000 series approaches end-of-life and spare parts become increasingly scarce, facilities managers and control engineers are actively seeking verified replacement boards that preserve existing wiring infrastructure, communication architecture, and control logic without requiring a full system overhaul.

TOPNLMS maintains ready stock of the 531X111PSHARG3, fully tested and backed by a 12-month warranty. Each unit undergoes functional verification prior to shipment, ensuring that your replacement board arrives ready for immediate installation — minimizing unplanned downtime and reducing the risk associated with sourcing from unverified channels.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EX2000 field control board replacement rarely involves a single component in isolation. In practice, engineers migrating from aging or failed excitation hardware typically address several interdependent subsystems simultaneously to ensure system stability and reduce the probability of repeat failures.

When replacing the 531X111PSHARG3, it is common to inspect and — where necessary — simultaneously source the GE 531X111PSHBRG3 or 531X111PSHCRG3 companion boards, which share the same EX2000 card cage and interact directly with the field control function. The 531X302APCBAG1 power supply board is another frequent co-replacement item, as aging power regulation components often contribute to field control board failures in the first place.

For facilities running GE Mark V turbine control systems alongside EX2000 excitation, the IS200DSPXH1A digital signal processor board and IS200TREGH1B terminal board are commonly reviewed during the same maintenance window. These boards share the Mark V backplane environment and are subject to similar aging profiles.

Communication integrity between the EX2000 and the plant DCS is typically maintained through the 531X307LTBAJG1 LAN terminal board or equivalent Ethernet gateway modules. Engineers should verify that the replacement 531X111PSHARG3 is correctly recognized by the supervisory layer — whether that is a GE Speedtronic Mark V HMI, a Wonderware InTouch SCADA node, or a third-party DCS such as Honeywell Experion or ABB 800xA — before returning the unit to service.

Where the excitation cabinet also houses GE EX2100 or EX2100e components as part of a phased modernization, the IS200EXHSG2A excitation control board and associated IS200STCIH2A static converter interface board may be relevant to the broader upgrade scope. Sourcing these alongside the 531X111PSHARG3 from a single supplier reduces lead time and simplifies incoming inspection.

Finally, for sites where the field control board failure has caused downstream I/O anomalies, reviewing the 531X121PCHAJG1 analog I/O board and any associated signal conditioning or isolation modules in the same cabinet is strongly recommended before commissioning the replacement unit.

Retrofit Guidance FAQ

Q: Does replacing the 531X111PSHARG3 require rewiring the field control cabinet?
A: No. The 531X111PSHARG3 uses the same OEM connector pinout as the original board. Existing field wiring, terminal blocks, and cable harnesses remain unchanged. Simply remove the failed board, seat the replacement in the same card cage slot, and restore power.

Q: Will the replacement board be recognized by the EX2000 system without reprogramming?
A: In most cases, yes. The 531X111PSHARG3 is supplied with a standard EX2000 firmware baseline. However, site-specific parameter tuning (excitation gain, field current limits, AVR setpoints) stored in the original board’s non-volatile memory will need to be re-entered using the GE EX2000 programming tool or transferred from a backup configuration file. Always retain a configuration backup before removing the original board.

Q: Is the communication protocol between the 531X111PSHARG3 and the plant DCS affected by the replacement?
A: No. The board communicates via the EX2000 internal backplane bus. The DCS interface — whether Modbus RTU, Profibus DP, or a GE proprietary protocol gateway — is handled upstream of the field control board and is unaffected by the board swap.

Q: What are the physical space requirements for installation?
A: The 531X111PSHARG3 occupies a standard EX2000 card cage slot. No cabinet modifications, additional DIN rail space, or mounting hardware changes are required. The board’s PCB dimensions and connector positions are identical to the original.

Q: Can this board be used as a direct replacement in both GE EX2000 and EX2000e variants?
A: Compatibility with EX2000e variants should be confirmed against the specific system revision and firmware version in use at your site. Contact TOPNLMS with your system nameplate data and we will confirm compatibility before shipment.

Q: How should the replacement board be tested before returning the machine to service?
A: After installation, perform a no-load excitation test with the generator offline. Verify field current response, AVR regulation, and alarm/trip relay outputs against the original commissioning records. Only return the unit to full-load service after all parameters are confirmed within specification.

Warranty Assurance

Every GE 531X111PSHARG3 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes functional power-on verification, connector integrity inspection, and visual PCB examination for component damage, corrosion, or prior repair work. Units that do not pass our inspection criteria are not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — with no requirement to return the defective board before the replacement is dispatched for time-critical situations. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal.

We ship globally from our Xiamen warehouse. Standard lead time for in-stock units is 1–3 business days to dispatch, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available as shipping options. Export documentation, commercial invoices, and packing lists are prepared to facilitate smooth customs clearance in all major markets.

For procurement teams requiring formal quotations, vendor qualification documentation, or batch pricing for multiple units, please contact us directly. We support net-30 payment terms for qualified accounts and can provide material traceability documentation upon request.
