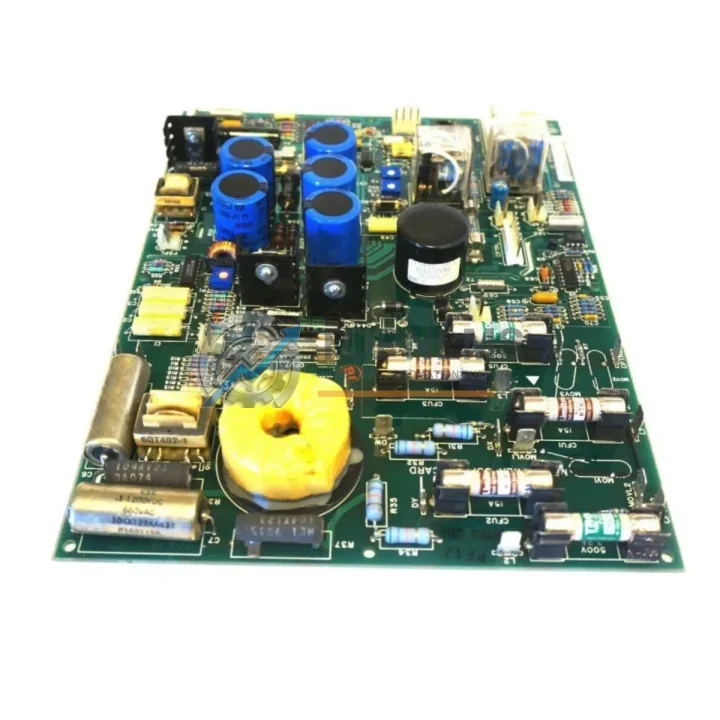

GE 531X111PSHAPG3 Ruggedized Motor Field Control Module

Product Overview

GE 531X111PSHAPG3 Ruggedized Motor Field Control Module: Industrial Resilience for Harsh Environments

The GE 531X111PSHAPG3 is a high-reliability Motor Field Control Module engineered as part of General Electric’s Mark VI Excitation and Control System. Designed to operate continuously in demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the field excitation control precision that mission-critical rotating machinery demands. Whether deployed in a gas turbine generator set, a large synchronous motor drive system, or a combined-cycle power plant, the 531X111PSHAPG3 maintains stable field current regulation under conditions that would compromise lesser components.

At TOPNLMS, every 531X111PSHAPG3 unit is sourced through verified supply channels, subjected to functional bench testing prior to dispatch, and backed by a 12-month replacement warranty. Our inventory is maintained specifically to support unplanned outages, scheduled turnarounds, and long-term spare parts programs for operators of GE Mark VI-based control architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The 531X111PSHAPG3 does not operate in isolation — it is one node in a tightly integrated Mark VI control architecture. In a typical turbine or large motor control cabinet, this field control module works in concert with the GE IS200EACAH1A Excitation Analog Control Board, which handles the analog signal conditioning upstream of field regulation. The IS200STCIH1A Terminal Board provides the physical I/O termination layer, ensuring clean signal paths even in environments with significant ground noise or cable-induced interference.

For installations where electromagnetic interference is a persistent concern — such as near large variable frequency drives (VFDs) or high-current bus bars — the 531X111PSHAPG3 is typically paired with GE IS215VCMIH2C VME Communication Interface Modules to maintain data integrity across the control network. On the power supply side, the IS200EPCTG1A Power Distribution Board ensures regulated, clean DC power delivery to the excitation subsystem, protecting the field control module from upstream voltage transients common in heavy industrial switchgear environments.

In applications involving safety-critical rotating machinery, the 531X111PSHAPG3 is often deployed alongside GE IS220PSVOH1A Servo and Protection I/O Modules, which handle overspeed and protective relay logic. The IS200TRLYH1BCC Relay Output Terminal Board provides the hardwired trip and alarm outputs that complement the field control function, ensuring that a field excitation fault triggers the correct protective response at the relay level. For sites running redundant Mark VI configurations, the IS200DSPXH1DBB Digital Signal Processor Board provides the computational backbone that coordinates field control commands across redundant control paths.

Communication integrity is maintained through GE IS200UCVEH2A UCV Ethernet Interface Boards, which bridge the Mark VI control network to plant-level SCADA and DCS systems — a critical requirement in power plants and refineries where the field control module’s status must be visible to the central control room in real time. Rounding out a complete spare parts strategy, the IS200BICLH1A Bus Interface and Clock Board ensures synchronization across the Mark VI rack, preventing timing-related faults that can cascade into unplanned shutdowns.

Application in Critical Infrastructure

The GE 531X111PSHAPG3 has established a proven service record across the most demanding sectors of global critical infrastructure.

In oil and gas upstream and midstream facilities, this module controls the field excitation of large synchronous motors driving compressors and pumps on offshore platforms and onshore gas processing plants. The combination of salt-laden air, continuous vibration from rotating machinery, and the ever-present risk of electromagnetic interference from high-power drives makes the ruggedized design of the Mark VI excitation system — and this module specifically — a preferred choice for reliability engineers.

In coal-fired and gas-fired power generation, the 531X111PSHAPG3 is a standard component in the excitation systems of synchronous generators ranging from 50 MW to 500 MW. Turbine hall environments subject control electronics to thermal cycling, airborne particulates from coal handling, and high-frequency vibration from turbine shafts. The Mark VI platform’s modular architecture means that a failed 531X111PSHAPG3 can be replaced during a planned outage window without requiring a full excitation system overhaul — a significant operational advantage.

In mining and mineral processing, large synchronous motors driving ball mills, SAG mills, and conveyor systems rely on stable field excitation to maintain torque characteristics under variable load. A field control module failure in this context can halt an entire processing line, with production losses measured in thousands of dollars per hour. Maintaining a certified spare 531X111PSHAPG3 on-site is standard practice for reliability-centered maintenance programs in this sector.

In water and wastewater treatment facilities, the module supports the excitation systems of large pump motors in environments characterized by high humidity, chemical vapors, and the need for continuous, unattended operation. Similarly, in metallurgical plants — electric arc furnace facilities, rolling mills, and aluminum smelters — the 531X111PSHAPG3 must withstand extreme thermal loads and intense electromagnetic fields generated by high-current furnace transformers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the GE 531X111PSHAPG3?
The 12-month warranty covers confirmed functional defects identified during installation or operation. If a unit fails within the warranty period due to a manufacturing or component defect, TOPNLMS will provide a direct replacement unit or a full refund — at the buyer’s discretion. Warranty claims are processed within 5 business days of defect confirmation. Physical damage caused by incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications are not covered.

Q2: How is each 531X111PSHAPG3 tested before shipment?
Every unit undergoes a pre-shipment functional inspection that includes visual inspection for physical damage, board-level continuity checks, and where applicable, power-on functional verification against GE Mark VI reference parameters. Units that do not pass inspection are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is the 531X111PSHAPG3 compatible with all Mark VI system configurations?
The 531X111PSHAPG3 is designed for integration within GE’s Mark VI Excitation and Control platform. Compatibility depends on the specific Mark VI system revision, firmware version, and excitation configuration at your site. TOPNLMS recommends providing your system’s Mark VI revision and excitation topology details when placing an order, so our technical team can confirm direct compatibility or identify any required configuration steps prior to installation.

Q4: Can TOPNLMS support long-term or recurring supply of the 531X111PSHAPG3?
Yes. TOPNLMS maintains standing inventory of the 531X111PSHAPG3 and related Mark VI excitation components to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders, consignment arrangements, and scheduled delivery programs for operators managing multi-site GE Mark VI fleets. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance cycle.
