GE 336A4940CTP2 Ruggedized Card Cage Enclosure for Harsh Environments

Product Overview

GE 336A4940CTP2 Ruggedized Card Cage Enclosure for Harsh Environments

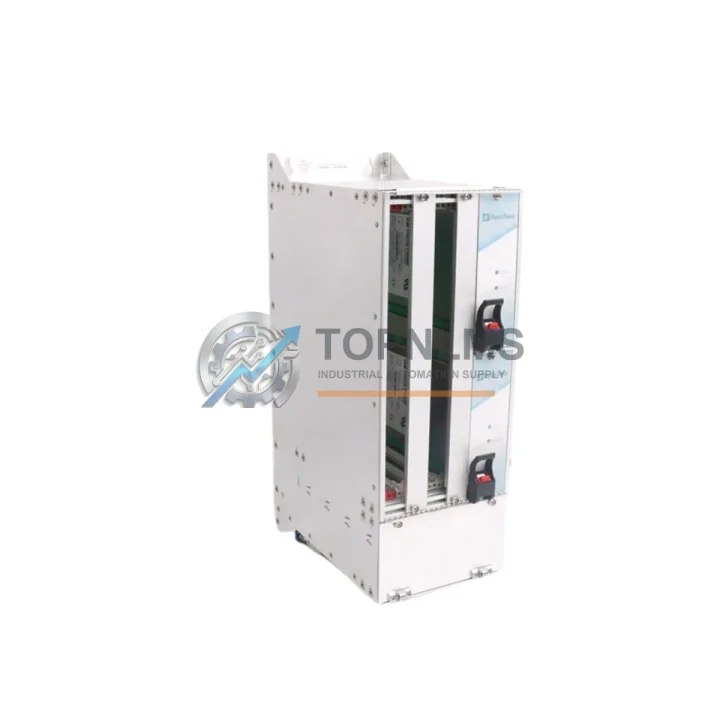

The GE 336A4940CTP2 is a heavy-duty card cage enclosure engineered for the Mark IV, Mark V, and Mark VI Turbine Control systems — GE’s flagship distributed control architecture deployed across gas turbines, steam turbines, and combined-cycle power plants worldwide. Designed to operate continuously in the most demanding industrial environments, this enclosure provides the structural backbone that houses and protects the critical I/O, processor, and communication modules that keep turbines running safely and reliably.

In power generation facilities, petrochemical refineries, offshore platforms, and heavy industrial plants, control hardware is routinely exposed to elevated ambient temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference. The 336A4940CTP2 addresses each of these threats through its ruggedized steel construction, precision-machined card guides, and EMI-shielded enclosure geometry. Its robust backplane connector interface ensures that every seated module — whether a processor card, I/O termination board, or communications card — maintains a low-resistance, vibration-tolerant electrical connection even under continuous mechanical stress.

Within a Mark VI turbine control cabinet, the 336A4940CTP2 typically houses modules such as the VCMI (VME Communications Module Interface), PPRO (Protection Processor), TTUR (Turbine Trip Unit Relay), and VCRC (VME Communications Relay Card). These modules depend entirely on the mechanical integrity of the card cage to maintain their position, grounding, and thermal dissipation. A compromised or worn enclosure introduces the risk of intermittent faults, nuisance trips, or — in worst-case scenarios — undetected safety system failures. Replacing a degraded cage with a genuine GE 336A4940CTP2 eliminates these risks and restores the system to OEM specification.

The enclosure is equally compatible with adjacent Mark VI system components including the VSVO (Servo Output Module), VTUR (Turbine Protection Module), VDYN (Dynamic Pressure Module), and VIBM (Vibration Monitor Module). In multi-rack configurations, the 336A4940CTP2 integrates seamlessly with GE’s standard Mark VI panel wiring harnesses, terminal boards, and power supply modules — preserving the original system architecture without requiring custom adaptation.

For facilities operating under IEC 61511 (Functional Safety for Process Industry) or IEC 62061 (Safety of Machinery) frameworks, maintaining OEM-specified hardware in safety-instrumented systems is a compliance requirement, not merely a best practice. The 336A4940CTP2 supports this compliance posture by ensuring that the physical housing of safety-critical modules meets the original design intent, including proper card retention, grounding continuity, and thermal management.

TOPNLMS maintains verified stock of the GE 336A4940CTP2, sourced through established industrial surplus and OEM channels. Every unit undergoes incoming inspection including visual examination, connector integrity verification, and dimensional conformance check before being listed for sale. Units are shipped in anti-static, foam-padded packaging to prevent transit damage, with full documentation of the inspection record included.

Rugged Specifications Table

Comprehensive Protection Solutions

The 336A4940CTP2 card cage enclosure does not operate in isolation — it is the physical foundation of a layered protection and control architecture. Within the same Mark VI control panel, the PPRO protection processor card continuously monitors turbine speed, exhaust temperature, vibration amplitude, and flame detection signals, issuing trip commands within milliseconds of a detected fault. The TTUR turbine trip unit relay translates those commands into hardwired relay outputs that actuate fuel shutoff valves and inlet guide vane actuators, providing a final hardware barrier independent of software state.

Upstream of the card cage, GE Mark VI power supply modules — typically the PSVO or equivalent regulated DC supply — deliver clean, filtered 28 VDC or 5 VDC rails to every seated card. Power quality directly affects the reliability of sensitive processor and communications cards; a stable, low-ripple supply is as important as the mechanical integrity of the enclosure itself. In parallel, the VCMI communications module manages the high-speed IONet Ethernet backbone that links the Mark VI controller to HMI workstations, historian servers, and plant DCS gateways, ensuring that real-time turbine data flows without interruption even in electrically noisy environments.

For vibration monitoring — a critical parameter in rotating machinery protection — the VIBM vibration monitor module seated within the same cage processes signals from proximity probes and accelerometers mounted on turbine bearings. Accurate vibration data depends on a mechanically stable card cage that does not introduce additional noise or micro-movement into the module’s analog input circuitry. Similarly, the VDYN dynamic pressure module, used in combustion dynamics monitoring for gas turbines, requires a low-noise, well-grounded enclosure to resolve the small-amplitude pressure fluctuations that indicate combustion instability before it escalates to a hardware-damaging event.

At the I/O termination layer, Mark VI terminal boards and marshalling panels connect field instruments — thermocouples, RTDs, pressure transmitters, and position feedback sensors — to the card cage’s I/O modules. Maintaining the physical integrity of the card cage ensures that these termination points remain correctly aligned and that shield grounding paths remain continuous, preventing common-mode noise from corrupting analog measurements. In safety-instrumented system (SIS) applications, the VSVO servo output module drives hydraulic servo valves that control fuel flow and compressor inlet guide vanes; any mechanical looseness in the card cage that affects the VSVO’s connector seating can introduce latent faults into the final control element path.

Application in Critical Infrastructure

The GE 336A4940CTP2 card cage enclosure is deployed across the full spectrum of critical infrastructure sectors where GE Mark IV, V, and VI turbine control systems are installed.

In power generation — including combined-cycle gas turbine (CCGT) plants, simple-cycle peakers, and cogeneration facilities — the Mark VI system governs start-up sequencing, load control, emissions compliance, and protective shutdown. The card cage enclosure must withstand the elevated ambient temperatures typical of turbine enclosures and the continuous vibration transmitted through the plant structure from rotating machinery. Unplanned downtime in a power plant carries immediate financial and grid-stability consequences; a reliable, OEM-specification card cage is a direct contributor to plant availability.

In oil and gas processing — onshore compression stations, offshore platform topsides, and LNG liquefaction trains — the Mark VI system controls gas turbine-driven compressors that are the heart of the production process. These environments combine high humidity, salt-laden air, hydrocarbon vapors, and stringent hazardous-area classification requirements. The ruggedized construction of the 336A4940CTP2 supports reliable operation in these conditions, and its compatibility with the full Mark VI module set means that a single spare enclosure can support multiple critical assets across a facility.

In mining and metals processing — including ore processing plants, smelters, and rolling mills — GE turbine control systems drive the large rotating equipment that moves material through the production chain. Dust ingress, high ambient temperatures, and aggressive electromagnetic environments from large variable-frequency drives and arc furnaces challenge every component in the control system. The EMI-shielded design of the 336A4940CTP2 provides a meaningful layer of protection for the sensitive electronics it houses.

In water and wastewater treatment facilities operating large pump-drive turbines or gas engine generators, and in petrochemical plants running steam turbine-driven process compressors, the same reliability requirements apply. TOPNLMS supplies the 336A4940CTP2 to maintenance teams in all of these sectors, supporting both planned maintenance outages and emergency breakdown replacements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. If the unit fails due to a manufacturing or component defect within 12 months of the ship date, TOPNLMS will provide a replacement unit or a full refund at the buyer’s discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q2: How is each unit tested and verified before shipment?
Every GE 336A4940CTP2 unit in our inventory undergoes a structured incoming inspection protocol: visual examination for mechanical damage, corrosion, or deformation; connector pin inspection for bent, missing, or contaminated contacts; dimensional verification of card guide alignment; and label/part number confirmation against GE documentation. Units that do not pass all inspection criteria are quarantined and not offered for sale. A copy of the inspection record is included with each shipment.

Q3: Is the 336A4940CTP2 compatible with both Mark V and Mark VI systems?
Yes. The 336A4940CTP2 is designed to the GE Mark IV/V/VI mechanical and electrical interface specification and is compatible with the VME-format module set used across all three generations of GE turbine control. Buyers should verify the specific panel configuration and backplane revision of their installation before ordering; TOPNLMS technical support can assist with compatibility confirmation based on your existing panel drawings or module list.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains ongoing sourcing relationships for GE Mark IV/V/VI spare parts and can support scheduled maintenance programs, long-term service agreements, and emergency breakdown supply. For facilities managing a fleet of GE turbine control systems, we recommend establishing a standing spare parts arrangement to ensure availability when needed. Contact our team to discuss volume pricing and reserved stock programs.
