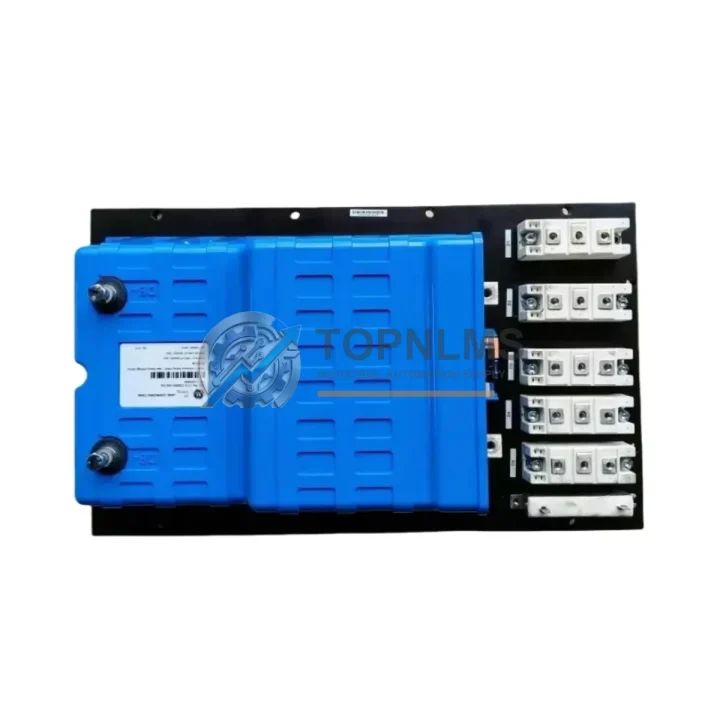

GE 151X1233DB01SA01 Ruggedized Turbine Control Module for Harsh Environments

Product Overview

GE 151X1233DB01SA01 Ruggedized Turbine Control Module for Harsh Environments

The GE 151X1233DB01SA01 is a high-reliability control circuit board engineered for the GE Mark V Turbine Control System — one of the most widely deployed turbine management platforms in critical power generation and heavy industrial infrastructure worldwide. Designed to operate continuously under extreme thermal stress, high-vibration mechanical loads, electromagnetic interference, and corrosive atmospheric conditions, this module delivers the fault-tolerant performance that mission-critical facilities demand. Whether deployed in a gas turbine power plant, a combined-cycle facility, or a petrochemical processing unit, the 151X1233DB01SA01 maintains deterministic control logic execution without compromise.

As a core processor and I/O interface board within the Mark V architecture, this module coordinates real-time signal acquisition, protective relay logic, and turbine sequencing across the full control cabinet. It interfaces directly with companion boards such as the Mark V I/O terminal boards, the DS200TCQAG1BHF analog output board, and the DS200SDCCG1A speed and dynamics control card, forming a tightly integrated control backbone. The module’s robust PCB construction — featuring conformal coating, reinforced solder joints, and shielded signal traces — ensures stable operation in environments where standard commercial-grade electronics would fail within months.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Mark V turbine control cabinet, the 151X1233DB01SA01 does not operate in isolation — it is the nerve center of a layered protection and control architecture. Upstream, the DS200TCRAG1AAA turbine control regulator board feeds real-time speed and load signals into this module, enabling closed-loop governor response within milliseconds. Downstream, the DS200SDCIG1AFB speed and dynamics control interface card translates the module’s output commands into actuator-level signals for fuel valve and inlet guide vane positioning.

For facilities running parallel redundancy configurations, the DS200TCQCG1B provides the TMR (Triple Modular Redundancy) voting logic that cross-validates outputs from three independent control lanes — a safety architecture that the 151X1233DB01SA01 is fully compatible with. On the power conditioning side, the IS200EPCTG1A excitation protection and control terminal board ensures that voltage transients from generator excitation events do not propagate into the control logic layer where this module resides.

Communication integrity is maintained through the IS200STCIG1A serial communications interface board, which bridges the Mark V internal ARCNET bus to external SCADA and DCS platforms — including GE’s own Cimplicity HMI environment. For I/O expansion in large turbine trains with multiple extraction points, the DS200IOCAG1B I/O controller board extends the addressable field device count without introducing latency into the scan cycle. Safety interlock logic is enforced by the IS200ESYSG1A emergency stop and safety relay module, which monitors trip conditions and issues hardwired shutdown commands independent of software state — a critical layer of protection in any SIL-rated installation.

Facilities that have standardized on GE Mark VI or Mark VIe as their next-generation platform will find that the 151X1233DB01SA01 continues to serve as a cost-effective operational spare for legacy Mark V units still in service, bridging the gap during phased migration programs without requiring full cabinet replacement.

Application in Critical Infrastructure

The GE 151X1233DB01SA01 has a proven service record across the most demanding sectors of global industrial infrastructure. In gas turbine power plants, this board manages the complete start-up sequence — from initial purge through ignition, acceleration, synchronization, and load pickup — while simultaneously monitoring over-speed, over-temperature, and flame-out conditions that would trigger an automatic protective trip. A single unplanned turbine outage in a baseload power facility can cost tens of thousands of dollars per hour; the reliability of this control board is therefore a direct financial and operational asset.

In oil and gas upstream and midstream facilities, the 151X1233DB01SA01 controls gas compression turbines operating in classified hazardous areas where explosive atmospheres may be present. Its sealed, panel-mounted installation within a purged and pressurized control enclosure meets the requirements of IEC 60079 hazardous area standards when properly integrated. Offshore platform operators and onshore gas processing plants rely on this module’s deterministic scan cycle to maintain compressor surge protection and anti-surge valve response times within the millisecond range required by API 670 machinery protection standards.

In metallurgical and steel production facilities, where rolling mill drives and blast furnace blower turbines operate under continuous high-load conditions with significant electrical noise from large variable frequency drives and arc furnace equipment, the EMI-hardened design of this board ensures that control signal integrity is maintained even in the presence of severe conducted and radiated interference. Similarly, in water treatment and pumping stations where large pump-drive turbines operate in high-humidity, chemically aggressive environments, the conformal-coated PCB construction of the 151X1233DB01SA01 provides the corrosion resistance necessary for multi-year continuous service between scheduled maintenance intervals.

Mining operations — particularly those involving large ventilation fan drives, hoist systems, and ore processing conveyors — also benefit from the module’s vibration tolerance and wide operating temperature range, which accommodates the thermal cycling inherent in surface-to-underground installation environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions as specified in the GE Mark V technical documentation. If a unit fails within the warranty period, TOPNLMS will arrange return shipping, perform root-cause analysis, and provide a replacement unit or full refund. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the observed fault.

Q2: How is each unit tested before shipment?
Every 151X1233DB01SA01 unit undergoes a multi-stage pre-shipment inspection protocol that includes visual inspection for PCB damage, component-level continuity testing, functional power-on verification against GE Mark V reference parameters, and burn-in testing under load to screen for early-life failures. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for OEM-grade and refurbished units.

Q3: Is this module compatible with all Mark V panel configurations, including TMR and SIMPLEX architectures?
Yes. The 151X1233DB01SA01 is compatible with both SIMPLEX (single-lane) and TMR (Triple Modular Redundancy) Mark V configurations. In TMR systems, three boards of this type are installed in the R, S, and T control lanes respectively, with the DS200TCQCG1B voting card arbitrating outputs. Customers should confirm their panel’s specific slot assignment and firmware revision with our technical team prior to installation to ensure seamless integration.

Q4: Can TOPNLMS guarantee long-term supply continuity for this part?
TOPNLMS maintains a dedicated inventory of GE Mark V legacy components specifically to support facilities operating aging turbine control systems that are no longer covered by OEM active support contracts. We source from verified industrial surplus channels, decommissioned plant equipment, and authorized distributors, and we perform incoming quality inspection on all stock. For customers with planned maintenance schedules or multi-unit fleet requirements, we offer reserved stock arrangements — contact [email protected] to discuss volume and lead-time commitments.
