GAST 4LCB-10-M450X Replacement Solution for 4LCB Series

Product Overview

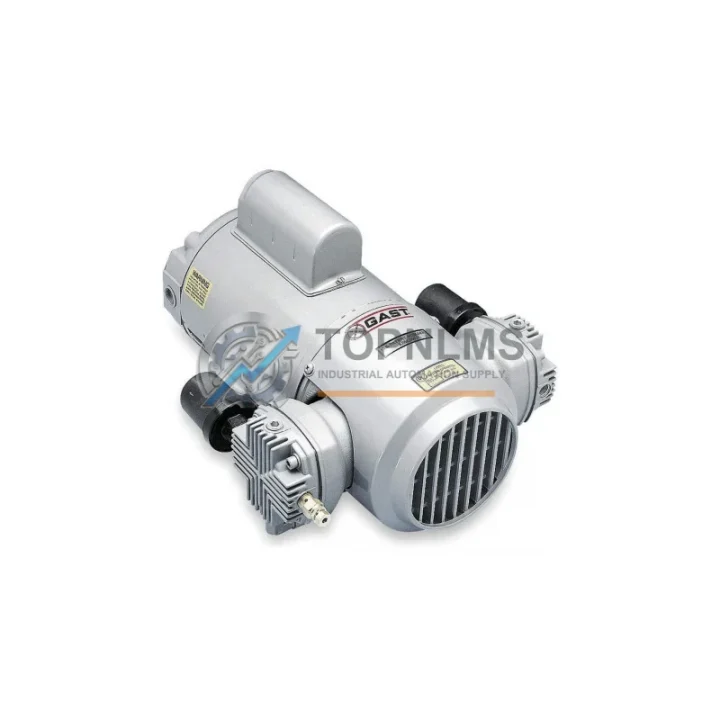

GAST 4LCB-10-M450X Replacement Solution for 4LCB Series: Seamless Transition from Legacy Compressor Systems

When your existing GAST oil-less piston compressor or vacuum pump reaches end-of-life, faces discontinued support, or requires urgent field replacement, the GAST 4LCB-10-M450X delivers a verified drop-in upgrade path for 4LCB Series installations. Engineered for industrial environments where downtime is measured in production losses, this unit is stocked, tested, and ready to ship — minimizing the gap between failure and restoration.

The 4LCB-10-M450X is a dual-function oil-less piston compressor and vacuum pump operating within the GAST 4LCB platform. Its compact footprint, standardized port geometry, and motor interface make it a direct mechanical and electrical replacement for aging 4LCB variants including the 4LCB-10-M300X, 4LCB-10-M400X, and 4LCB-25-M550X. Whether your legacy unit has accumulated excessive run hours, suffered diaphragm or piston wear, or is simply no longer available through OEM channels, the 4LCB-10-M450X restores system function without requiring enclosure redesign or pneumatic line rerouting.

Industrial facilities running GAST compressors in medical device manufacturing, laboratory automation, environmental monitoring, food processing, or general pneumatic control will find the 4LCB-10-M450X compatible with existing 1/4″ NPT and 3/8″ NPT port configurations. The motor frame (M450X designation) aligns with standard NEMA mounting patterns, allowing direct bolt-in replacement on existing compressor bases, control cabinets, and OEM equipment panels without custom adapter plates.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful compressor or vacuum pump replacement rarely involves a single component. In practice, field engineers upgrading from a legacy GAST 4LCB unit will also evaluate adjacent system components to ensure the entire pneumatic and electrical assembly performs reliably post-retrofit.

For installations where the 4LCB-10-M450X is integrated into a control cabinet, the motor starter or contactor — often a Siemens 3RT or Allen-Bradley 100-C series — should be inspected for contact wear and replaced if the legacy compressor caused repeated overload trips. Similarly, the thermal overload relay protecting the motor circuit should be recalibrated or replaced to match the M450X motor’s full-load amperage rating.

Pneumatic systems downstream of the compressor typically include pressure regulators, filter-regulator-lubricator (FRL) assemblies, and solenoid valves. When replacing the 4LCB-10-M450X, it is advisable to inspect SMC or Festo FRL units for clogged filter elements and degraded bowl seals, as these components often share the same service life as the compressor head. Solenoid valves — particularly 2/2 or 3/2 normally-closed types used in vacuum break circuits — should be cycled and tested before the new compressor is commissioned.

In laboratory and medical OEM equipment, the 4LCB-10-M450X often operates alongside pressure transducers and vacuum sensors from brands such as Honeywell or Gems Sensors. These signal devices should be zero-calibrated after the new compressor reaches steady-state operating pressure, as the M450X motor’s slightly higher output may shift the system’s baseline vacuum or pressure setpoint by a measurable margin.

For facilities managing multiple GAST compressor units across production lines, it is common to maintain a parallel inventory of GAST 4HCD or 4HCB series units as cross-platform spares. While these are not direct replacements for the 4LCB-10-M450X, they serve similar duty cycles in adjacent pneumatic zones and can be cross-referenced during a broader compressor fleet modernization program.

Wiring harnesses connecting the motor to the control panel should be inspected for insulation degradation, particularly in high-temperature enclosures. If the legacy 4LCB unit was mounted in a cabinet with poor thermal management, the replacement installation should include a review of cabinet ventilation — adding a panel fan or heat exchanger if ambient temperatures regularly exceed 40°C.

Finally, for systems where the compressor feeds a pneumatic PLC actuator network — such as those using Festo VTUG valve terminals or SMC SY series manifolds — the 4LCB-10-M450X’s flow rate and pressure recovery time should be validated against the manifold’s cycle demand before returning the system to full production speed.

Retrofit Guidance FAQ

Q: Can the 4LCB-10-M450X replace my existing 4LCB-10-M300X or M400X without modifying the pneumatic lines?
A: Yes. The 4LCB-10-M450X shares the same port geometry and NPT thread sizing as earlier M-series variants. No pneumatic line modification is required in standard installations.

Q: Does the M450X motor frame require a new mounting base or adapter plate?
A: No. The M450X designation follows NEMA standard mounting dimensions compatible with existing 4LCB compressor bases and OEM equipment panels. Direct bolt-in replacement is supported.

Q: Is rewiring required when replacing an older 4LCB motor variant?
A: In most cases, no. The motor lead configuration is consistent across the 4LCB M-series. However, always verify the voltage rating and full-load amperage against your existing motor starter or VFD settings before energizing.

Q: Will the 4LCB-10-M450X fit in the same cabinet space as the unit it replaces?
A: Yes. The 4LCB Series maintains a consistent physical envelope across motor variants. No enclosure modification is required for standard panel or base-mount installations.

Q: What is the recommended commissioning procedure after installation?
A: After mechanical installation and electrical connection, run the unit unloaded for 5–10 minutes to verify bearing noise and airflow. Then gradually restore system pressure while monitoring the pressure transducer and thermal overload relay. Log the steady-state vacuum or pressure value as the new system baseline.

Q: Is this unit suitable for continuous-duty applications?
A: The GAST 4LCB-10-M450X is rated for intermittent-to-continuous duty depending on ambient temperature and system back-pressure. Consult the GAST 4LCB Series datasheet for specific duty cycle ratings at your operating pressure.

Warranty Assurance

Every GAST 4LCB-10-M450X unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including motor rotation check, port integrity inspection, and vacuum/pressure performance validation. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3–5 business days upon confirmation of the defect. Our after-sales team responds to technical inquiries within 24 hours on business days. Warranty coverage includes manufacturing defects, premature motor failure, and port seal integrity issues under normal operating conditions. It does not cover damage resulting from incorrect installation voltage, contaminated air supply, or physical impact.

For procurement teams requiring documentation, TOPNLMS provides a certificate of conformance, packing list, and commercial invoice with each shipment. Bulk orders of 3 or more units qualify for priority dispatch and dedicated after-sales support assignment.

Stock is maintained in Xiamen, China, with standard international shipping via DHL, FedEx, or UPS. Lead time for in-stock units is 1–3 business days. Express options are available for urgent replacement scenarios.
