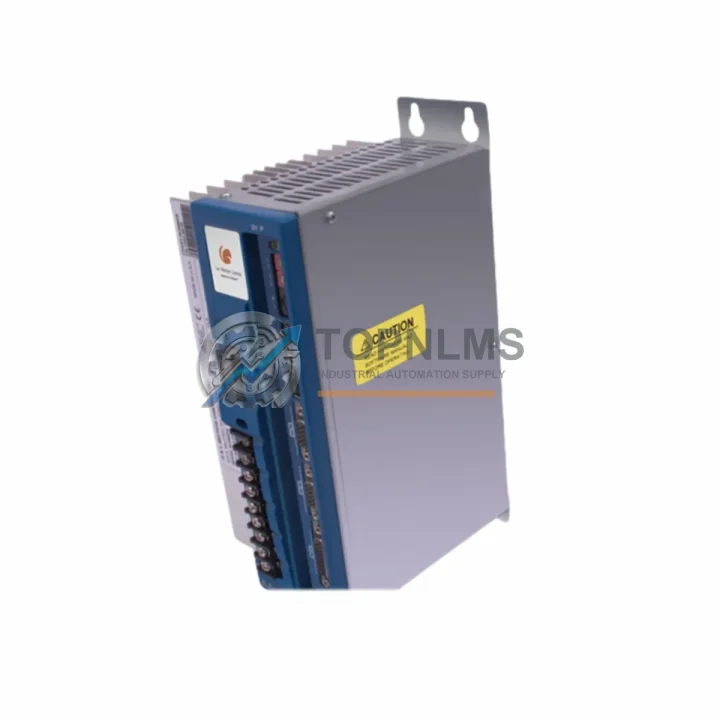

G&L MMC-SD-1.0-230-DN Ruggedized Motion Control Module for Harsh Environments

Product Overview

G&L MMC-SD-1.0-230-DN Ruggedized Motion Control Module for Harsh Environments

The G&L Motion Control MMC-SD-1.0-230-DN is a high-performance modular motion controller engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of the proven MMC Series platform, this 230V DeviceNet-enabled module delivers precise, deterministic motion control where uptime is non-negotiable — from high-temperature foundry floors to dust-laden mining conveyors and vibration-intensive heavy press lines.

Industrial facilities operating under IEC 61508 functional safety frameworks, ATEX-adjacent control architectures, or ISO 13849 machine safety standards require motion controllers that do not merely perform — they must endure. The MMC-SD-1.0-230-DN is built to that standard. Its ruggedized housing and robust internal architecture resist electromagnetic interference (EMI) from variable frequency drives, high-current bus bars, and adjacent servo amplifiers, ensuring signal integrity is maintained even in electrically noisy control cabinets.

In continuous production environments — steel rolling mills, petrochemical pump stations, water treatment dosing systems, and automated mining extraction lines — motion control failures cascade rapidly into costly downtime. The MMC-SD-1.0-230-DN is engineered to eliminate that risk. Its DeviceNet fieldbus interface enables seamless integration with distributed I/O racks, safety PLCs, and supervisory DCS platforms, allowing engineers to build tightly coordinated multi-axis motion sequences without sacrificing network determinism.

Rugged Specifications Table

Comprehensive Protection Solutions

The MMC-SD-1.0-230-DN does not operate in isolation — it is the motion intelligence at the heart of a coordinated control architecture. In a typical heavy-industry control cabinet, it works alongside the G&L MMC-SD-1.0-115-DN (115V variant for North American installations) and the G&L MMC-HD-2.0-230-DN high-drive multi-axis expansion module, enabling scalable motion topologies without replacing the core controller platform.

On the DeviceNet network, the MMC-SD-1.0-230-DN communicates with Allen-Bradley 1756-DNB DeviceNet Bridge modules and Rockwell Automation 1769-SDN Scanner modules, making it fully compatible with ControlLogix and CompactLogix PLC architectures that dominate process industries. For installations requiring safety-rated I/O, it integrates cleanly with Pilz PNOZmulti safety relay modules and Siemens ET 200SP F-DI safety input modules, ensuring the motion axis can be safely de-energized under SIL 2 stop conditions without loss of position data.

Power quality in harsh environments is managed upstream by Phoenix Contact QUINT-PS industrial power supplies and Puls CP10 DIN-rail power supplies, which provide the stable 24VDC logic rail the MMC module’s control circuitry depends on. Surge protection is handled by Weidmüller VPU AC surge arresters mounted at the cabinet entry point, preventing transient voltage spikes — common in facilities with large motor starters — from reaching sensitive motion control electronics.

For communication transparency and remote diagnostics, the MMC-SD-1.0-230-DN pairs with Moxa NPort 5150 serial device servers or HMS Anybus Communicator gateways, enabling legacy RS-232/RS-485 programming interfaces to be accessed over Ethernet without physical presence on the plant floor. Terminal connections within the cabinet are secured using Phoenix Contact PTFIX distribution terminal blocks, which maintain reliable signal continuity even under the thermal cycling and vibration loads typical of 24/7 production environments.

Application in Critical Infrastructure

In oil and gas upstream facilities, the MMC-SD-1.0-230-DN controls the positioning of wellhead valve actuators and pump jack drive systems, where a motion fault can trigger emergency shutdown sequences costing tens of thousands of dollars per hour. Its DeviceNet interface allows the DCS to monitor axis position and velocity in real time, enabling predictive maintenance alerts before mechanical wear becomes a production event.

In underground mining operations, conveyor belt drive systems and ore crusher feed mechanisms rely on precise speed and torque control to prevent belt slip, material spillage, and mechanical overload. The MMC-SD-1.0-230-DN’s robust EMI shielding ensures reliable operation even when large variable frequency drives for 400kW+ motors are mounted in adjacent cabinet sections, a scenario where lesser motion controllers experience communication dropouts and nuisance faults.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module manages turbine governor auxiliary drives, cooling tower fan positioning, and fuel feed conveyor systems. Its 230V AC input eliminates the need for a separate step-down transformer in European and Asian grid-connected installations, simplifying cabinet design and reducing potential failure points.

In water and wastewater treatment plants, the MMC-SD-1.0-230-DN controls dosing pump drives, sludge dewatering press axes, and UV disinfection carousel positioning systems. These applications demand continuous, unattended operation across wide ambient temperature ranges and high-humidity environments — conditions the MMC Series was specifically designed to withstand.

In metallurgical and steel processing facilities, the module drives rolling mill gap adjustment actuators and coiler tension control systems, where sub-millimeter positioning accuracy must be maintained at high cycle rates under extreme thermal and vibration loads. Its deterministic DeviceNet scan cycle ensures that position commands from the supervisory PLC are executed with the timing precision that product quality requires.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every MMC-SD-1.0-230-DN unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty process is documented and traceable — no ambiguity, no hidden exclusions.

Q2: How is each unit tested before shipment?
All units undergo pre-shipment functional verification including power-on self-test, DeviceNet communication handshake validation, and visual inspection for physical integrity. Units sourced from authorized distribution channels are cross-referenced against manufacturer lot records where available. We do not ship untested stock.

Q3: Is the MMC-SD-1.0-230-DN compatible with my existing G&L MMC rack and DeviceNet master?
Yes. The MMC-SD-1.0-230-DN is a standard MMC Series single-axis drive module and is backward-compatible with existing G&L MMC backplane racks. It communicates as a standard DeviceNet slave device and is recognized by any compliant DeviceNet master scanner, including Allen-Bradley, Siemens, and Omron implementations. If you have specific firmware version or EDS file requirements, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement for this part?
Yes. We maintain stock of critical industrial automation spare parts including the MMC-SD-1.0-230-DN and related MMC Series components to support planned maintenance programs, emergency replacements, and capital project builds. We can provide lead time commitments, reserve stock arrangements, and consolidated shipments for multi-unit orders. Contact us to discuss your procurement schedule.
