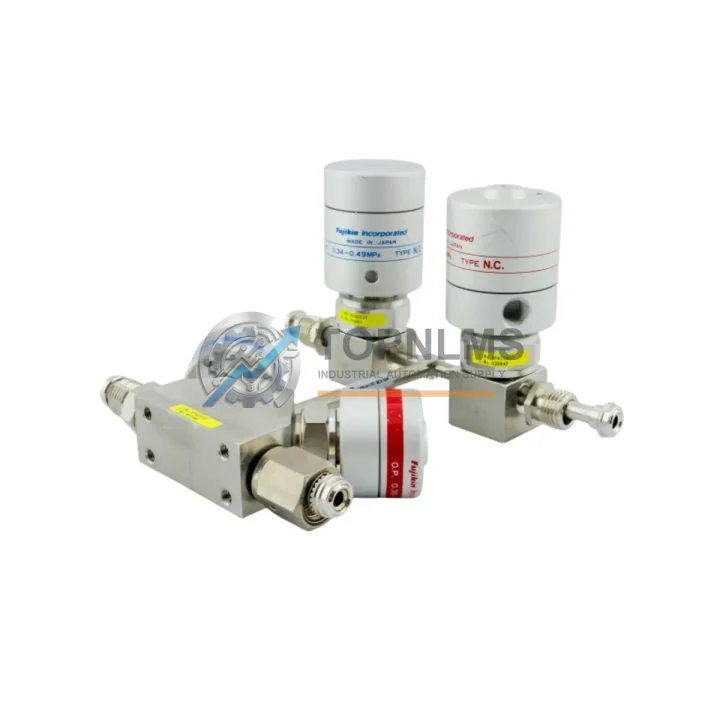

FUJIKIN CENTURA 401948 Replacement UHP Diaphragm Valve

Product Overview

FUJIKIN CENTURA 401948 Replacement UHP Diaphragm Valve: Seamless Transition & Legacy System Compatibility

The FUJIKIN CENTURA 401948 UHP Diaphragm Valve — cross-referenced as 0041-81313 and 0041-94358 — is a precision ultra-high-purity flow-control component engineered for semiconductor process gas delivery systems. As original CENTURA-series equipment ages and OEM support windows close, facilities engineering teams face mounting pressure to source verified replacement valves that maintain process integrity without triggering a full tool qualification cycle. This listing addresses that challenge directly: we stock the CENTURA 401948 as a drop-in replacement and upgrade solution, fully tested and shipped with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTURA gas-delivery system retrofit rarely involves a single component. In practice, facilities teams replacing the CENTURA 401948 diaphragm valve also address adjacent components to restore full system integrity and extend mean time between maintenance events.

The pneumatic solenoid valve manifold that drives the 401948 — typically a FUJIKIN FSSR-series solenoid valve — should be inspected and replaced concurrently if cycle counts exceed OEM service intervals. Downstream of the diaphragm valve, the FUJIKIN UHP mass flow controller (MFC) — such as the FUJIKIN FCS-series — governs precise gas delivery; verifying its calibration after valve replacement prevents process drift. On the inlet side, a FUJIKIN UHP pressure regulator (e.g., FUJIKIN FPR-series) maintains stable upstream pressure, which is critical for repeatable valve actuation.

Within the CENTURA gas box, the FUJIKIN surface-mount valve manifold block and associated VCR face-seal fittings and gaskets are common wear items that should be replaced as a kit to eliminate leak points introduced during disassembly. If the gas-box wiring harness shows insulation degradation, the 24 VDC solenoid coil assembly compatible with CENTURA-series actuators is available as a separate line item.

For facilities upgrading from older CENTURA tool generations to current Applied Materials process modules, the FUJIKIN HFCV-series high-flow control valve may be required at the process chamber inlet. Signal isolation between the tool’s PLC I/O card and the solenoid manifold is best handled through a DIN-rail mounted signal isolator / relay module, ensuring 24 VDC discrete outputs from the chamber controller reach the valve actuators without ground-loop interference. Finally, a UHP stainless-steel filter element installed upstream of the 401948 protects the diaphragm seat from particulate contamination and extends service life significantly.

Retrofit Guidance FAQ

Q: Is the CENTURA 401948 a true drop-in replacement for 0041-81313 and 0041-94358?
A: Yes. The 401948 is the current FUJIKIN part number that supersedes both 0041-81313 and 0041-94358. Port geometry, body dimensions, and actuator interface are identical, allowing direct installation without modification to the gas-box manifold or mounting hardware.

Q: Do I need to re-qualify the process after replacing this valve?
A: In most cases, no. Because the 401948 is a like-for-like replacement with identical wetted materials and flow characteristics, most facilities treat this as a maintenance replacement rather than a process change. Consult your process engineering team and OEM documentation for your specific tool qualification protocol.

Q: What communication protocol does this valve use?
A: The CENTURA 401948 uses discrete 24 VDC pneumatic actuation via solenoid coil — there is no fieldbus or serial protocol involved. The valve open/close state is controlled directly by the chamber PLC’s digital output card, making integration straightforward with any standard I/O module.

Q: How do I handle the VCR fittings during replacement?
A: Always replace VCR gaskets (silver-plated or stainless) when breaking a face-seal connection. Re-use of gaskets is not recommended in UHP service. Torque VCR nuts to OEM specification (typically 1/8 turn past finger-tight for 1/4″ VCR) and perform a helium leak check before returning the tool to process.

Q: What if the physical installation space in my gas box is constrained?
A: The 401948 shares the same body envelope as its predecessors, so no additional clearance is required. If you are migrating from a non-FUJIKIN valve of a different form factor, contact our technical team with your gas-box drawing for a fitment assessment before ordering.

Q: Can this valve handle corrosive process gases?
A: Yes. The 316L electropolished stainless-steel body and PCTFE diaphragm are compatible with a wide range of corrosive UHP process gases including HCl, Cl₂, and NF₃. Confirm compatibility with your specific gas chemistry using FUJIKIN’s published chemical resistance data.

Warranty Assurance

Every FUJIKIN CENTURA 401948 shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional actuation testing and leak verification to confirm it meets UHP service standards. Should a warranty claim arise, our team initiates a replacement dispatch within 2 business days of fault confirmation — minimizing tool downtime and protecting your production schedule.

We maintain bonded inventory of the CENTURA 401948 and its common cross-references, enabling same-day or next-day dispatch for urgent requirements. Export documentation, country-of-origin certificates (Japan), and material traceability records are provided upon request to support your incoming inspection and ERP receiving processes.

For volume procurement, blanket orders, or consignment stocking arrangements, contact our industrial components team directly. We support OEM service depots, independent equipment refurbishers, and fab facilities procurement teams with competitive lead times and transparent pricing.
