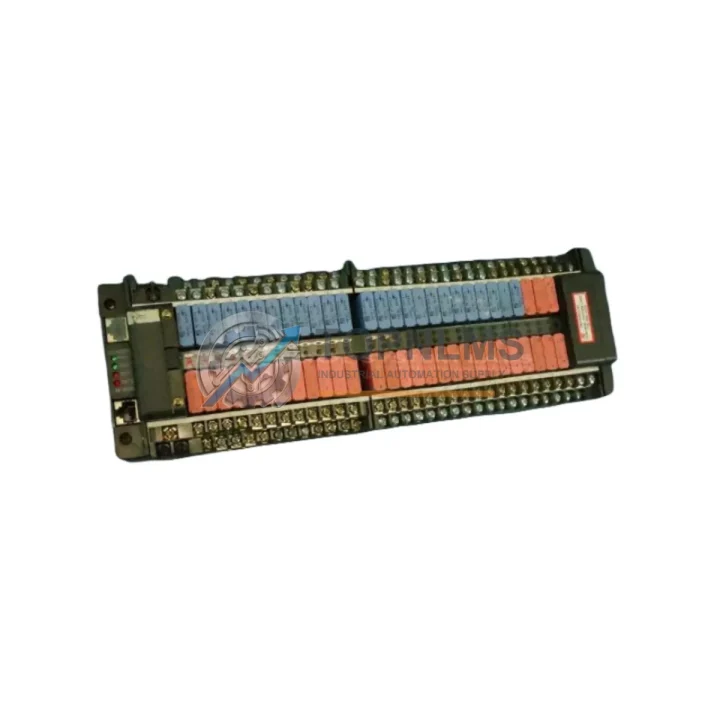

Fuji NB1-P56-AC Replacement Solution for NB Series PLC

Product Overview

Fuji NB1-P56-AC Replacement Solution for NB Series PLC: Smooth Transition & Legacy System Compatibility

The Fuji Electric NB1-P56-AC is an AC input power supply module designed for the NB Series programmable logic controller platform. As industrial facilities face increasing pressure to maintain aging control architectures or migrate to modern equivalents, sourcing a verified, tested replacement for the NB1-P56-AC has become a critical procurement priority. Whether your existing module has failed, is approaching end-of-life, or you are proactively building a spare-parts inventory, TOPNLMS supplies this unit with full pre-shipment testing and a 12-month replacement warranty.

The NB1-P56-AC delivers regulated DC power to the NB Series backplane, supporting the full range of NB Series I/O modules, CPU units, and communication modules installed in the same rack. Its AC input design accepts standard single-phase supply voltages, making it directly compatible with existing panel wiring in most industrial installations without requiring rewiring of the power distribution circuit. When replacing a failed unit, engineers can remove the original module, seat the replacement into the same backplane slot, reconnect the AC terminal block, and restore system power — typically without any changes to the PLC program or I/O configuration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NB Series system migration or spare-parts strategy rarely involves a single component. When replacing or upgrading the NB1-P56-AC power supply module, field engineers typically review the condition of adjacent components in the same control cabinet. The NB Series CPU module — which draws regulated power directly from the NB1-P56-AC via the backplane — should be inspected for firmware currency and battery backup status. If the CPU is also approaching end-of-life, a coordinated replacement minimizes future unplanned downtime.

The NB Series digital input modules and digital output modules seated in the same rack share the backplane power bus supplied by the NB1-P56-AC. Verifying that these I/O modules are within their rated load envelope after installing a new power supply is standard commissioning practice. Similarly, any NB Series analog input or analog output modules used for process variable monitoring or valve positioner control should be confirmed operational after the power supply swap, as analog circuits can be sensitive to supply transients during module replacement.

For systems that rely on serial or fieldbus communication, the NB Series communication module — whether configured for RS-232C, RS-485, or a proprietary Fuji protocol — remains fully operational after an NB1-P56-AC replacement, as the communication stack resides in the CPU and communication module firmware, not in the power supply. If the installation also includes a Fuji Electric MICREX-SX Series controller in an adjacent panel or as a supervisory layer, the inter-system communication links are unaffected by the NB rack power supply change.

Customers upgrading aging NB Series installations sometimes take the opportunity to add a signal isolator or surge protection terminal block between field wiring and the I/O modules. This is particularly relevant in environments with long cable runs, variable-frequency drives, or high-current motor starters in the same cabinet. An NB Series expansion rack with its own power supply may also be present in larger systems; the NB1-P56-AC replacement applies only to the rack in which it is installed, and each rack’s power supply should be assessed independently.

For facilities planning a longer-term migration from the NB Series to a current-generation Fuji Electric platform, the MICREX-F Series or MICREX-SX NS Series controllers offer a structured upgrade path. TOPNLMS can supply components across these platforms to support phased migration projects where the NB Series remains in service during transition.

Retrofit Guidance FAQ

Q: Do I need to modify the AC wiring when replacing the NB1-P56-AC?
No. The NB1-P56-AC uses a standard screw-terminal AC input block. The replacement unit uses the same terminal layout, so existing field wiring can be reconnected directly without modification. Always de-energize the panel before removing or installing the module.

Q: Will my PLC program be affected by the power supply replacement?
No. The NB1-P56-AC is transparent to the CPU and I/O configuration. The PLC program, data registers, and I/O mapping stored in the CPU module are retained in battery-backed or flash memory and are not affected by a power supply swap. Confirm CPU battery status before the replacement if the system has been powered down for an extended period.

Q: Is the NB1-P56-AC compatible with all NB Series rack configurations?
The NB1-P56-AC is designed for the NB Series backplane and occupies the dedicated power supply slot. It is compatible with standard NB Series main racks. Verify your rack model and slot count against the Fuji Electric NB Series hardware manual to confirm fit before installation.

Q: What communication protocols are supported after replacement?
All communication protocols configured in the NB Series CPU and communication modules — including RS-232C, RS-485, and any fieldbus adapters — continue to operate normally after the power supply replacement. No protocol reconfiguration is required.

Q: How much physical space does the NB1-P56-AC require in the control cabinet?
The NB1-P56-AC occupies the same physical footprint as the original NB Series power supply module. No additional DIN rail space or cabinet modification is required for a like-for-like replacement.

Q: Can I use the NB1-P56-AC as a cold spare?
Yes. TOPNLMS recommends maintaining at least one verified spare NB1-P56-AC for critical production lines. Each unit shipped by TOPNLMS undergoes pre-shipment functional testing and is packaged for long-term storage.

Warranty Assurance

Every Fuji Electric NB1-P56-AC supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Prior to dispatch, each unit undergoes a documented pre-shipment inspection that verifies power output regulation, backplane connector integrity, and terminal block condition. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the fault. Our after-sales response target is one business day for warranty inquiries. Customers are encouraged to retain the original packaging and inspection documentation supplied with each shipment to facilitate any warranty process.

For urgent replacement requirements — including same-day quotation, express air freight, and customs documentation support for cross-border shipments — contact the TOPNLMS procurement team directly. We maintain stock of NB Series components and can confirm availability, lead time, and shipping options within hours of inquiry.

Procurement teams sourcing NB1-P56-AC units for planned maintenance shutdowns, insurance spare inventories, or multi-site standardization programs are welcome to request volume pricing and consolidated shipment arrangements.
