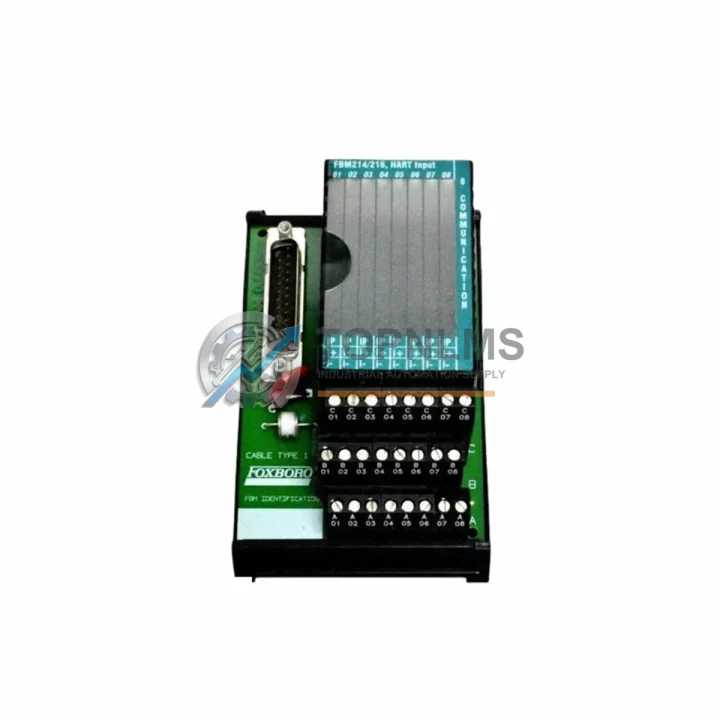

Foxboro P0926GH Replacement Solution for I/A Series

Product Overview

Foxboro P0926GH Replacement Solution for I/A Series – Seamless DCS Upgrade

The Foxboro P0926GH is a precision pressure sensor module designed for the Foxboro I/A Series Distributed Control System (DCS). As legacy DCS installations age and original equipment reaches end-of-life, plant engineers and procurement teams face increasing pressure to source reliable, drop-in compatible replacements that minimize engineering rework, reduce unplanned downtime, and maintain system integrity. TOPNLMS stocks verified P0926GH units ready for immediate dispatch, supporting both emergency replacement and planned maintenance windows.

The P0926GH integrates directly into the I/A Series fieldbus architecture, communicating via the Foxboro Nodebus protocol. This means that when replacing a failed or degraded unit, no changes to the control strategy, FoxDraw configuration, or I/A Series workstation software are required — the replacement module is recognized by the FCP270 Field Control Processor or CP60 Control Processor without re-engineering the loop. This plug-and-play compatibility is critical for facilities running continuous processes where extended shutdowns are not an option.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful P0926GH replacement rarely happens in isolation. In most I/A Series retrofit projects, the pressure sensor module is one component within a broader control architecture that may simultaneously require attention to adjacent hardware. During the replacement process, technicians commonly inspect and, where necessary, replace the FBM (Field Bus Module) — particularly the FBM237 or FBM242 — which serves as the communication bridge between field instruments and the control processor. If the FBM shows signs of degraded communication or intermittent faults, replacing it alongside the P0926GH eliminates ambiguity during post-replacement commissioning.

The FCP270 Field Control Processor is the execution engine for the I/A Series control strategy. In aging installations, the FCP270’s battery-backed memory and internal clock should be verified during any planned maintenance window that includes a sensor module swap. Similarly, the P0916TW power supply module and associated P0922VW baseplate should be inspected for capacitor aging and connector wear — both are common failure points in systems that have operated continuously for over a decade.

For facilities migrating from older SPEC 200 or early I/A Series hardware to current-generation I/A Series components, the P0926GH replacement is often paired with updated termination assemblies (TAs) and signal isolators to ensure clean 4–20 mA signal integrity across the upgraded loop. Where HART communication is required for advanced diagnostics, the P0926GH supports HART pass-through via compatible FBMs, eliminating the need for separate HART multiplexers in most configurations.

In control cabinet environments, the physical swap is straightforward: the P0926GH occupies a standard I/A Series module slot, and no additional DIN rail adapters or bracket modifications are required. Technicians should verify that the I/A Series enclosure fan tray and ventilation clearances remain unobstructed after module replacement, particularly in high-density rack configurations. For sites also upgrading their operator interface, the Foxboro 760CNA Workstation or equivalent HMI platform remains fully compatible with the replaced module without display reconfiguration.

TOPNLMS maintains ready stock of P0926GH units that have been functionally tested prior to shipment. Each unit is individually packaged with ESD protection and accompanied by a test report. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express freight options available for emergency shutdowns. All units are shipped from Xiamen, China, with full export documentation.

Retrofit Guidance FAQ

Q: Does replacing the P0926GH require changes to the FoxDraw control strategy?
A: No. The P0926GH is a direct drop-in replacement. The I/A Series FCP will automatically recognize the module upon restart without any modification to the existing control strategy or block configuration.

Q: Is the wiring terminal layout identical to the original module?
A: Yes. The P0926GH uses the same terminal block layout as the original. Field wiring can be reconnected terminal-for-terminal without re-labeling or re-routing.

Q: What communication protocol does the P0926GH use?
A: The module communicates via the Foxboro Nodebus protocol within the I/A Series architecture. It is not compatible with Profibus or Modbus-based systems without an appropriate gateway FBM.

Q: Can the P0926GH be installed in an older I/A Series rack alongside legacy FBMs?
A: Yes, provided the baseplate and power distribution are compatible with the current module generation. Mixed-generation racks are common in retrofit scenarios and are supported by the I/A Series architecture.

Q: How long does commissioning take after installation?
A: In a direct replacement scenario with no configuration changes, commissioning typically takes 15–30 minutes, including module seating, wiring verification, and loop check. Full process restart time depends on plant procedures.

Q: What if the replacement module shows a fault on first power-up?
A: Contact TOPNLMS immediately. Our 12-month warranty covers all functional defects. We will arrange a replacement unit dispatch within 24 hours of fault confirmation.

Warranty Assurance

Every Foxboro P0926GH unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify communication integrity, signal output accuracy, and power consumption within specification. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 24 hours of receiving confirmation of the defect. Return shipping for warranty claims is coordinated by our after-sales team. We do not require the original unit to be returned before dispatching the replacement in emergency situations — minimizing your downtime is our priority.

Our procurement guarantee includes: accurate part number verification before shipment, ESD-safe packaging, full export documentation for international shipments, and a dedicated after-sales contact for post-installation technical queries. For volume orders or long-term supply agreements, contact our sales team to discuss consignment stock arrangements and priority dispatch SLAs.
