FOXBORO FBM201 RH914SQ Original Industrial Spare FBM200 Compatible

Product Overview

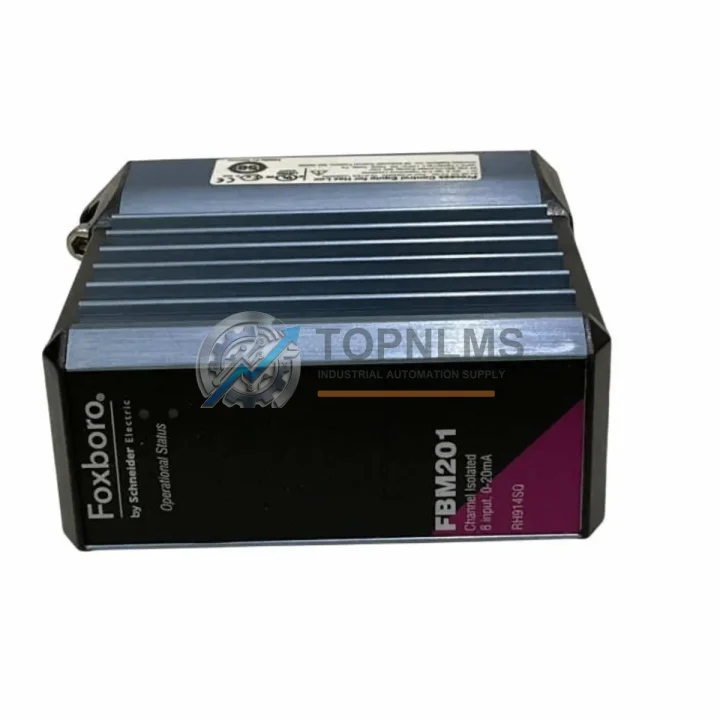

FOXBORO FBM201 RH914SQ: FBM200 Series DCS Interface Module for Industrial System Stability

The FOXBORO FBM201 RH914SQ is an original spare part from the FBM200 Series, designed for use within Foxboro I/A Series Distributed Control Systems (DCS). In process industries where continuous uptime is non-negotiable — including petrochemical, power generation, pulp and paper, and water treatment — the FBM201 RH914SQ serves as a critical field bus module responsible for managing I/O communication between field instruments and the DCS controller. Sourcing a verified original replacement ensures that your control architecture maintains its certified signal integrity, timing accuracy, and system compatibility without requiring re-engineering or reconfiguration.

Industrial maintenance teams operating Foxboro I/A Series systems understand that module-level failures rarely occur in isolation. When an FBM201 RH914SQ shows signs of degradation — intermittent communication faults, diagnostic alarms on the DCS workstation, or loss of field device feedback — the downstream impact on process stability can be immediate. Having a pre-tested, shelf-ready replacement on hand is the single most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance window for a Foxboro I/A Series control cabinet is the optimal time to audit not just the FBM201 RH914SQ, but the entire I/O subsystem that depends on it. The FBM200 Series architecture distributes field signals across multiple interface modules, meaning a single degraded module can introduce latency or data errors that propagate across the control loop. During inspection, maintenance engineers should simultaneously verify the condition of adjacent FBM202 and FBM204 modules, which handle analog and digital I/O respectively within the same baseplate assembly.

Power integrity is equally critical. The I/A Series power supply modules — including the FPS0810 and related redundant power units — should be load-tested during any planned outage. A marginal power supply that passes basic voltage checks under light load may still cause intermittent resets of interface modules under full I/O load. Replacing the FBM201 RH914SQ without auditing the upstream power rail is a common source of repeat failures in aging DCS installations.

Signal wiring and termination assemblies also warrant attention. The FBM200 Series uses dedicated termination assemblies (TAs) that connect field cables to the module baseplate. Corroded or loose termination points on these assemblies — such as the FBM201-compatible TA models — can mimic module faults and should be inspected and re-torqued as part of any corrective maintenance action. Similarly, the Nodebus communication cable connecting the FBM baseplate to the FCP270 or CP60 controller should be inspected for physical damage, connector oxidation, and proper seating.

For facilities running extended I/A Series installations, it is advisable to maintain a minimum spares inventory that includes at least one FBM201 RH914SQ, one compatible power supply module, one spare Nodebus cable assembly, and one set of termination assemblies. Facilities with redundant DCS configurations should also stock a spare FCP270 Field Control Processor, as controller-level failures — though less frequent — carry the highest operational impact. Proactive stocking of these components, combined with a documented inspection cycle, is the foundation of a resilient DCS maintenance program.

Strategic Replacement Solutions

The FBM201 RH914SQ is a direct original replacement for aging or failed FBM201 modules within the Foxboro I/A Series ecosystem. Unlike third-party alternatives that may require firmware reconfiguration or system re-validation, an original FOXBORO FBM201 RH914SQ installs as a drop-in replacement — preserving all existing I/O channel assignments, calibration data stored in the DCS database, and communication parameters without modification.

For plants operating legacy I/A Series systems that are no longer under OEM support contracts, sourcing original spare modules from specialist industrial distributors is the most cost-effective path to system longevity. Replacing a failed FBM201 with a verified original unit eliminates the risk of compatibility issues that arise from using refurbished modules of uncertain firmware revision. It also avoids the capital expenditure and process disruption associated with a full DCS migration, which can run into millions of dollars for a mid-sized process plant.

When planning a phased system upgrade, the FBM201 RH914SQ can serve as a bridge component — maintaining operational stability in the existing I/A Series architecture while new control infrastructure is commissioned in parallel. This approach allows engineering teams to validate the new system against live process data before cutover, significantly reducing commissioning risk.

Support FAQ

Q1: Is the FBM201 RH914SQ a new or refurbished unit?
All units supplied are original FOXBORO components. Each module undergoes functional testing prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility with my existing I/A Series system?
The FBM201 RH914SQ is compatible with standard FBM200 Series baseplates within the Foxboro I/A Series DCS. Compatibility can be confirmed by cross-referencing your system’s I/O configuration database and the existing module part number on the baseplate label. If you require assistance, contact our technical team with your system’s FCP model and software version.

Q3: What is the typical lead time and shipping method?
In-stock units are dispatched within 1–3 business days. International shipments are handled via DHL Express, FedEx International Priority, or EMS, with tracking provided. Estimated transit times vary by destination: 3–5 days for most of Asia, 5–8 days for Europe and the Middle East, and 7–12 days for the Americas.

Q4: Can I return the module if it does not resolve my system fault?
Yes. If the FBM201 RH914SQ does not resolve the diagnosed fault and is returned in its original, uninstalled condition within 30 days of receipt, a full refund or exchange will be arranged. We recommend performing a DCS diagnostic log review before installation to confirm the module is the root cause of the fault. Our technical team can assist with fault interpretation if needed.
