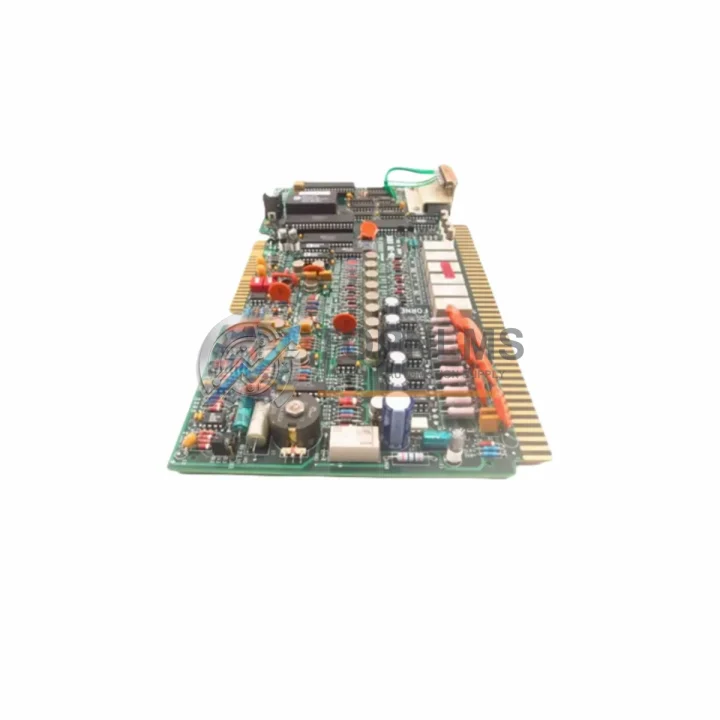

FORNEY RM DR6101E Replacement for RM Series

Product Overview

FORNEY RM DR6101E Replacement for RM Series: Smooth Transition & Legacy System Compatibility

When your existing FORNEY RM Series control system reaches end-of-life or a critical amplifier card fails, unplanned downtime becomes your most expensive problem. The FORNEY RM DR6101E Dual Range Amplifier Card is a proven, in-stock replacement solution engineered to restore your RM Series flame detection and control system to full operational status — with minimal rewiring, no firmware overhaul, and no rack modification required.

Industrial facilities running legacy FORNEY RM Series flame monitoring systems — including burner management panels, combustion control cabinets, and boiler safety interlocks — frequently encounter obsolete or discontinued amplifier cards that are no longer available through OEM channels. The RM DR6101E addresses this gap directly. Its dual-range detection capability covers both ultraviolet (UV) and infrared (IR) flame signal inputs, making it a versatile drop-in replacement across a wide range of RM Series chassis configurations.

For engineers managing a retrofit or emergency replacement, the RM DR6101E slots directly into the existing RM Series card rack without requiring new backplane wiring. Field terminals retain their original assignments, and the card’s signal conditioning circuitry is fully compatible with the RM Series scanner inputs — including the FORNEY RM UV Scanner and RM IR Scanner models commonly installed in refinery, power generation, and petrochemical applications. This means your technicians can complete a card swap during a scheduled maintenance window rather than a full system outage.

In systems where the RM Series rack also houses companion modules such as the FORNEY RM DR6100E Single Range Amplifier Card or the RM DR6102E Dual Range Amplifier Card with Relay Output, the RM DR6101E integrates seamlessly within the same chassis. Mixed-card configurations are fully supported, allowing partial upgrades without disrupting adjacent channels or forcing a full panel replacement.

Communication and interlock wiring to upstream PLCs or DCS platforms — whether a Honeywell TDC 3000 safety controller, an ABB AC800M process controller, or a legacy Allen-Bradley PLC-5 hardwired interlock — remains unchanged. The RM DR6101E outputs a standard relay contact signal compatible with existing I/O termination assemblies, eliminating the need for signal converters or intermediate relay modules.

For facilities undergoing a broader control system modernization — migrating from a legacy FORNEY RM Series panel to a modern Siemens S7-300 or S7-1500 safety PLC, or integrating with a Rockwell Automation ControlLogix platform — the RM DR6101E serves as a reliable bridge component during the transition period. It maintains flame monitoring continuity while the broader migration project proceeds in phases, protecting production uptime and regulatory compliance throughout the upgrade cycle.

Power supply compatibility is another key advantage. The RM DR6101E operates on the standard RM Series rack power bus (24 VDC), meaning no additional power supply module or voltage conversion is required. In cabinets where a FORNEY RM PS6000 Power Supply is already installed, the replacement card draws within the existing power budget without requiring a power audit or load recalculation.

For sites where the original RM Series programming tool or configuration software is no longer available, the RM DR6101E requires no software configuration — all sensitivity and range settings are hardware-selectable via onboard DIP switches, consistent with the original RM Series design philosophy. This eliminates dependency on legacy programming cables or discontinued configuration utilities, simplifying the replacement process for maintenance teams without specialized PLC programming resources on site.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RM Series migration rarely involves a single card replacement. In practice, engineers sourcing the RM DR6101E are typically also evaluating adjacent components within the same control cabinet or system platform. The FORNEY RM PS6000 Power Supply is a frequent co-replacement item, particularly in aging panels where the original power supply has accumulated significant operating hours. Similarly, the FORNEY RM DR6102E Dual Range Amplifier Card with Relay Output is often sourced alongside the DR6101E to standardize spare parts inventory across multi-burner systems.

For facilities integrating the RM Series output into a modern DCS or safety PLC, signal isolator modules — such as those from the Phoenix Contact MINI Analog series or Pepperl+Fuchs KFD range — are commonly used to condition the relay output before it enters the new I/O termination assembly. Where the upstream controller is a Siemens ET 200SP distributed I/O or a Rockwell 1756-IB16 ControlLogix digital input module, a signal isolator ensures clean, noise-free interlock signals across the interface boundary.

In retrofit projects where the entire RM Series panel is being replaced rather than repaired, the RM DR6101E is often used as a temporary operational bridge while the new burner management system (BMS) controller — such as a Honeywell FSC Safety Controller or Siemens SIMATIC S7-1500F — is being commissioned in parallel. This phased approach keeps the process running safely while the new system undergoes FAT and SAT validation.

Programming cables and configuration tools are not required for the RM DR6101E, but for broader RM Series system documentation and diagnostics, engineers often reference the FORNEY RM Series Technical Manual alongside standard RS-232 serial communication adapters used with older FORNEY configuration utilities. Spare RM Series terminal blocks and card ejector tools are also recommended as part of a complete maintenance kit when performing card-level replacements in live panels.

Retrofit Guidance FAQ

Q: Does the RM DR6101E require any rewiring when replacing an older RM Series amplifier card?
No. The RM DR6101E is pin-compatible with the existing RM Series card rack terminal block. Field wiring from the UV or IR scanner remains connected to the same terminals. No rewiring is required for a standard card swap.

Q: Is the RM DR6101E compatible with both UV and IR scanner inputs?
Yes. The dual-range design supports both ultraviolet and infrared flame signal inputs. Sensitivity and range selection is configured via onboard DIP switches, consistent with the original RM Series hardware interface.

Q: Can the RM DR6101E be used in a mixed-card RM Series rack alongside other amplifier card models?
Yes. The RM DR6101E operates independently within its assigned card slot and does not interfere with adjacent cards. Mixed configurations with RM DR6100E or RM DR6102E cards in the same chassis are fully supported.

Q: What communication protocol does the RM DR6101E use for PLC or DCS integration?
The RM DR6101E outputs a hardwired relay contact signal (NO/NC). This is compatible with any PLC or DCS digital input module. No fieldbus, Modbus, or Profibus configuration is required.

Q: How much physical space does the RM DR6101E require in the control cabinet?
The RM DR6101E occupies a single standard RM Series card slot. No additional mounting hardware, DIN rail adapters, or cabinet modifications are required.

Q: What is the lead time and shipping arrangement for the RM DR6101E?
The RM DR6101E is in stock at our Xiamen warehouse. Orders are typically dispatched within 1–3 business days. International shipments are available via DHL, FedEx, and UPS with full tracking. Express delivery options are available for urgent replacement requirements.

Warranty Assurance

Every FORNEY RM DR6101E Dual Range Amplifier Card supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify relay output operation, DIP switch functionality, and physical connector integrity. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our after-sales response target is within 24 hours of claim submission. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Letter of Conformance and country-of-origin certificates are available upon request. All units are shipped in anti-static packaging with appropriate cushioning for international freight.

TOPNLMS maintains stock of the RM DR6101E and related RM Series components to support emergency replacement requirements. If you are managing a critical system outage or planning a scheduled maintenance window, contact our technical sales team to confirm availability and arrange priority dispatch.
