FORNEY AFS-6VDC-C D464889 Original Industrial Spare AFS Compatible

Product Overview

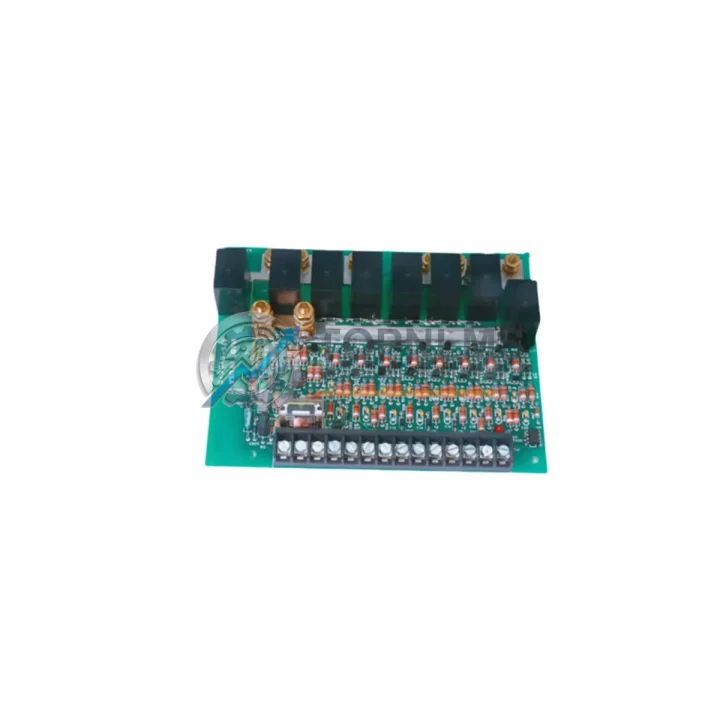

FORNEY AFS-6VDC-C D464889: Original AFS Series Relay Module for Industrial System Stability

The FORNEY AFS-6VDC-C (Part No. D464889) is an original industrial relay module engineered for demanding automation environments where system uptime and electrical reliability are non-negotiable. As a genuine AFS Series component, this relay module delivers consistent 6VDC coil actuation performance across a wide range of PLC-driven control panels, motor control centers, and distributed I/O cabinets. Whether you are executing a scheduled shutdown inspection, responding to an unplanned fault, or building a strategic spare parts inventory, the AFS-6VDC-C is a proven, drop-in replacement that preserves your existing wiring topology and control logic without modification.

In modern industrial facilities — from automotive assembly lines to chemical processing plants and discrete manufacturing cells — relay modules are among the highest-turnover components in any control cabinet. Their role as the interface between low-voltage PLC outputs and higher-power field devices means they are subject to continuous switching cycles, thermal stress, and inductive load transients. Sourcing an original, tested replacement like the FORNEY AFS-6VDC-C D464889 eliminates the risk of counterfeit substitutes that can introduce latent failures and void system warranties.

Critical Technical Specs

Preventive Maintenance Strategy

A relay module failure rarely occurs in isolation. In most control cabinet audits, technicians find that when one AFS-6VDC-C relay shows signs of contact wear — evidenced by increased coil current draw, intermittent output faults, or visible arc erosion on the contact faces — adjacent components in the same electrical circuit are often approaching end-of-life as well. A disciplined preventive maintenance strategy treats the relay module replacement as a trigger for a broader cabinet inspection.

When replacing the AFS-6VDC-C D464889, maintenance engineers should simultaneously inspect the relay base socket (FORNEY AFS-compatible 14-pin base) for contact oxidation and mechanical fatigue. The 24VDC or 5VDC power supply module feeding the relay coil circuit should be load-tested, as voltage sag under load is a common cause of relay chatter and premature contact failure. If the relay is driven by a PLC digital output module — such as a Siemens SM 322 DO or equivalent transistor output card — verify that the output channel’s current sourcing capacity remains within specification, since degraded output channels can cause marginal coil energization.

The terminal blocks and wiring ferrules on the relay’s load side deserve close attention: loose terminations generate resistive heating that accelerates insulation degradation and can cause nuisance trips. In the same inspection cycle, check the fuse modules or miniature circuit breakers protecting the relay output circuits — a relay that has been switching a borderline overload may have caused repeated micro-trips that have weakened the fuse element without blowing it completely. Replacing the fuse module alongside the relay is low-cost insurance against a secondary failure.

For systems using signal isolators or analog input modules in the same cabinet, verify that the relay switching transients are not coupling noise into sensitive measurement circuits. Installing or inspecting RC snubber modules or freewheeling diode assemblies on inductive loads controlled by the relay is a best practice that significantly extends contact life. Finally, if the control system includes a communications module (Profibus DP, Profinet, or Modbus RTU) mounted in the same backplane or DIN rail section, confirm that the module’s diagnostic LEDs show no communication errors that could indicate a ground loop introduced by a failing relay.

Proactive spare parts planning should include at minimum: the AFS-6VDC-C D464889 relay module itself, the compatible relay base, a spare I/O module for the controlling PLC rack, and a set of terminal block end stops and jumper bridges. For facilities running legacy FORNEY or equivalent relay logic panels, maintaining a buffer stock of 3–5 units of the AFS-6VDC-C ensures that a single component failure never becomes a multi-day production stoppage.

Strategic Replacement Solutions

The FORNEY AFS-6VDC-C D464889 is a direct replacement for aging relay modules in legacy control panels that were originally commissioned in the 1990s and 2000s. Many of these systems remain in service because their core logic is sound and the cost of full PLC migration is prohibitive. The AFS Series relay module’s standardized footprint and coil voltage make it an ideal like-for-like substitute that requires no rewiring, no software changes, and no recalibration of the control system.

For maintenance teams managing multiple production lines, the ability to stock a single relay module type that covers a broad range of switching applications — from conveyor motor starters to safety interlock circuits and alarm annunciator panels — dramatically simplifies inventory management. The AFS-6VDC-C’s SPDT contact configuration provides both normally-open and normally-closed outputs, giving engineers flexibility to adapt the module to different circuit topologies without sourcing a different part number.

Compared to sourcing aftermarket or remanufactured relays, the original FORNEY AFS-6VDC-C D464889 offers documented electrical performance data, traceable manufacturing quality, and compatibility assurance with existing AFS relay bases. This eliminates the risk of dimensional mismatches, coil impedance deviations, or contact material substitutions that can cause subtle but damaging performance differences in precision control applications. Every unit shipped from TOPNLMS is tested for coil continuity, contact resistance, and insulation integrity before dispatch.

Support FAQ

Q1: Is the AFS-6VDC-C D464889 compatible with all FORNEY AFS Series relay bases?
Yes. The AFS-6VDC-C is designed for use with standard FORNEY AFS Series 14-pin relay bases. Before installation, verify that the base socket contacts are clean and undamaged. If the existing base shows signs of arcing or deformation, replace it simultaneously with the relay module to ensure reliable contact engagement.

Q2: What is the recommended replacement interval for this relay module in high-cycle applications?
For applications with switching frequencies exceeding 10 cycles per minute (e.g., conveyor control, packaging machinery), we recommend proactive replacement every 12–18 months or after approximately 500,000 switching cycles, whichever comes first. In low-cycle applications such as alarm circuits or safety interlocks, the module may remain serviceable for 5+ years, but annual contact resistance checks are advised.

Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
Every AFS-6VDC-C D464889 unit undergoes pre-shipment testing including coil continuity verification, contact resistance measurement (≤ 100mΩ), and hi-pot insulation testing. The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.

Q4: Can I use this relay module as a direct replacement without modifying my PLC program?
Yes, provided your existing system uses a FORNEY AFS Series relay base with a 6VDC coil circuit. The AFS-6VDC-C is a pin-compatible, electrically equivalent replacement. No PLC program changes, I/O address remapping, or hardware configuration updates are required. Always de-energize the circuit and verify zero voltage before removing or installing the relay module.
