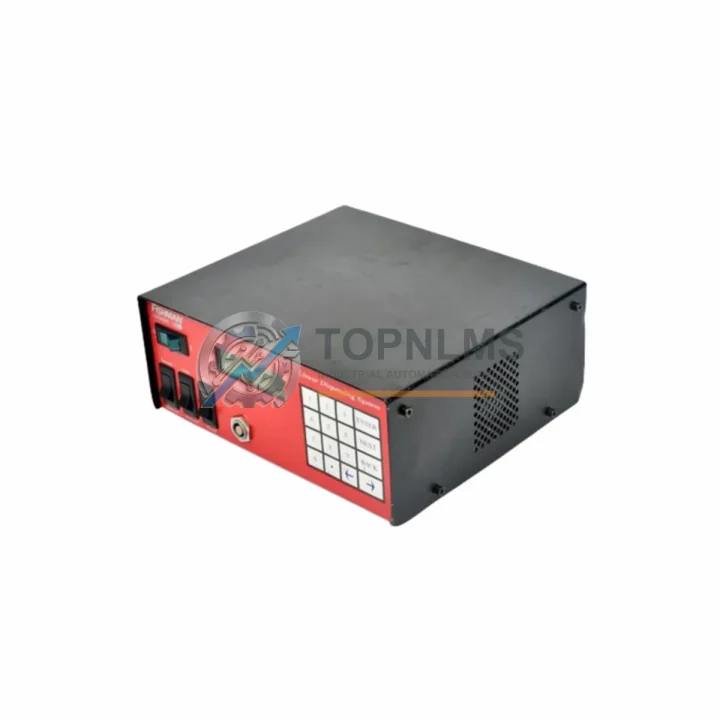

FISHMAN LDS9000-3 Ruggedized Linear Drive Module: Industrial Resilience for Harsh Environments

The FISHMAN LDS9000-3 is a precision-engineered linear drive system module from the LDS9000 Series, purpose-built to deliver consistent, reliable motion control performance in the most demanding industrial environments. Whether deployed in high-temperature foundries, high-humidity water treatment facilities, dust-laden mining operations, or vibration-intensive heavy manufacturing lines, the LDS9000-3 maintains stable output and precise positioning accuracy where lesser components fail. Its ruggedized construction addresses the full spectrum of industrial hazards — thermal stress, mechanical shock, electromagnetic interference (EMI), and corrosive atmospheres — making it a trusted backbone component for continuous production systems that cannot afford unplanned downtime.

Designed for seamless integration into modern PLC-based and DCS-based control architectures, the FISHMAN LDS9000-3 interfaces reliably with a wide range of industrial controllers, I/O modules, and motion coordinators. Its signal integrity under EMI-rich conditions ensures that command pulses from the master controller reach the drive without distortion, preserving positioning repeatability across thousands of operating cycles. This makes it particularly valuable in automated assembly lines, robotic welding cells, precision cutting systems, and multi-axis gantry applications where motion accuracy directly impacts product quality and throughput.

Rugged Specifications Table

Comprehensive Protection Solutions

The FISHMAN LDS9000-3 is rarely deployed in isolation — it operates as a critical node within a broader motion and control ecosystem. In a typical control cabinet installation, it works in concert with a FISHMAN LDS9000 series servo controller, which provides the coordinated motion profile and closed-loop feedback management. Power conditioning for the drive is typically handled by a dedicated industrial power supply module rated for the cabinet’s DC bus requirements, ensuring that voltage fluctuations on the plant floor do not propagate into the drive’s logic circuits.

For applications requiring safety-rated stop functions, the LDS9000-3 is commonly paired with a safety relay module or a dedicated safety PLC I/O module that monitors the drive’s enable signal and enforces STO (Safe Torque Off) or SS1 (Safe Stop 1) functions in compliance with IEC 62061 or ISO 13849 requirements. Communication between the drive and the supervisory PLC is often routed through a PROFIBUS DP communication module or an EtherCAT gateway module, enabling real-time status reporting, fault diagnostics, and parameter adjustment without interrupting production.

On the I/O side, terminal modules and distributed I/O blocks aggregate sensor signals — limit switches, encoder feedback, proximity sensors — and relay them to the PLC’s input cards with clean, debounced signals. Surge protection terminal blocks at the cabinet entry point guard against transient overvoltages from long cable runs across the plant floor. In high-vibration environments such as press lines or mining conveyors, DIN rail mounting accessories and vibration-damping brackets are used to secure the LDS9000-3 and adjacent modules, preventing connector fatigue and intermittent faults that are notoriously difficult to diagnose in the field.

Variable frequency drives (VFDs) operating nearby can introduce significant harmonic distortion and common-mode noise onto the shared DC bus. The LDS9000-3’s integrated EMI filter and isolated signal paths mitigate this risk, but for the most noise-sensitive installations, an additional line reactor or EMI filter module installed upstream of the drive provides an extra layer of protection. This layered approach to electromagnetic compatibility is standard practice in petrochemical control rooms and steel mill automation panels where multiple high-power drives operate simultaneously.

Application in Critical Infrastructure

In oil and gas processing facilities, the FISHMAN LDS9000-3 is deployed in valve actuator positioning systems and pipeline inspection equipment where precise linear displacement must be maintained under continuous duty cycles, elevated ambient temperatures, and the ever-present risk of vibration from compressors and pumps. Its ability to maintain positioning accuracy without frequent recalibration reduces maintenance intervention in hazardous classified areas.

In mining and mineral processing, the module drives conveyor positioning systems, ore sampling mechanisms, and crusher feed control actuators. The harsh combination of coal dust, silica particulate, moisture ingress, and mechanical shock from blasting operations demands a drive module with robust mechanical construction and sealed connector interfaces — characteristics that define the LDS9000 Series design philosophy.

In power generation and electrical utilities, the LDS9000-3 supports turbine blade pitch control test rigs, transformer tap changer positioning systems, and circuit breaker mechanism testing equipment. The precision and repeatability of the linear drive ensure that safety-critical mechanical operations are executed within tight tolerance bands, supporting both operational efficiency and regulatory compliance.

In water and wastewater treatment plants, the module controls sluice gate actuators, chemical dosing pump positioning, and filter backwash valve mechanisms. The high-humidity environment — often exceeding 80% RH — combined with chemical vapors from chlorination and pH adjustment processes makes corrosion resistance and sealed construction essential. The LDS9000-3’s industrial-grade component selection addresses these requirements directly.

In metallurgy and steel production, the drive module is integrated into rolling mill gap control systems, ladle transfer car positioning, and continuous casting mold oscillation drives. These applications demand millisecond-level response times and the ability to sustain full-load operation across extended production campaigns without thermal derating — a benchmark the LDS9000-3 meets through its optimized thermal management design.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If a unit exhibits a fault within the warranty period, contact TOPNLMS at [email protected] with your order number and a description of the fault. We will arrange return shipping, conduct a technical inspection, and provide either a repaired unit or a direct replacement within an agreed lead time. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification.

Q2: How is each unit tested before shipment?
Every FISHMAN LDS9000-3 unit sourced and dispatched by TOPNLMS undergoes a pre-shipment functional verification process. This includes power-on testing, control signal response verification, and a visual inspection of connectors, housing integrity, and labeling. Units that do not pass functional verification are quarantined and not shipped. A test record is maintained for each unit and can be provided upon request for quality-critical procurement processes.

Q3: Is the LDS9000-3 compatible with my existing FISHMAN LDS9000 Series system or third-party PLCs?
The FISHMAN LDS9000-3 is designed for native compatibility within the LDS9000 Series ecosystem, including FISHMAN LDS9000 series controllers and associated servo amplifiers. It also supports standard industrial control interfaces (pulse/direction, analog command, and common fieldbus protocols via gateway modules), making it compatible with PLCs from major manufacturers including Siemens, Mitsubishi, Omron, and Rockwell Automation. If you have a specific compatibility question regarding your existing system architecture, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains dedicated inventory of FISHMAN LDS9000 Series components to support both immediate replacement needs and planned maintenance programs. For customers operating multiple units across a production facility, we offer reserved stock arrangements and priority fulfillment agreements. Our sourcing network ensures supply continuity even for modules that have reached end-of-standard-production status, supporting the long operational lifecycles typical of heavy industrial installations. Contact [email protected] to discuss your long-term supply requirements.
