Fisher CL6821X1-A6 Ruggedized Analog I/O Module

Product Overview

Fisher CL6821X1-A6 Ruggedized Analog I/O Module for Harsh Industrial Environments

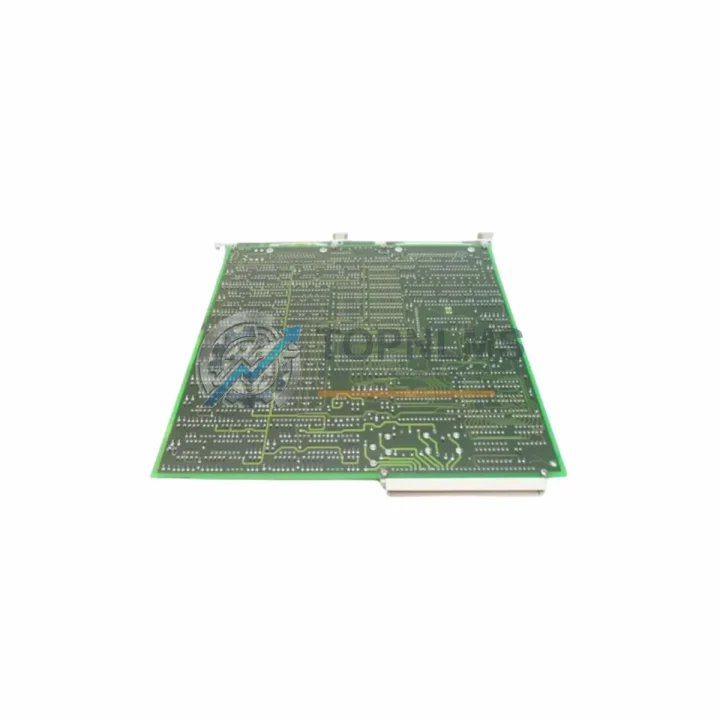

The Fisher CL6821X1-A6 (alternate part number 12P0663X032) is a ruggedized analog input/output module engineered for the Emerson DeltaV distributed control system platform. Designed to deliver unwavering signal integrity in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, high-vibration heavy machinery floors, and zones with intense electromagnetic interference — this module is a cornerstone component for engineers who cannot afford control-loop failures in continuous production lines.

Whether deployed in a redundant DeltaV controller cabinet alongside the DeltaV MD Plus Controller (VE3005) or integrated into a marshalling panel with DeltaV CHARM I/O cards, the CL6821X1-A6 maintains precise 4–20 mA analog signal conditioning across all 8 channels without drift or cross-channel interference. Its robust backplane connector and conformal-coated PCB make it a preferred choice for engineers replacing aging I/O cards in brownfield DeltaV systems where downtime is measured in production losses rather than hours.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated DeltaV control architecture, the CL6821X1-A6 analog I/O module does not operate in isolation — it is part of a tightly coordinated ecosystem of control, power, and communication hardware. In a typical process plant control cabinet, this module works in concert with the DeltaV MD Controller (VE3001) or VE3005 MD Plus Controller to execute PID control loops for flow, pressure, temperature, and level transmitters. Redundant power is supplied through DeltaV Power Supplies (PS2), ensuring that even during a single power supply failure, the analog I/O channels remain live and the process loop stays closed.

For field-side protection in hazardous or intrinsically safe zones, the CL6821X1-A6 is commonly paired with Emerson DeltaV Intrinsic Safety (IS) Barriers or MTL Zener barriers to protect both the module and field instruments from fault currents. In marshalling cabinets, DeltaV CHARM I/O cards and terminal blocks (e.g., Phoenix Contact PTFIX series) provide the physical wiring interface between field cables and the DeltaV backplane, reducing installation complexity and improving signal traceability.

Communication integrity across the DeltaV network is maintained by DeltaV Ethernet switches and DeltaV Workstation Nodes, which provide the FOUNDATION Fieldbus or HART pass-through capability that many analog field devices rely on. For sites requiring SIL-rated safety loops, the CL6821X1-A6 is often deployed alongside DeltaV SIS Logic Solvers and DeltaV Safety I/O modules, forming a complete safety instrumented system (SIS) architecture that meets IEC 61511 requirements. Relay output modules such as the DeltaV DO module (KJ3002X1-BA1) are frequently installed in the same chassis to handle discrete shutdown commands triggered by analog threshold breaches detected through the CL6821X1-A6 channels.

Application in Critical Infrastructure

The Fisher CL6821X1-A6 has established a strong track record across the most demanding sectors of critical infrastructure worldwide. In upstream oil and gas facilities — including offshore platforms and onshore wellhead control panels — this module handles analog signals from pressure transmitters, flow meters, and temperature sensors in environments where salt spray, vibration from rotating equipment, and wide ambient temperature swings are daily realities. Its conformal-coated board resists corrosion, and its DeltaV backplane architecture ensures that a single module failure does not cascade into a full controller shutdown.

In thermal and hydroelectric power generation plants, the CL6821X1-A6 monitors turbine inlet temperatures, steam pressure, and generator cooling water flow — all critical parameters where a missed analog reading can trigger an unplanned outage. The module’s low-latency signal processing ensures that the DeltaV controller receives real-time process data for fast PID response, which is essential in load-following power plants that must respond to grid demand changes within seconds.

In municipal water treatment and wastewater facilities, the module manages analog signals from pH sensors, dissolved oxygen probes, and chemical dosing pumps. These environments are characterized by high humidity, chemical vapors, and continuous 24/7 operation — conditions that demand the kind of long-term reliability that the CL6821X1-A6 delivers. Similarly, in metallurgical and steel processing plants, where furnace temperatures exceed 1,600°C and electromagnetic interference from arc furnaces is severe, the module’s EMI-hardened design ensures clean signal transmission from thermocouple transmitters and pyrometers back to the DeltaV controller.

Mining operations — both open-pit and underground — rely on the CL6821X1-A6 for conveyor belt load monitoring, crusher motor current feedback, and slurry pump pressure control. The module’s ability to operate reliably in dusty, vibration-intensive environments without requiring frequent recalibration makes it a preferred spare part for mine automation engineers managing remote sites with limited maintenance windows.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Fisher CL6821X1-A6?
All Fisher CL6821X1-A6 modules supplied by TOPNLMS carry a 12-month quality warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Our warranty covers manufacturing defects and functional failures — not physical damage caused by improper installation or overvoltage events.

Q2: How is the module tested before shipment?
Every CL6821X1-A6 unit undergoes a multi-point functional verification process before dispatch. This includes backplane communication handshake testing, channel-by-channel analog signal verification (4–20 mA loop test), and visual inspection for PCB damage, connector integrity, and firmware label accuracy. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all DeltaV controller generations?
The CL6821X1-A6 is designed for the Emerson DeltaV platform and is compatible with DeltaV S-series and M-series controller families, including the MD, MD Plus, and SD Plus controllers. It is recommended to verify the DeltaV system version (v11.x through v14.x) with your site’s DeltaV configuration engineer before installation, as firmware compatibility may affect channel configuration options. TOPNLMS technical support can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains a dedicated inventory of DeltaV-series I/O modules, including the CL6821X1-A6, to support both emergency replacement orders and planned maintenance procurement programs. We work with industrial facilities that require consistent, traceable supply of obsolete or hard-to-source DeltaV components. For volume orders or annual supply agreements, please contact our team directly to discuss pricing, lead times, and quality documentation packages.
