FESTO CPX-SB-LT-WELD-SA Replacement for CPX Series

Product Overview

FESTO CPX-SB-LT-WELD-SA Replacement for CPX Series: Smooth Transition & Legacy System Compatibility

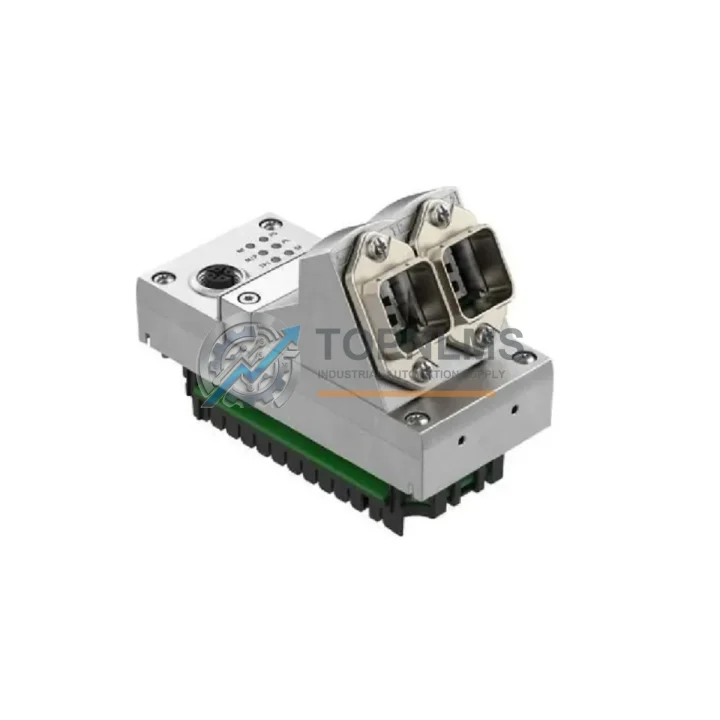

The FESTO CPX-SB-LT-WELD-SA is a welding sub-base controller module designed for integration within the FESTO CPX terminal platform. As industrial facilities phase out aging pneumatic control architectures and discontinued welding controller configurations, this module serves as a direct replacement and upgrade solution for CPX Series installations. Whether your facility is migrating from an older CPX-FB33 fieldbus node, retiring a legacy CPX-CMAX motion controller, or simply replacing a failed sub-base in an active welding cell, the CPX-SB-LT-WELD-SA delivers the dimensional, electrical, and protocol compatibility required for a seamless retrofit without line reconfiguration.

Industrial welding systems — particularly resistance spot welding and arc welding cells — demand precise pneumatic sequencing and reliable I/O coordination. The CPX-SB-LT-WELD-SA integrates directly into the CPX modular terminal system, sharing the same backplane bus architecture as other CPX I/O modules. This means existing wiring harnesses, terminal block assignments, and DIN rail mounting positions remain unchanged during replacement. Engineers familiar with the CPX-FEC compact controller or the CPX-M-FB-EtherNet/IP fieldbus module will find the sub-base’s interface conventions immediately recognizable, reducing commissioning time to a minimum.

For facilities running PROFIBUS DP or PROFINET networks, the CPX-SB-LT-WELD-SA maintains full protocol compatibility when paired with the appropriate CPX fieldbus node. Existing GSD or GSDML device description files can be reused, and the module’s station address and I/O mapping remain consistent with prior CPX sub-base generations. This eliminates the need to modify PLC programs on Siemens S7-300, S7-400, or S7-1500 controllers that manage the welding sequence — a critical advantage when minimizing production downtime is the primary engineering constraint.

Physical installation is equally straightforward. The CPX-SB-LT-WELD-SA occupies the same footprint as its predecessor sub-base variants, fitting standard CPX system carriers without spacer adapters or bracket modifications. Control cabinet space — often at a premium in compact welding cells — is preserved. Power supply requirements align with the 24 VDC distributed power architecture common across CPX terminal installations, so existing CPX-P power supply modules and cable assemblies remain serviceable.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CPX welding cell migration typically involves more than a single sub-base swap. During the upgrade process, engineers commonly address the CPX-FB33 PROFIBUS fieldbus node to ensure the new sub-base is correctly enumerated on the network. Where EtherNet/IP connectivity is required, the CPX-M-FB-EtherNet/IP module provides a drop-in fieldbus upgrade path. Power distribution within the CPX terminal is managed by the CPX-P power supply module, which should be inspected and replaced if it shows signs of aging during the same maintenance window.

On the I/O side, CPX-8DE-8DA digital I/O modules mounted adjacent to the welding sub-base often require re-termination when the sub-base is replaced; having spare CPX terminal blocks and pre-wired cable assemblies on hand accelerates this process. For welding cells that also incorporate servo-pneumatic positioning, the CPX-CMAX axis controller may be part of the same CPX terminal assembly and should be verified for firmware compatibility with the replacement sub-base. HMI panels connected via the CPX system — such as FESTO CDPX operator terminals — retain their display logic without reprogramming when the sub-base I/O addresses are preserved.

In larger control cabinets where signal isolation is required between the welding controller and upstream safety PLCs, DIN rail-mounted signal isolators and CPX-compatible terminal adapters are recommended to maintain CE and functional safety compliance. Finally, the FESTO FMT programming cable and FESTO Maintenance Tool software remain compatible with the CPX-SB-LT-WELD-SA for parameter backup, diagnostics, and commissioning verification — no new programming hardware is required.

Retrofit Guidance FAQ

Q: Will existing wiring need to be changed?
A: No. The CPX-SB-LT-WELD-SA uses the same CPX backplane bus connector and terminal block layout as prior sub-base variants. Field wiring at the CPX terminal remains unchanged.

Q: Do I need to modify my PLC program?
A: Not in standard replacement scenarios. The I/O address mapping and fieldbus device identity are preserved, so Siemens S7 or other PLC programs controlling the welding sequence do not require modification.

Q: Is the module compatible with PROFINET and PROFIBUS DP simultaneously?
A: The sub-base itself is protocol-agnostic; protocol selection is determined by the CPX fieldbus node installed on the terminal. Existing nodes remain compatible.

Q: What are the physical space requirements?
A: The CPX-SB-LT-WELD-SA matches the footprint of standard CPX sub-base modules. No additional cabinet space or mounting adapters are required.

Q: Can this module be used in a safety-rated welding application?
A: For SIL or PLd/PLe applications, consult the FESTO CPX safety documentation and verify the complete system architecture. The sub-base itself must be integrated within a validated safety-rated CPX configuration.

Q: How long does commissioning take after installation?
A: In direct replacement scenarios with no wiring or program changes, commissioning typically involves a power-on check, fieldbus enumeration verification, and a functional I/O test — typically completed within one to two hours by a qualified automation technician.

Warranty Assurance

Every FESTO CPX-SB-LT-WELD-SA unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on testing, backplane bus continuity checks, and visual inspection for connector integrity. Units that fail to meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. Replacement units are dispatched from our Xiamen warehouse, with express international shipping available to minimize production downtime for overseas customers.

Stock availability is maintained for immediate dispatch. Orders placed before the daily cut-off are typically shipped the same business day. Customers requiring batch procurement for MRO inventory programs are encouraged to contact us directly for volume pricing and lead time confirmation.
