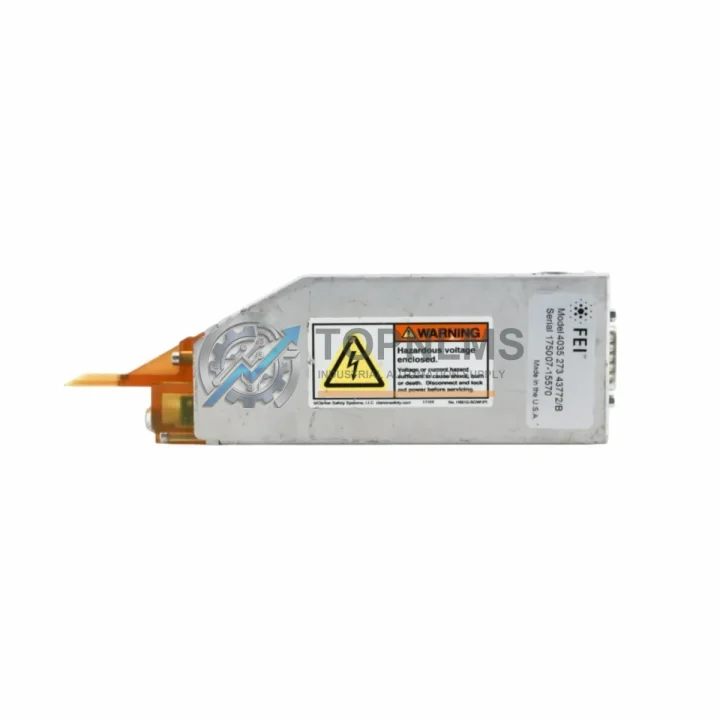

FEI 4035-273-43772 Ruggedized Extractor Assembly for Harsh Environments

Product Overview

FEI 4035-273-43772 Ruggedized Extractor Assembly: Industrial Resilience for Demanding Electron Optical Environments

The FEI 4035-273-43772 Extractor Assembly is a precision high-voltage electrode component engineered for the Schottky Field Emission Gun (FEG) electron gun column — the heart of FEI’s advanced scanning and transmission electron microscopes. Designed to operate under ultra-high vacuum (UHV) conditions with sustained high-voltage bias, this extractor assembly must perform flawlessly in environments where thermal cycling, electromagnetic interference, mechanical vibration, and contamination are constant operational realities. At TOPNLMS, we stock, test, and ship this critical component to semiconductor fabs, materials research laboratories, failure analysis centers, and advanced manufacturing facilities worldwide.

In high-throughput production environments — where electron microscopes run continuously for wafer inspection, defect review, or materials characterization — unplanned downtime caused by a failed extractor assembly can halt an entire production line. The FEI 4035-273-43772 is the OEM-specification replacement that restores full column performance without the extended lead times associated with direct OEM procurement. Our inventory is maintained specifically to support rapid spare-parts replacement cycles for facilities that cannot afford extended instrument downtime.

Rugged Specifications Table

Comprehensive Protection Solutions: Sustaining Electron Optical System Integrity

The FEI 4035-273-43772 Extractor Assembly does not operate in isolation. Its reliable performance depends on — and directly supports — the integrity of the entire electron gun column and associated control infrastructure. In a fully operational FEI Schottky FEG system, the extractor electrode works in close coordination with the FEI Schottky emitter tip assembly and the suppressor electrode, forming the triode gun structure that defines beam brightness, energy spread, and emission stability. Any degradation in the extractor’s surface condition or alignment directly impacts the performance of downstream column components including the condenser lens assembly, objective lens pole piece, and beam deflection coil sets.

From a systems perspective, the high-voltage supply feeding the extractor bias is typically managed by the FEI high-voltage control board and associated gun electronics module, which regulate extractor potential with millivolt-level precision. Facilities managing multiple FEI instruments often maintain parallel spare inventories covering the FEI column isolation valve assembly, ion getter pump controller, and vacuum gauge controller module — all of which are interdependent with the gun vacuum environment that the extractor assembly must sustain.

For laboratories operating FEI instruments alongside complementary analytical platforms, the extractor assembly’s condition is often cross-referenced with the status of the energy dispersive X-ray (EDX) detector interface module and EELS spectrometer entrance aperture assembly, since beam quality degradation from a worn extractor directly reduces analytical signal quality across all attached detectors. Maintaining a certified spare FEI 4035-273-43772 in your facility’s critical-parts inventory is the most cost-effective strategy for protecting the uptime of your entire electron microscopy suite.

Application in Critical Infrastructure: Field-Proven Reliability Across High-Stakes Environments

The FEI 4035-273-43772 Extractor Assembly is deployed in some of the most demanding analytical environments in modern industry and research. In semiconductor wafer fabrication facilities, FEI Schottky FEG systems equipped with this extractor assembly perform continuous defect review and process control metrology — often running 24 hours a day, 7 days a week, in cleanroom environments where particulate contamination, vibration from adjacent process equipment, and electromagnetic interference from RF plasma tools are persistent challenges. The extractor’s UHV-compatible construction and precision electrode geometry ensure that beam quality remains stable across extended operational cycles without requiring frequent realignment.

In advanced materials research and metallurgical analysis environments — including steel mills, aerospace component manufacturers, and nuclear materials laboratories — FEI TEM and SEM platforms rely on the extractor assembly to maintain consistent nanometer-scale imaging resolution when characterizing grain boundaries, precipitate phases, and fatigue crack morphologies in structural alloys. These facilities often operate in buildings with significant mechanical vibration from heavy machinery, making the mechanical stability of the extractor electrode assembly a critical performance parameter.

In oil and gas pipeline inspection and failure analysis laboratories, where corrosion products, weld defects, and stress corrosion cracking must be characterized at the microstructural level, FEI instruments with properly maintained extractor assemblies provide the analytical resolution required to support fitness-for-service assessments and regulatory compliance reporting. Similarly, in power generation and electrical utility research centers, the extractor assembly supports high-resolution analysis of turbine blade coatings, transformer insulation degradation, and fuel cell electrode microstructures — applications where analytical accuracy directly informs multi-million-dollar maintenance and capital investment decisions.

TOPNLMS maintains ready inventory of the FEI 4035-273-43772 specifically to serve these mission-critical facilities, where the cost of instrument downtime far exceeds the cost of maintaining a certified spare component on the shelf.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FEI 4035-273-43772 Extractor Assembly?
All FEI 4035-273-43772 units shipped by TOPNLMS are covered by a 12-month quality warranty from the date of delivery. If the component exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we will provide a replacement or full refund. Our warranty terms are documented and provided with every shipment.

Q2: How is each unit tested and verified before shipment?
Every FEI 4035-273-43772 Extractor Assembly in our inventory undergoes pre-shipment inspection covering dimensional verification, surface condition assessment, and electrical continuity checks consistent with OEM acceptance criteria. Units are individually packaged in anti-static, vibration-dampened export packaging and shipped via DHL Express with full tracking. A test and inspection record is available upon request for quality-assurance documentation purposes.

Q3: Is this extractor assembly compatible with all FEI Schottky FEG platforms?
The FEI 4035-273-43772 is designed as an OEM-specification extractor assembly for FEI Schottky FEG electron gun columns. It is compatible with FEI Titan, Tecnai G2, Quanta FEG, Helios NanoLab, and Nova NanoSEM series instruments equipped with the Schottky FEG gun configuration. If you are uncertain whether this part number matches your specific instrument serial number or column revision, please contact our technical team at [email protected] with your instrument model and serial number for confirmation before ordering.

Q4: Can TOPNLMS support long-term and repeat supply of this component?
Yes. TOPNLMS maintains a dedicated inventory program for critical FEI electron microscope spare parts, including the 4035-273-43772 Extractor Assembly. We support both single-unit emergency replacement orders and scheduled bulk procurement for facilities managing multiple FEI instruments or operating under planned maintenance programs. Long-term supply agreements with guaranteed lead times are available for qualified institutional customers. Contact us at [email protected] or +86 18359293191 to discuss your facility’s ongoing spare parts requirements.
