FAULHABER NFOA01A33105 CDN396R Ruggedized Servo Motor for Harsh Environments

Product Overview

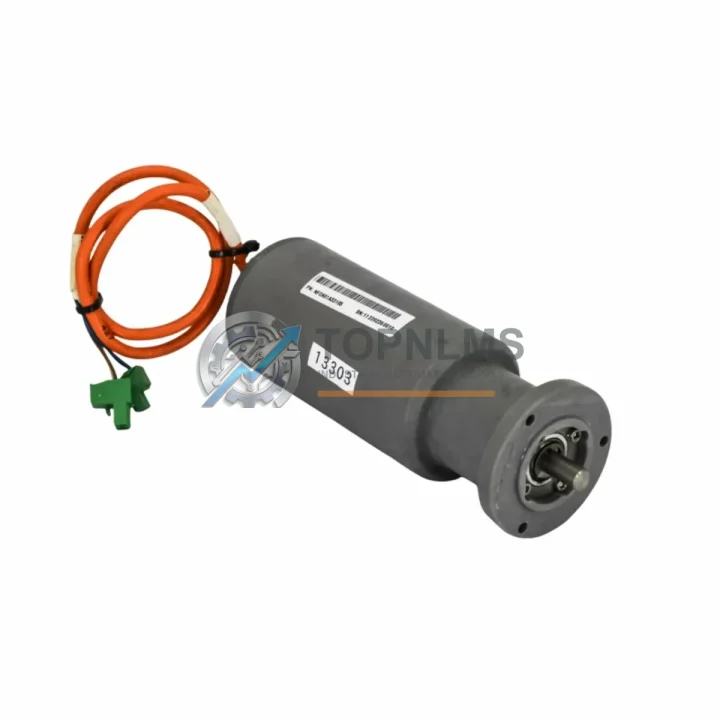

FAULHABER NFOA01A33105 CDN396R Ruggedized Servo Motor for Harsh Environments

The FAULHABER NFOA01A33105 CDN396R ENDURA2 is a precision-engineered brushless DC servo motor from the RECIFE Series, purpose-built to deliver uncompromising performance in the most demanding industrial environments. Combining FAULHABER’s legendary Swiss-German motion engineering with the ENDURA2 platform’s enhanced mechanical robustness, this motor is designed to sustain continuous, high-cycle operation across applications where thermal stress, mechanical vibration, electromagnetic interference, and contamination are everyday realities.

Whether deployed on a continuous production line in a steel mill, integrated into a precision dosing system in a pharmaceutical plant, or driving a critical axis in an oil and gas valve actuator, the NFOA01A33105 CDN396R delivers the torque consistency, speed stability, and positional accuracy that mission-critical automation demands. Its ENDURA2 construction reinforces bearing life, winding insulation, and shaft seal integrity — directly addressing the failure modes most commonly encountered in harsh-environment servo applications.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, a servo motor does not operate in isolation — it is the kinetic endpoint of a tightly integrated control chain. The FAULHABER NFOA01A33105 CDN396R is engineered to interface seamlessly with the broader ecosystem of motion and control hardware that surrounds it in a typical control cabinet or field installation.

On the drive side, this motor pairs directly with FAULHABER MCBL 3006 S and MC5004 series servo controllers, which provide closed-loop current, velocity, and position control via the CDN396R encoder feedback. These controllers support CANopen and RS-232 communication protocols, enabling integration into distributed control architectures managed by a Siemens S7-300 or S7-1500 PLC acting as the motion coordinator. For applications requiring safety-rated stop functions (STO, SS1), the servo controller’s safety input can be wired to a PILZ PNOZ safety relay module or a Siemens ET 200SP F-DI safety I/O module, ensuring IEC 62061-compliant machine safety without sacrificing dynamic response.

Power quality is equally critical. The NFOA01A33105 CDN396R operates from a 24 VDC bus, typically supplied by a FAULHABER or PULS industrial DIN-rail power supply with active PFC and output hold-up time sufficient to ride through brief mains disturbances — a common occurrence in heavy industrial facilities with large motor starters on the same distribution panel. A Phoenix Contact TRABTECH surge protection terminal installed upstream of the power supply provides transient voltage suppression, protecting the servo drive and motor winding insulation from lightning-induced or switching-generated surges.

For communication-intensive installations, the servo controller’s CANopen node integrates into a Beckhoff EK1100 EtherCAT coupler gateway or a HMS Anybus communicator, bridging the motion network to the plant’s PROFINET or EtherNet/IP backbone. Feedback signals from the CDN396R encoder are routed through shielded, twisted-pair encoder cables with ferrite cores at both ends, suppressing common-mode noise in environments with variable-frequency drives (VFDs) operating nearby. Terminal connections within the control cabinet are made via Phoenix Contact or Weidmüller spring-clamp terminal blocks, which maintain reliable contact integrity under the thermal cycling and vibration loads typical of heavy-industry enclosures.

Application in Critical Infrastructure

The FAULHABER NFOA01A33105 CDN396R ENDURA2 has a proven application profile across the most demanding sectors of critical infrastructure, where unplanned downtime carries severe operational and safety consequences.

In oil and gas facilities — including upstream wellhead control panels, midstream pipeline valve actuators, and downstream refinery process control systems — this motor drives precision flow-control valves and metering pumps where positional repeatability directly affects process yield and safety interlock reliability. Its brushless design eliminates the carbon dust contamination risk associated with conventional DC motors, a critical consideration in Zone 2 classified areas where combustible atmospheres may be present.

In mining and mineral processing operations, the ENDURA2 bearing system withstands the continuous shock loading and fine-particle contamination generated by conveyor drives, ore-sorting actuators, and flotation cell control mechanisms. The motor’s sealed construction prevents ingress of silica dust and process slurry, which are primary causes of premature bearing failure in standard servo motors deployed in these environments.

In power generation and electrical utilities, including thermal, hydro, and wind generation facilities, the NFOA01A33105 CDN396R is applied in governor actuators, blade pitch control systems, and transformer tap-changer drives. These applications demand sustained torque delivery across wide ambient temperature ranges and immunity to the strong electromagnetic fields generated by high-voltage switchgear and power transformers operating in close proximity.

In water and wastewater treatment plants, the motor drives dosing pump actuators, valve positioners, and screen drive mechanisms in environments characterized by high humidity, chemical vapors, and continuous 24/7 duty cycles. The ENDURA2 winding insulation system is rated for the elevated thermal stress of continuous-duty operation without the derating typically required of standard servo motors in these conditions.

In metallurgy and steel production, including rolling mill auxiliary drives and ladle transfer car positioning systems, the motor’s robust construction handles the intense radiated heat, scale dust, and floor vibration that rapidly degrade less ruggedized motion components.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, premature component failure, and functional non-conformance relative to FAULHABER’s published specifications for the NFOA01A33105 CDN396R. In the event of a warranty claim, contact [email protected] with your order reference and a description of the fault. We will arrange return logistics and either repair, replace, or credit the unit within an agreed lead time. Warranty does not cover damage resulting from incorrect installation, overvoltage, or mechanical overload beyond rated specifications.

Q2: How is each unit tested before shipment?
Every FAULHABER NFOA01A33105 CDN396R unit dispatched from our facility undergoes a pre-shipment functional inspection that includes encoder signal verification, no-load run test at rated voltage, visual inspection of shaft, connectors, and housing, and continuity check of all winding phases. Units that do not pass inspection are quarantined and not offered for sale. A test record is available upon request for quality-critical procurement processes.

Q3: Is this motor compatible with my existing FAULHABER servo controller or third-party drive?
The NFOA01A33105 CDN396R is natively compatible with FAULHABER MC5004, MC5005, and MCBL 3006 S servo controllers via the integrated CDN396R encoder interface. For integration with third-party drives (e.g., Maxon EPOS4, Elmo Gold series, or Kollmorgen AKD), compatibility depends on the drive’s support for the motor’s pole count, encoder line count (396 lines), and back-EMF constant. We recommend sharing the motor’s datasheet — available on request — with your drive supplier’s application engineering team prior to commissioning. Our technical team can also assist with parameter configuration guidance.

Q4: Can you guarantee long-term supply and support for replacement units?
Yes. TOPNLMS maintains stock of FAULHABER RECIFE and ENDURA2 series components as part of our industrial automation spare-parts program. For customers with planned maintenance schedules or multi-unit installations, we offer reserved stock agreements and priority allocation to ensure replacement units are available when needed. Contact us at [email protected] or +86 18359293191 to discuss your long-term supply requirements.
