FATEK FBS-60XYR-AC Replacement/Upgrade Solution for FBS

Product Overview

FATEK FBS-60XYR-AC Replacement/Upgrade Solution for FBS Series: Smooth Transition from Legacy I/O Systems

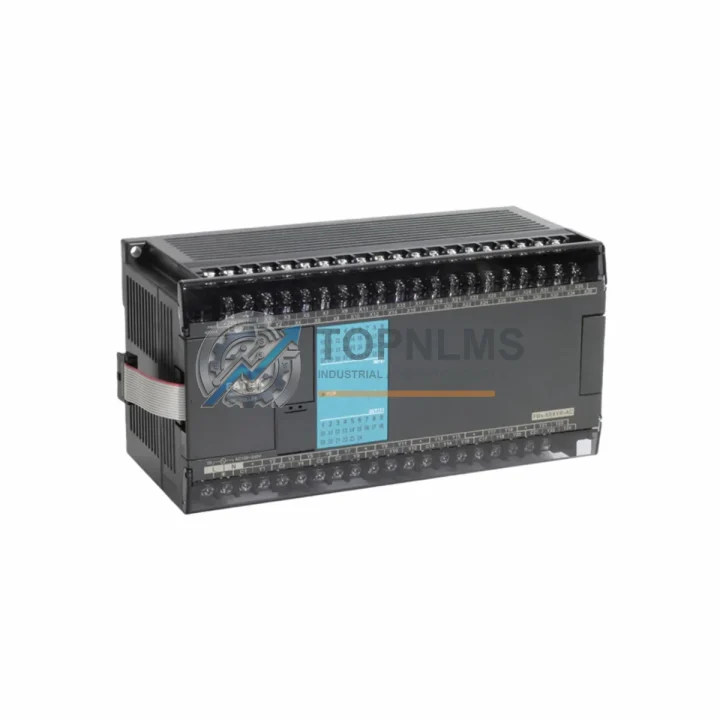

The FATEK FBS-60XYR-AC is a 60-point digital I/O expansion module designed for the FATEK FBS Series PLC platform. It combines 36 DC input points and 24 relay output points in a single compact unit powered by AC supply, making it a direct, drop-in replacement for aging or discontinued FBS-series expansion hardware. Whether your facility is running a legacy FATEK FBs-20MA, FBs-40MA, or FBs-60MA main unit, or you are migrating from an older FATEK B1 Series controller, the FBS-60XYR-AC integrates without requiring changes to your existing ladder logic program, I/O addressing map, or control cabinet wiring layout.

Industrial facilities across manufacturing, water treatment, HVAC, and material handling sectors rely on FATEK FBS Series PLCs for their proven reliability and cost-effective architecture. When the original FBS-60XYR-AC module reaches end-of-life or fails unexpectedly, unplanned downtime becomes the primary concern. This replacement module is stocked and tested, ready to ship from Xiamen within 1–3 business days, minimizing production interruption and reducing mean time to repair (MTTR) for your control system.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FBS-60XYR-AC replacement is rarely a single-component swap. In practice, field engineers upgrading or retrofitting a FATEK FBS-based control panel will often need to evaluate the surrounding system components to ensure the entire control loop remains stable and compliant.

On the controller side, the FBS-60XYR-AC connects directly to FATEK FBs-60MA or FBs-40MA CPU modules via the proprietary FBS expansion bus. If the CPU itself is approaching end-of-life, this is an ideal time to evaluate a concurrent upgrade to the FATEK FBs-60MAR2-AC, which offers expanded program memory and enhanced communication ports while maintaining full backward compatibility with existing FBS expansion modules including this unit.

For communication-intensive applications — such as SCADA integration, remote monitoring, or Modbus RTU/TCP connectivity — the FATEK FBs-CM25E Ethernet communication module or the FBs-CM55E can be added to the same rack without modifying the I/O expansion chain. These modules allow the FBS system to communicate with HMI panels such as the Weintek MT8071iE or Weintek cMT Series over Ethernet, replacing older RS-232 serial links that may be unreliable in electrically noisy industrial environments.

On the field wiring side, replacing a 60-point I/O module is an opportunity to audit terminal block integrity. FATEK-compatible screw terminal modules and DIN rail terminal blocks from Phoenix Contact or Weidmüller are commonly used alongside FBS expansion modules to organize field cables and simplify future maintenance. If the existing wiring uses older color-coded conductors that do not meet current IEC 60204-1 standards, this replacement window is the right time to re-label and re-terminate.

For applications where signal isolation is required — particularly when the FBS-60XYR-AC interfaces with sensors in high-voltage or high-interference environments — inline signal isolators or relay interposing modules rated for 24 VDC coil voltage are recommended between the relay output terminals and the field load. This protects the module’s output contacts and extends service life significantly.

If your facility is also upgrading the programming interface, the FATEK USB-to-RS232 programming cable (compatible with WinProladder software) remains the standard tool for uploading and downloading ladder programs to FBS Series CPUs. Ensure the programming cable driver is installed on the engineering workstation before beginning the swap to avoid delays during commissioning.

Finally, for sites managing multiple FBS expansion modules across a large control cabinet, the FATEK FBs-4A2D analog I/O module or FBs-6AD analog input module may be part of the same expansion chain. These modules are unaffected by the FBS-60XYR-AC replacement and will continue to operate normally after the digital I/O module is swapped, provided the expansion bus ribbon connectors are reseated correctly during reinstallation.

Retrofit Guidance FAQ

Q: Do I need to modify my ladder logic program after replacing the FBS-60XYR-AC?
A: No. The FBS-60XYR-AC uses the same I/O addressing as the original module. Power down the CPU, swap the module, reconnect the expansion bus and field wiring, then power up. The existing program will execute without modification.

Q: Is the wiring terminal layout identical to the original module?
A: Yes. The terminal block layout, screw pitch, and conductor entry direction are identical to previous FBS-60XYR-AC production batches. Existing field cables can be reconnected to the same terminal positions without re-labeling.

Q: What communication protocols does this module support?
A: The FBS-60XYR-AC is a pure digital I/O expansion module and does not have an independent communication port. It communicates with the FBS CPU exclusively via the proprietary FBS expansion bus. All external protocol support (Modbus RTU, Modbus TCP, PROFIBUS, etc.) is handled by the CPU or dedicated communication modules in the same rack.

Q: Will this module fit in the same DIN rail space as the original?
A: Yes. The physical dimensions and DIN rail mounting clip are identical. No cabinet modification or additional mounting hardware is required.

Q: Can this module be used with FATEK B1 Series or FBe Series CPUs?
A: No. The FBS-60XYR-AC is designed exclusively for the FBS Series expansion bus. It is not electrically or mechanically compatible with FATEK B1 or FBe Series CPUs. If you are migrating from a B1 or FBe platform, please contact us for a compatibility assessment.

Q: How long does commissioning typically take after the swap?
A: For a direct 1:1 replacement with no program changes, most field engineers complete the swap and return to normal operation within 30–60 minutes, including power-down, module exchange, wiring reconnection, and system restart verification.

Warranty Assurance

Every FATEK FBS-60XYR-AC unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, I/O point continuity check, and expansion bus communication validation. Units that do not pass inspection are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund based on the buyer’s preference. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched with priority shipping to minimize your downtime exposure.

For B2B buyers managing critical infrastructure, we recommend purchasing a spare FBS-60XYR-AC unit alongside your primary order. Holding a tested spare on-site reduces your worst-case recovery time from days to minutes in the event of an unexpected module failure.

For volume procurement, OEM integration, or project-based purchasing inquiries, please contact our industrial sales team directly. We support purchase orders, proforma invoices, and third-party inspection arrangements for international buyers.
