FANUC AIF01A A03B-0807-C011 Replacement Solution

Product Overview

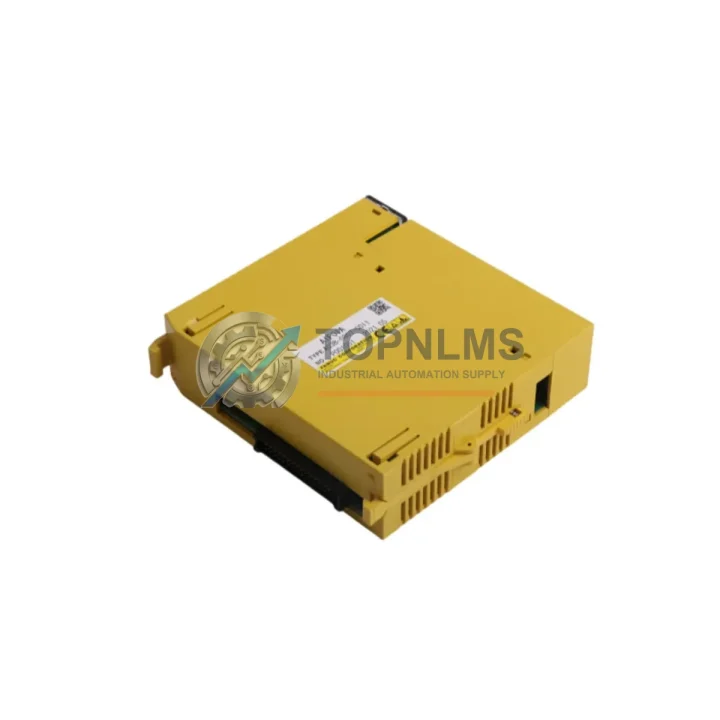

FANUC AIF01A A03B-0807-C011 Replacement Solution: Seamless CNC I/O System Upgrade

The FANUC AIF01A (A03B-0807-C011) is a precision analog input module designed for GE Fanuc CNC I/O Series control architectures. As legacy FANUC CNC systems age and original spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source reliable, drop-in compatible replacements that preserve existing wiring infrastructure, rack geometry, and ladder logic without forcing a full system overhaul. TOPNLMS supplies verified AIF01A modules — tested, serialized, and backed by a 12-month warranty — to support smooth, low-risk migration from end-of-life configurations to sustained operational continuity.

Whether your facility is running a FANUC Series 0, Series 15, or Series 16/18/21 CNC controller platform, the AIF01A analog input module integrates directly into the existing I/O rack without requiring re-engineering of the control cabinet layout. The module accepts standard analog signal inputs (typically 0–10 V DC or 4–20 mA, depending on configuration), and its compact DIN-compatible form factor ensures it fits within the original panel space allocation — a critical consideration when retrofitting older cabinets where physical clearance is limited.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AIF01A migration rarely involves a single module swap. In practice, field engineers upgrading aging FANUC CNC I/O systems typically address several interdependent components in the same maintenance window to minimize repeat downtime. The A03B-0807-C011 analog input module is most commonly replaced alongside the FANUC I/O rack backplane (A03B-0807 series base unit), which may show connector wear or backplane trace degradation after years of continuous operation. If the rack power supply — typically a FANUC PSU module in the A03B-0807 family — is also approaching end-of-life, replacing it concurrently prevents a secondary failure from interrupting production shortly after the analog input module is restored.

On the digital side, facilities running mixed analog and digital I/O architectures often pair the AIF01A with FANUC digital input/output modules (DI/DO modules from the same A03B-0807 series), ensuring the entire I/O subsystem is refreshed to a consistent hardware revision. Communication integrity between the CNC controller and the I/O rack depends on the FANUC I/O Link cable and associated interface boards; aging cables with degraded shielding are a common source of intermittent analog signal errors that are misdiagnosed as module failures. Replacing the I/O Link cable assembly during the same retrofit window eliminates this variable.

For facilities where the CNC controller itself — such as a FANUC Series 16i or 18i CNC controller unit — is also being evaluated for upgrade, the AIF01A replacement can serve as a staged first step, preserving the existing controller while modernizing the I/O layer. This approach defers the larger capital expenditure of a full controller replacement while immediately resolving analog input reliability issues. In applications where spindle drive feedback or servo axis analog references are routed through the AIF01A, coordinating the module swap with a review of the FANUC servo amplifier (αi or βi series) parameter backup is strongly recommended to avoid reference offset errors after reinstallation.

Where the control cabinet also houses a FANUC HMI operator panel or MDI unit, technicians should verify that the analog input channel assignments in the CNC parameter table (PMC ladder) remain consistent after the module swap — particularly if the replacement module is sourced from a different firmware revision batch. TOPNLMS provides module revision documentation upon request to support pre-installation compatibility verification. Additionally, if the system uses signal isolators between field sensors and the AIF01A input terminals, these should be inspected for drift, as aged isolators can introduce offset errors that appear as module faults post-replacement.

Retrofit Guidance FAQ

Q: Will existing field wiring need to be modified?
No. The AIF01A A03B-0807-C011 uses the same terminal block pinout as the original module. All existing analog signal wiring — including shielded twisted-pair cables from sensors, transducers, or servo feedback circuits — can be reconnected directly without re-termination or re-labeling.

Q: Does the replacement module require PMC ladder program changes?
In the vast majority of cases, no. The AIF01A replacement maintains the same I/O address mapping within the FANUC PMC (Programmable Machine Controller) ladder. Channel assignments, scaling parameters, and alarm thresholds defined in the original CNC parameter file remain valid. A parameter backup before replacement and a verification scan after power-up is recommended as standard practice.

Q: Is the module compatible with FANUC I/O Link and I/O Link II protocols?
The AIF01A operates on the FANUC proprietary I/O bus architecture used in the A03B-0807 series rack. It is compatible with systems using FANUC I/O Link communication. If your system has been upgraded to I/O Link II, please confirm the rack interface board revision with TOPNLMS before ordering.

Q: How much physical space does the replacement module require?
The AIF01A occupies a single standard slot in the A03B-0807 series I/O rack. No additional mounting brackets, spacers, or cabinet modifications are required. The module’s depth and connector clearance are identical to the original, making it suitable for cabinets with limited front-access depth.

Q: What is the recommended procedure for on-site commissioning after replacement?
After slot installation and wiring reconnection: (1) restore CNC parameters from backup, (2) power up the rack and verify the module’s status LED, (3) perform an analog input channel check using the FANUC diagnostic screen to confirm signal scaling, (4) run a dry-cycle test of any PMC sequences that reference the analog input channels before resuming production.

Q: Can this module replace units from other manufacturers used as FANUC-compatible substitutes?
Yes, provided the third-party substitute used the same A03B-0807 rack slot and I/O bus interface. TOPNLMS recommends confirming the original module’s part number and slot position before ordering to ensure full compatibility.

Warranty Assurance

Every FANUC AIF01A A03B-0807-C011 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional bench testing against FANUC I/O bus signal parameters. Modules that do not meet specification thresholds are quarantined and not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS provides a replacement unit or full refund — whichever the customer prefers — with priority processing to minimize production downtime. Our after-sales response target is within 24 hours of defect notification for customers in mainland China, Hong Kong, and Southeast Asia, and within 48 hours for international customers.

For procurement teams requiring documentation, TOPNLMS can provide: shipment inspection reports, module serial number records, and warranty certificates upon request. All modules are shipped with appropriate ESD-protective packaging and are insured during transit. Bulk orders for MRO inventory stocking are supported with volume pricing — contact our sales team for a quotation.

TOPNLMS maintains stock of the AIF01A A03B-0807-C011 for immediate dispatch. Standard lead time for in-stock units is 1–3 business days from order confirmation, with express shipping options available for urgent breakdown situations.
