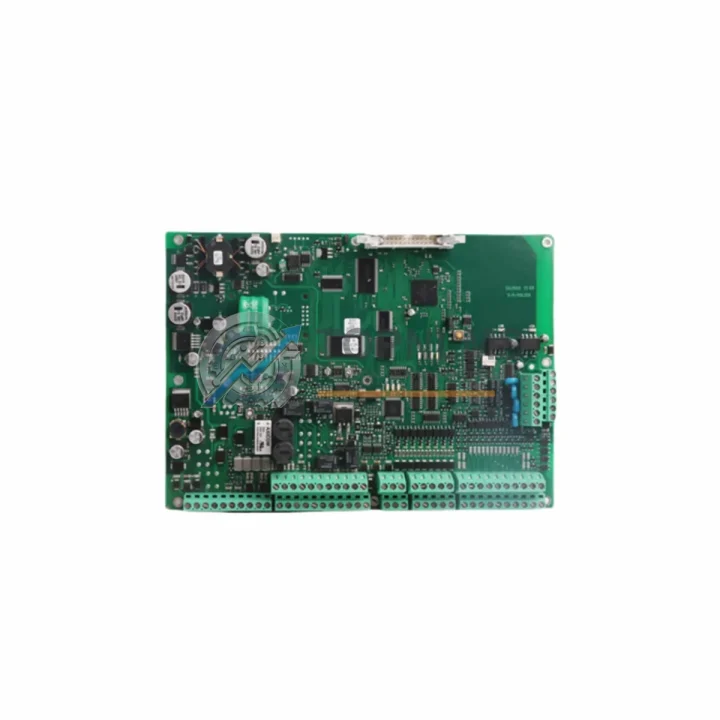

FAIVELEY S-D-010.355 Ruggedized Analog Input Module

Product Overview

FAIVELEY S-D-010.355 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The FAIVELEY S-D-010.355 is a ruggedized analog input module engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of the proven S-D-010 series, this module delivers precision signal acquisition and robust noise immunity across a wide range of process control applications — from petrochemical refineries and offshore platforms to metallurgical plants and municipal water treatment facilities.

Built to withstand elevated ambient temperatures, high humidity, pervasive dust ingress, mechanical vibration, and intense electromagnetic interference (EMI), the S-D-010.355 maintains signal integrity where lesser components fail. Its hardened design philosophy reflects FAIVELEY’s commitment to safety-critical automation: every channel is isolated, every connection is secured, and every signal path is shielded against the electrical noise inherent in heavy industrial switchgear environments.

In distributed control system (DCS) architectures, the analog input module is the first line of data acquisition — translating field-level 4–20 mA and 0–10 V process signals from transmitters, sensors, and transducers into digital values that the controller can act upon. The S-D-010.355 performs this function with high-resolution conversion accuracy, ensuring that temperature, pressure, flow, and level measurements are faithfully represented in the control loop. Any degradation at this stage propagates through the entire control strategy; the S-D-010.355 eliminates that risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The S-D-010.355 does not operate in isolation — it is a critical node within a broader safety and control architecture. In a typical S-D-010 series DCS cabinet, it works in concert with the FAIVELEY S-D-010.300 digital output module to close control loops between field actuators and the supervisory controller. Upstream, the FAIVELEY S-D-010.100 CPU module processes the digitized analog values and executes the control strategy, while the FAIVELEY S-D-010.200 power supply module provides stable, filtered 24 VDC to the entire I/O rack — a prerequisite for accurate analog signal conversion.

Signal conditioning is handled at the field junction box level, where FAIVELEY S-D-010 series terminal modules provide the physical interface between field wiring and the backplane. These terminal modules incorporate surge protection and cable screening connections, reducing the EMI burden on the S-D-010.355 itself. For installations in classified hazardous areas (Zone 1 / Zone 2), FAIVELEY intrinsically safe barriers or galvanic isolators are installed in series with the analog input channels, ensuring that the module’s signal paths remain within safe energy limits even in the presence of flammable gases or dust.

In larger plant architectures, the S-D-010.355 communicates upstream via FAIVELEY DCS communication modules supporting PROFIBUS DP or Modbus RTU protocols, enabling integration with SCADA systems and historian platforms. Redundant power feeds from industrial UPS units and 24 VDC redundant power supplies ensure that the analog input subsystem remains energized during mains disturbances — a non-negotiable requirement in continuous process industries. Complementing the analog input layer, FAIVELEY S-D-010 series relay output modules and safety relay modules provide the discrete switching actions required for alarm annunciation, motor control, and emergency shutdown (ESD) sequences.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the S-D-010.355 monitors wellhead pressure transmitters, separator level gauges, and pipeline flow meters in real time. Its channel isolation prevents ground loops from corrupting measurement data across long cable runs — a common failure mode in offshore and remote onshore installations where cable trays span hundreds of meters. The module’s extended temperature tolerance ensures stable operation in desert environments exceeding 50°C ambient as well as arctic installations where temperatures drop well below freezing.

In coal-fired and gas-fired power generation, the S-D-010.355 acquires thermocouple and RTD signals from boiler drum temperature sensors, turbine bearing monitors, and flue gas analyzers. Accurate analog acquisition at this level is directly linked to combustion efficiency and emissions compliance — making the reliability of the input module a regulatory as well as operational concern.

In mining and mineral processing, the module operates in environments characterized by heavy vibration from crushers and conveyors, pervasive silica and coal dust, and frequent voltage transients from large motor starters. Its IEC 60068-compliant mechanical ratings and IEC 61000-4 EMI immunity make it one of the few analog input solutions capable of sustaining calibration accuracy under these conditions without frequent recalibration or replacement.

In water and wastewater treatment, the S-D-010.355 interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and chemical dosing flow meters — all of which produce low-level analog signals susceptible to interference from variable-frequency drives (VFDs) and submersible pump motors. The module’s shielded signal paths and high common-mode rejection ratio (CMRR) preserve measurement fidelity in these electrically noisy environments.

In metallurgical and steel production facilities, where furnace temperatures, ladle weights, and rolling mill tensions must be monitored continuously, the S-D-010.355 provides the measurement backbone for process optimization and quality control. Downtime in these facilities carries costs measured in tens of thousands of dollars per hour; the availability of a tested, warranted spare module from TOPNLMS directly reduces mean time to repair (MTTR) when a field failure occurs.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FAIVELEY S-D-010.355?
Every S-D-010.355 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through TOPNLMS, with replacement units dispatched from our Xiamen warehouse to minimize your downtime. Our technical team provides pre-shipment and post-delivery support throughout the warranty period.

Q2: How is each unit tested before shipment?
All FAIVELEY S-D-010.355 modules undergo a multi-stage outgoing quality inspection at our Xiamen facility. This includes visual inspection for physical integrity, power-on functional verification, analog channel accuracy testing across the full input range, and communication bus handshake confirmation. A test report is available upon request. Units that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the S-D-010.355 compatible with my existing FAIVELEY DCS rack and backplane?
The S-D-010.355 is designed for direct installation into FAIVELEY S-D-010 series I/O racks and is backward-compatible with existing S-D-010 backplane configurations. If you are integrating this module into a mixed-generation rack or a third-party DCS chassis, please contact our technical team at [email protected] with your rack model and firmware version for a compatibility assessment before ordering.

Q4: Can TOPNLMS support long-term supply continuity for this module?
Yes. TOPNLMS maintains dedicated safety stock of high-demand FAIVELEY S-D-010 series modules, including the S-D-010.355, to support planned maintenance shutdowns, emergency replacements, and multi-unit project procurement. We can provide lead-time commitments, blanket order arrangements, and priority allocation for customers with critical infrastructure dependencies. Contact us at +86 18359293191 or [email protected] to discuss your supply continuity requirements.
