EUROTHERM 2500M/AO2UNIV Ruggedized Analog Output Module

Product Overview

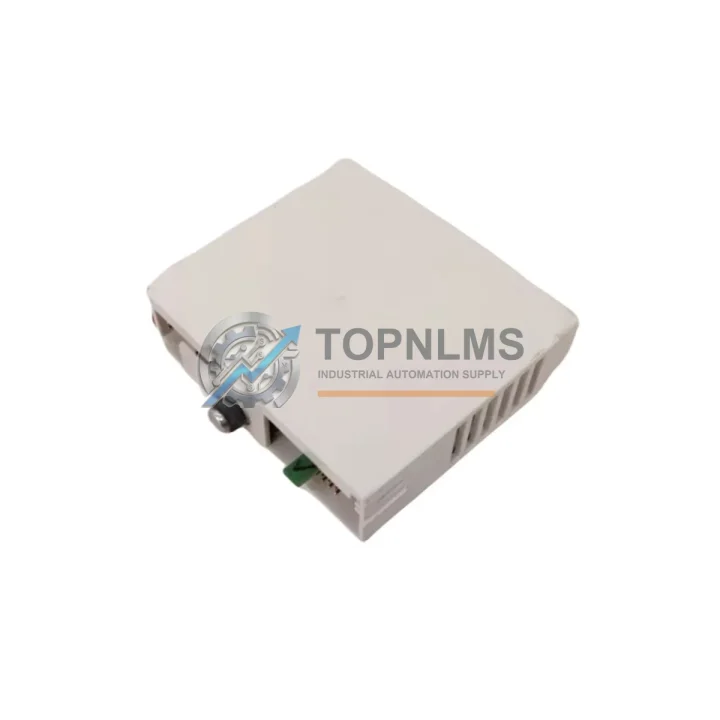

EUROTHERM 2500M/AO2UNIV Ruggedized Analog Output Module for Harsh Environments

The EUROTHERM 2500M/AO2UNIV is a 2-channel universal analog output module engineered for the demands of continuous industrial production. Designed as part of the proven EUROTHERM 2500M Series modular I/O platform, this module delivers stable, high-accuracy analog signal output in environments where temperature extremes, humidity, vibration, dust ingress, and electromagnetic interference are everyday realities. Whether deployed in a precision temperature control loop, a process variable feedback circuit, or a closed-loop drive command chain, the 2500M/AO2UNIV maintains signal integrity where lesser components fail.

Industrial facilities operating around the clock — steel mills, chemical plants, offshore platforms, water treatment stations, and power generation sites — cannot afford signal drift or module failure. The 2500M/AO2UNIV addresses this with robust internal isolation, wide operating temperature tolerance, and a compact DIN-rail form factor that integrates cleanly into standard control cabinets. Its universal output configuration supports both voltage and current signal modes, making it adaptable across a wide range of field instruments and actuator interfaces without hardware modification.

Within a 2500M Series control architecture, this module works in close coordination with the EUROTHERM 2500M/CPU central processing unit and communicates over the internal backplane bus with high-speed determinism. It pairs naturally with the EUROTHERM 2500M/AI4UNIV 4-channel universal analog input module to form complete closed-loop control segments. For digital I/O expansion, the EUROTHERM 2500M/DO4 digital output module and EUROTHERM 2500M/DI8 digital input module extend the system’s reach to discrete field devices such as solenoid valves, motor starters, and limit switches.

In high-temperature furnace and kiln applications, the 2500M/AO2UNIV drives setpoint signals to thyristor power controllers and SCR units, maintaining precise thermal profiles even under heavy electrical noise generated by high-current switching. In such environments, the module’s EMI shielding and galvanic isolation between channels prevent ground loops and cross-channel interference — a critical requirement when operating alongside variable frequency drives (VFDs), servo amplifiers, and large inductive loads on shared power infrastructure.

For process industries requiring functional safety compliance, the 2500M/AO2UNIV integrates within control architectures that include dedicated safety modules and safety-rated PLCs. While the module itself is a standard process control component, its reliable output performance supports the integrity of safety instrumented systems (SIS) by ensuring that command signals to final control elements — control valves, actuators, and positioners — are delivered accurately and without latency. Pairing it with a EUROTHERM 2500M/COM communications module enables Modbus RTU or Profibus DP connectivity, allowing supervisory SCADA systems to monitor output status and perform remote diagnostics without interrupting production.

In mining and heavy industry, where control panels are subject to constant vibration from crushers, conveyors, and rotating machinery, the 2500M/AO2UNIV’s secure backplane mounting and conformal-coated PCB construction resist mechanical stress and condensation. Its compact modular design also simplifies spare-parts management: a single module can be swapped in minutes during a planned maintenance window, restoring full output capability without reconfiguring the entire rack. This hot-swap-friendly architecture reduces mean time to repair (MTTR) significantly compared to legacy hardwired analog output cards.

Oil and gas facilities operating in classified hazardous areas rely on barrier modules and intrinsic safety isolators between the control room and field instruments. The 2500M/AO2UNIV, installed in the safe-area control cabinet, drives signals through Zener barriers or galvanic isolators to field transmitters and positioners in Zone 1 or Zone 2 areas. Its stable output under varying load impedances ensures that the signal chain from the controller to the final element remains accurate regardless of cable length or barrier resistance.

TOPNLMS maintains verified stock of the EUROTHERM 2500M/AO2UNIV and related 2500M Series components. Every unit undergoes pre-shipment functional verification, including output accuracy testing across the full signal range, isolation resistance checks, and visual inspection for connector integrity. Units are shipped in anti-static packaging with full traceability documentation. A 12-month warranty covers all modules against manufacturing defects and functional failure under normal operating conditions, with direct technical support available from our engineering team throughout the warranty period.

For procurement teams managing long-term plant maintenance contracts, TOPNLMS offers reliable supply continuity for EUROTHERM 2500M Series modules, including the 2500M/AO2UNIV, 2500M/AI4UNIV, 2500M/DO4, 2500M/DI8, 2500M/CPU, and 2500M/COM. Bulk pricing, lead-time commitments, and consignment stock arrangements are available for MRO and OEM customers. Contact our team for a formal quotation and compatibility confirmation for your specific control system revision.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable analog output module is only as effective as the system it operates within. In a complete 2500M Series control architecture, the 2500M/AO2UNIV works alongside the EUROTHERM 2500M/CPU for deterministic process execution and the EUROTHERM 2500M/AI4UNIV for closed-loop feedback from thermocouples, RTDs, and pressure transmitters. Digital control is extended through the EUROTHERM 2500M/DI8 and EUROTHERM 2500M/DO4 modules, which handle discrete signals from limit switches, motor contactors, and solenoid valves.

For facilities requiring network integration, the EUROTHERM 2500M/COM communications module bridges the 2500M rack to Modbus RTU or Profibus DP networks, enabling real-time data exchange with SCADA platforms and distributed control systems (DCS). In power distribution panels, the 2500M/AO2UNIV drives setpoint references to thyristor controllers and solid-state relays, while upstream protection is provided by industrial-grade surge protection devices and EMC line filters installed at the cabinet entry point. For applications requiring intrinsic safety in hazardous zones, Zener barriers and galvanic isolators are installed in series with the module’s output channels, maintaining signal accuracy while protecting field instruments in classified areas. Terminal modules and marshalling blocks within the control cabinet provide organized, labeled termination points that simplify commissioning, maintenance, and future expansion of the analog output circuit.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the EUROTHERM 2500M/AO2UNIV controls flow control valve positioners and pressure regulators in wellhead automation panels and pipeline SCADA systems. Its galvanic isolation prevents ground potential differences between the control room and remote field junction boxes from corrupting the 4–20 mA command signal.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the module provides precise setpoint outputs to turbine governor systems and boiler combustion controllers, where even minor signal deviations can affect load dispatch efficiency and emissions compliance. Its wide operating temperature range ensures stable performance in hot control rooms adjacent to boiler houses.

In mining and mineral processing, the 2500M/AO2UNIV drives speed references to variable frequency drives on conveyor systems, crushers, and slurry pumps. The module’s vibration-resistant backplane mounting and conformal-coated PCB withstand the mechanical stress and airborne particulate contamination common in underground and open-pit mining environments.

In water and wastewater treatment facilities, the module controls dosing pump speed references and valve actuator positions in chlorination, filtration, and sludge handling processes. Its resistance to high-humidity environments — common in pump stations and wet wells — ensures long-term reliability without derating or additional environmental enclosures.

In metals and metallurgy — steel rolling mills, aluminum smelters, and foundries — the 2500M/AO2UNIV operates in close proximity to high-current bus bars and induction heating equipment. Its EMI shielding and isolation architecture maintain output accuracy in environments with intense electromagnetic fields, supporting precise temperature and speed control in continuous casting and rolling lines.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period due to a verified defect, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. Our technical team is available throughout the warranty period to assist with troubleshooting and RMA processing.

Q2: How is each unit tested before shipment?
Every EUROTHERM 2500M/AO2UNIV unit in our inventory undergoes a pre-shipment verification process that includes output accuracy testing across the full 0–20 mA and 0–10 V signal ranges, isolation resistance measurement between channels and between channel and bus, and a visual inspection of all connectors, backplane contacts, and PCB surfaces. Units that do not pass all checks are quarantined and not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 2500M/AO2UNIV compatible with my existing 2500M Series rack?
Yes. The 2500M/AO2UNIV is designed for direct plug-in compatibility with all standard EUROTHERM 2500M Series backplanes and racks. It is compatible with the 2500M/CPU, 2500M/AI4UNIV, 2500M/DI8, 2500M/DO4, and 2500M/COM modules. If you are unsure about compatibility with a specific rack revision or firmware version, please contact our technical team with your system configuration details before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS specializes in maintaining stock continuity for industrial automation components, including EUROTHERM 2500M Series modules. We support MRO procurement teams, OEM integrators, and plant maintenance departments with reliable supply, competitive lead times, and bulk pricing. For critical spares programs, we can discuss consignment stock or scheduled delivery arrangements to ensure your facility is never without a replacement module when needed.
