EUPEC BSM300GA120DN2S Original Industrial Spare FF Series Compatible: Ensuring System Stability in High-Power Drive Applications

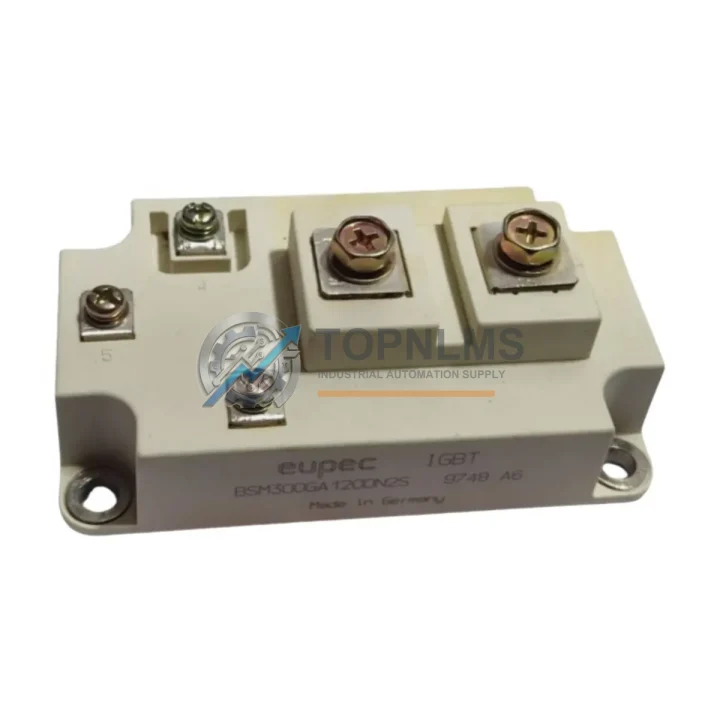

The EUPEC BSM300GA120DN2S is a 300A / 1200V full-bridge IGBT power module from the renowned FF Series product family, originally engineered by EUPEC — a brand now integrated into the Infineon Technologies power semiconductor portfolio. This module is a cornerstone component in high-power industrial drive systems, medium-voltage frequency converters, UPS systems, traction inverters, and regenerative braking units. For maintenance engineers and procurement specialists managing aging drive cabinets, securing a verified original spare of the BSM300GA120DN2S is one of the most impactful steps toward eliminating unplanned downtime and extending the operational life of existing control infrastructure.

At TOPNLMS, every BSM300GA120DN2S unit is sourced from authorized supply channels, subjected to pre-shipment electrical testing, and backed by a 12-month warranty. We understand that in industrial environments, a failed IGBT module can halt an entire production line — which is why we maintain ready stock and offer rapid dispatch to minimize your mean time to repair (MTTR).

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Drive Cabinet Beyond the IGBT Module

Experienced maintenance teams know that when an IGBT power module like the BSM300GA120DN2S fails, it rarely fails in isolation. High-power switching events, thermal cycling, and DC bus transients place stress on every component in the same power stage. A disciplined preventive maintenance strategy — one that treats the BSM300GA120DN2S replacement as a trigger for a broader cabinet inspection — dramatically reduces the probability of a second unplanned outage within weeks of the first repair.

When replacing the BSM300GA120DN2S, begin with the gate driver board. The gate driver is the first component to absorb the energy of a module shoot-through event; even if it appears functional, latent damage to the gate resistors or optocoupler isolation stages can cause erratic switching behavior that shortens the life of the new module. Inspect and, where budget allows, replace the gate driver PCB as a matched set with the power module.

Next, evaluate the DC bus capacitor bank. Electrolytic capacitors in the DC link degrade over time through ESR increase and capacitance loss. A weakened capacitor bank cannot adequately suppress voltage spikes during switching transitions, which accelerates IGBT wear. If the drive has been in service for more than five years, proactive capacitor replacement — particularly the main DC bus film or electrolytic capacitors — is strongly recommended alongside the BSM300GA120DN2S installation.

The current sensing module or Hall-effect transducer mounted in the same phase leg should also be verified. Inaccurate current feedback can cause the drive controller to permit overcurrent conditions that stress the new IGBT module from day one. Similarly, inspect the NTC thermistor or temperature sensor bonded to the module baseplate or heatsink — a faulty temperature reading can disable the drive’s thermal protection, leading to premature failure of the replacement module.

For drives using a fiber optic communication link between the control board and the gate driver (common in medium-voltage EUPEC-based systems), check the fiber connectors and plastic optical fiber (POF) cables for brittleness, contamination, or bend-radius violations. Degraded fiber links introduce signal jitter that manifests as asymmetric switching delays — a subtle but damaging condition for high-current IGBT modules.

At the control level, verify the drive control board or DSP controller card for any fault history logs, EEPROM parameter integrity, and firmware version compatibility with the replacement module’s gate charge characteristics. In older EUPEC FF-series drive platforms, firmware parameters such as dead-time compensation and current limit thresholds may need recalibration after a module swap.

Finally, inspect the power terminal bus bars, flexible copper connectors, and M6 module terminal bolts for signs of arcing, discoloration, or loosening due to thermal cycling. Retorque all connections to the manufacturer’s specified values. Poor contact resistance at the module terminals is a leading cause of localized overheating that voids warranty coverage and shortens module life. While the cabinet is open, also check the cooling fan units and heatsink thermal interface material (TIM) — degraded TIM between the module baseplate and heatsink can raise junction temperatures by 10–20°C under full load, significantly reducing IGBT reliability.

Maintaining a small buffer stock of the BSM300GA120DN2S alongside complementary components — including spare gate driver boards, DC bus capacitors, NTC sensors, and fiber optic cables — transforms your maintenance posture from reactive to proactive, and is the single most effective way to protect production continuity in facilities running EUPEC FF-series drive systems.

Strategic Replacement Solutions: Extending Legacy System Life with Original Spares

The BSM300GA120DN2S occupies a critical position in the spare parts lifecycle of EUPEC FF-series drive platforms. As original equipment manufacturers (OEMs) discontinue support for drive systems built in the 1990s and 2000s, the availability of verified original IGBT modules becomes the primary determinant of whether a legacy system can continue operating or must be replaced at significant capital cost.

The BSM300GA120DN2S is a direct replacement for earlier EUPEC variants including the BSM300GA120DN2 and is dimensionally and electrically compatible with several equivalent FF-series footprint modules from the same generation. This cross-compatibility means that maintenance engineers can standardize on the BSM300GA120DN2S as a single stocking SKU to cover multiple drive models within the same facility — reducing inventory complexity while maintaining full electrical compatibility.

For facilities managing a fleet of aging drives, a structured condition-based replacement program — where IGBT modules are proactively replaced at defined service intervals (typically 8–12 years or after a defined number of thermal cycles) rather than waiting for failure — has been shown to reduce total maintenance cost and unplanned downtime significantly. TOPNLMS supports this approach by offering volume pricing for multi-unit procurement, enabling facilities to stock replacement modules at a cost-effective per-unit price while maintaining the inventory depth needed for rapid response.

Every BSM300GA120DN2S shipped by TOPNLMS is accompanied by a test report confirming key electrical parameters, original manufacturer packaging where available, and full traceability documentation. This level of supply chain transparency is essential for facilities operating under ISO 9001 quality management systems or industry-specific compliance frameworks that require documented component provenance.

Support FAQ

Q1: Is the BSM300GA120DN2S still in production, and what is its spare parts lifecycle status?
The BSM300GA120DN2S is a mature product within the EUPEC/Infineon FF-series portfolio. While active production status may vary, TOPNLMS maintains stock sourced from authorized distribution channels and legacy inventory. We recommend contacting us to confirm current availability and lead times for your specific quantity requirement. For long-term planning, we advise procuring a buffer stock of 1–3 units per drive system to protect against supply interruptions.

Q2: How do I verify compatibility before installation?
Compatibility verification should include: (1) confirming the module footprint and terminal pitch match your existing heatsink and bus bar layout; (2) verifying that the gate driver board’s output voltage and gate resistor values are appropriate for the BSM300GA120DN2S gate charge specification; and (3) checking that the drive firmware’s current limit and dead-time parameters are aligned with the module’s switching characteristics. TOPNLMS technical support can assist with compatibility cross-referencing based on your drive model and existing module part number.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every BSM300GA120DN2S unit undergoes electrical parameter verification prior to dispatch, including collector-emitter leakage current (ICES), gate-emitter threshold voltage (VGE(th)), and isolation voltage checks. The 12-month warranty covers manufacturing defects and parameter non-conformance under normal operating conditions. It does not cover damage resulting from installation errors, overvoltage events, or operation outside the rated electrical and thermal parameters. Warranty claims are processed with full RMA support.

Q4: Can TOPNLMS support urgent or emergency procurement for production-critical situations?
Yes. TOPNLMS maintains ready stock of high-demand IGBT modules including the BSM300GA120DN2S specifically to support emergency maintenance scenarios. Contact us directly at [email protected] or +86 18359293191 to confirm stock availability, arrange expedited shipping, and receive a same-day quotation. We ship internationally and can provide DHL/FedEx express options for time-critical orders.
