ETEL DSCDL332-131D-000A Replacement for DSCDL332 Series

Product Overview

ETEL DSCDL332-131D-000A Replacement for DSCDL332 Series: Smooth Migration & Legacy System Compatibility

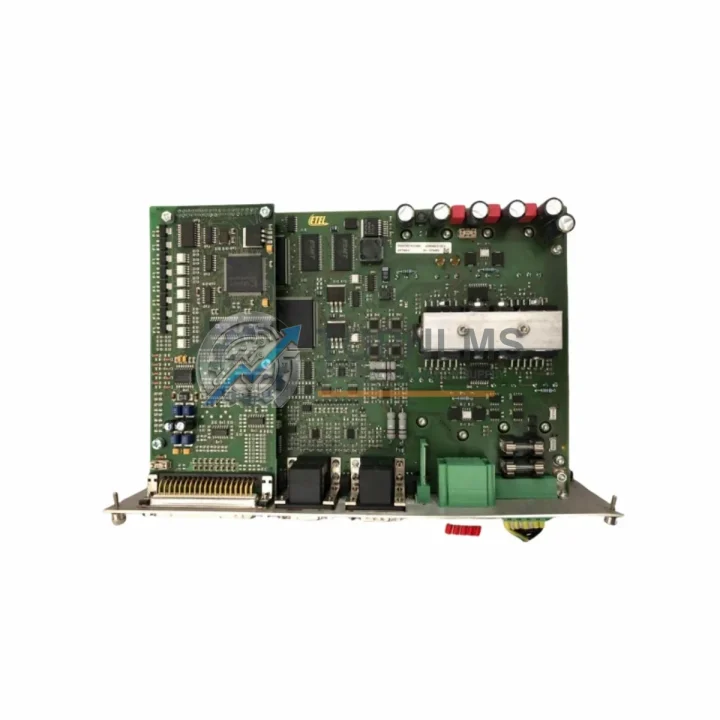

The ETEL DSCDL332-131D-000A is a high-performance servo drive control board designed for precision motion control applications within the ETEL DSCDL332 series platform. As legacy ETEL servo systems approach end-of-life or face discontinued spare part availability, engineering teams managing semiconductor fabrication equipment, precision machining centers, and advanced motion stages increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, communication protocols, and mechanical form factors. TOPNLMS supplies the DSCDL332-131D-000A as a tested, verified replacement unit with a 12-month warranty, enabling facilities to execute controlled upgrades without full system redesigns or extended production shutdowns.

This servo drive controller is engineered to interface directly with ETEL’s proprietary motion control architecture. When migrating from an older or failed DSCDL332-series board, engineers will find that the DSCDL332-131D-000A maintains backward compatibility with the existing ETEL DSCDL332 backplane and rack mounting system, eliminating the need to modify control cabinet layouts or re-engineer cable harnesses. The board’s connector pinout and power supply requirements align with the original ETEL servo amplifier infrastructure, meaning 24 VDC logic supply and high-voltage DC bus connections can be retained without rewiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life ETEL servo drive board rarely involves a single component. In practice, field engineers replacing the DSCDL332-131D-000A will often simultaneously audit adjacent components within the same control cabinet or motion stage assembly. The ETEL DSCDL332 series typically operates alongside an ETEL motion controller (such as units in the ETEL INFRANOR or ETEL DMANET family), which manages trajectory generation and position loop closure. If the motion controller itself shows signs of degradation — intermittent communication faults, encoder feedback errors, or axis initialization failures — it should be evaluated for replacement concurrently to avoid repeat downtime.

Within the same rack or backplane, the ETEL DSCDL332 drive board interfaces with I/O expansion modules that handle digital and analog signal routing between the servo system and the machine’s safety PLC or supervisory controller. These I/O modules, often sourced from the same ETEL system platform, should be inspected for connector wear and signal integrity during any servo board replacement. Similarly, the feedback interface — typically a high-resolution encoder interface module or resolver-to-digital converter board — must be verified for compatibility with the replacement DSCDL332-131D-000A to ensure accurate position feedback and closed-loop stability.

Power distribution within the control cabinet is another critical consideration. The DC bus capacitor bank and regenerative braking resistor assembly connected to the ETEL servo amplifier section should be tested for capacitance degradation and thermal damage before commissioning the replacement board. In multi-axis systems, the shared DC bus architecture means a fault in one axis’s power section can stress adjacent drive boards. Engineers should also verify the 24 VDC SMPS (switched-mode power supply) module supplying logic power to the DSCDL332 board, as aging power supplies are a common root cause of intermittent drive faults that are misdiagnosed as board failures.

For facilities running ETEL-based motion systems integrated with a Siemens SINUMERIK CNC controller or a Beckhoff TwinCAT EtherCAT master, the communication gateway or fieldbus coupler module connecting the ETEL drive network to the supervisory system should be confirmed operational. Programming cables and configuration tools — such as the ETEL EASYRIDER or equivalent commissioning software interface — will be required to re-initialize axis parameters, tune current loops, and verify encoder offset calibration after board replacement. TOPNLMS can advise on compatible programming interface hardware upon request.

In semiconductor and flat-panel display manufacturing environments, where ETEL linear motor drives and torque motor controllers are common, the DSCDL332-131D-000A replacement may also be accompanied by inspection of the linear encoder read-head, encoder signal conditioner, and thermal management components such as the drive heatsink assembly and cooling fan module. Ensuring these peripheral components are serviceable before installing the replacement board minimizes the risk of premature failure of the new unit.

Retrofit Guidance FAQ

Q: Can I install the DSCDL332-131D-000A without modifying existing wiring?
A: Yes. The DSCDL332-131D-000A is a pin-compatible replacement for the DSCDL332 series. Existing cable harnesses, connector assemblies, and terminal wiring can be retained without modification in standard replacement scenarios.

Q: Do I need to update firmware or reprogram the motion controller after replacement?
A: In most cases, the existing ETEL motion controller firmware and axis parameter files remain valid. However, it is recommended to perform a full axis initialization sequence, verify encoder offset, and re-run current loop auto-tuning after board installation to confirm stable closed-loop operation.

Q: Is the DSCDL332-131D-000A compatible with EtherCAT-based supervisory systems?
A: The DSCDL332 series is designed within ETEL’s proprietary communication architecture. Compatibility with EtherCAT masters depends on the specific system configuration and gateway hardware in use. Please contact TOPNLMS with your system topology for a pre-sale compatibility assessment.

Q: What physical space does the replacement board require?
A: The DSCDL332-131D-000A matches the original DSCDL332 series board dimensions and backplane slot requirements. No control cabinet modifications or additional mounting hardware are required for a direct replacement.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation, use the ETEL commissioning software to perform a drive enable sequence, check DC bus voltage, verify encoder feedback signals, and execute a low-speed jog test before returning the axis to full production speed. All TOPNLMS-supplied units are pre-tested prior to shipment.

Q: What if my system uses a different communication protocol than the original DSCDL332?
A: Contact TOPNLMS before ordering. Our technical team can review your system’s communication architecture and confirm whether the DSCDL332-131D-000A is the correct replacement variant for your specific configuration.

Warranty Assurance

Every ETEL DSCDL332-131D-000A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm power-on integrity, communication interface continuity, and signal output performance. Units that do not meet our quality benchmarks are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing production-critical downtime. Our after-sales response team is reachable via email and phone to coordinate return logistics, issue replacement authorizations, and provide technical guidance during the re-installation process. We maintain stock of ETEL DSCDL332 series components to support rapid fulfillment for urgent replacement requirements.

Purchasing through TOPNLMS provides B2B industrial buyers with documented procurement assurance: verified unit sourcing, pre-shipment test records available upon request, export documentation support for international shipments, and a dedicated point of contact for post-sale technical inquiries. Lead times and stock availability are confirmed at the time of order placement.
