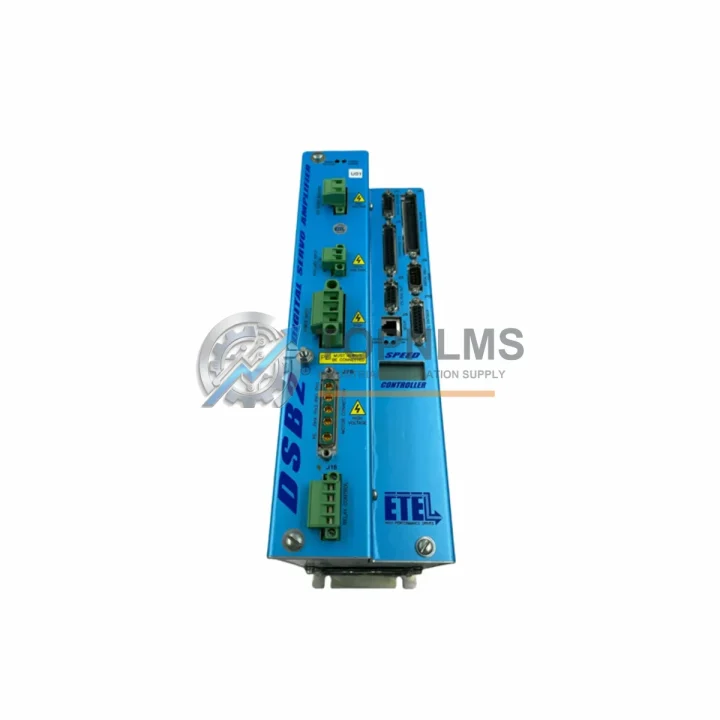

ETEL DSB2S154-211E-000H Replacement for DSB2 Series: Smooth Transition from Legacy Direct-Drive Systems

When your production line depends on ETEL’s DSB2 Series direct-drive servo technology, an unplanned failure of the DSB2S154-211E-000H drive can bring precision motion axes to a complete standstill. TOPNLMS stocks verified replacement and upgrade units for this controller, enabling engineers to restore or modernize their direct-drive systems with minimal downtime and without redesigning the surrounding control architecture.

The DSB2S154-211E-000H is a high-performance direct-drive servo controller from ETEL’s DSB2 platform, designed for torque-motor and linear-motor applications in semiconductor equipment, metrology systems, precision machining centers, and advanced robotics. Its compact form factor, real-time EtherCAT or SynqNet communication interface, and integrated safety functions make it a cornerstone component in many multi-axis motion systems. When this unit reaches end-of-life or sustains damage, sourcing a compatible replacement quickly is critical to protecting production schedules.

Our replacement units are fully tested against ETEL’s original electrical and firmware specifications. Each drive ships with a 12-month warranty and a pre-shipment functional verification report, giving procurement teams and maintenance engineers the confidence they need before committing to installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSB2S154-211E-000H replacement rarely involves swapping the drive in isolation. In most multi-axis direct-drive systems, the servo drive communicates upstream with a motion controller — typically an ETEL DUET motion controller or a third-party EtherCAT master such as a Beckhoff CX series IPC — and downstream with the torque motor through a dedicated power and feedback cable assembly. Before installation, engineers should verify that the ETEL DSB2 feedback cable (EnDat 2.2 variant) is undamaged, since a faulty cable can cause encoder errors that mimic drive failure.

On the power side, the DSB2S154-211E-000H shares a DC bus architecture with other axes in the same cabinet. If the replacement is triggered by a bus overvoltage event, the ETEL DSB2 regenerative braking resistor module and the shared DC bus capacitor bank should be inspected before powering up the new drive. Neglecting this step is a common cause of repeat failures in multi-axis DSB2 installations.

For systems running ETEL’s MAESTRO motion software, the axis configuration file (.axc) from the failed drive should be backed up from the controller before removal. The replacement DSB2S154-211E-000H can then be loaded with the same configuration, eliminating the need to re-tune current loops, velocity loops, or position loops from scratch. This dramatically reduces commissioning time — often from several days to under two hours for experienced engineers.

In retrofit scenarios where the host controller is being upgraded simultaneously, the DSB2S154-211E-000H integrates cleanly into EtherCAT ring topologies alongside other DSB2-family drives such as the DSB2S154-211E-000A or DSB2S154-211E-000C variants. The EtherCAT node address is set via rotary switch, so adding or replacing a node does not require topology reconfiguration on the master side. If the system uses SynqNet instead, the node ID assignment follows the same physical daisy-chain order, and the replacement drive will be recognized automatically on the next network scan.

Where cabinet space is a concern during a broader control system modernization, the DSB2 platform’s compact drive modules can be mounted alongside ETEL I/O expansion modules and 24 VDC logic power supplies without requiring additional DIN rail space. Engineers migrating from older ETEL DSB1 or legacy analog servo drives will find that the DSB2S154-211E-000H’s digital feedback interface eliminates the resolver-to-digital converter boards that were common in earlier generations, freeing up significant panel space. Signal isolation between the drive’s analog monitor outputs and the plant’s data acquisition system can be handled by a standard DIN-rail signal isolator if the existing wiring uses unshielded cable runs longer than 10 meters.

For facilities managing a broader PLC or DCS migration — for example, transitioning from a legacy Siemens S7-300 or Rockwell ControlLogix platform to a modern EtherCAT-based motion architecture — the DSB2S154-211E-000H can serve as the servo layer while the upper-level controller is replaced independently. This phased approach minimizes the scope of any single maintenance window and allows production to resume on partial capacity while the remaining axes are upgraded.

Retrofit Guidance FAQ

Q: Do I need to rewire the motor power and feedback connectors when installing the replacement DSB2S154-211E-000H?
No. The replacement unit uses the identical ETEL DSB2 connector pinout for both the motor power stage and the EnDat/Hiperface feedback interface. Existing cable assemblies can be reconnected without modification, provided the cables pass a continuity and insulation resistance check before power-up.

Q: Will my existing MAESTRO or DUET axis configuration work on the replacement drive?
Yes, provided you back up the axis configuration file from the original drive (or from the motion controller’s stored parameter set) before removal. The replacement drive accepts the same .axc parameter file. Current loop and velocity loop gains are stored in the configuration, so re-tuning is not required under normal circumstances.

Q: Is the EtherCAT node address preserved after replacement?
The EtherCAT node address on DSB2 drives is set by a physical rotary switch on the drive faceplate, not stored in firmware. Set the rotary switch to the same position as the failed unit and the EtherCAT master will recognize the replacement drive at the correct network address on the next scan cycle.

Q: What should I check on the DC bus before installing the replacement drive?
Measure the DC bus voltage with the system de-energized and verify it has discharged to a safe level (typically below 50 VDC). Inspect the shared bus capacitor bank and regenerative braking resistor for signs of thermal damage. If the original failure was caused by a bus overvoltage event, replace the braking resistor module before powering up the new drive.

Q: Can the DSB2S154-211E-000H replace older DSB1 or analog servo drives in the same cabinet?
Direct electrical substitution is not possible due to differences in feedback interface (digital vs. resolver) and communication protocol (EtherCAT/SynqNet vs. analog ±10 V). However, a phased retrofit is feasible: the DSB2S154-211E-000H can be installed on a new DIN rail section while legacy axes remain operational, allowing axis-by-axis migration without a full system shutdown.

Q: What is the physical installation space requirement?
The DSB2S154-211E-000H shares the same DIN rail mounting footprint as other DSB2-series drives. No additional cabinet cutouts or mounting hardware are required for a like-for-like replacement. Ensure a minimum 50 mm clearance above and below the drive for airflow.

Warranty Assurance

Every ETEL DSB2S154-211E-000H replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional verification that includes power stage continuity testing, communication interface handshake verification, and feedback channel signal integrity checks. A test report is available upon request and can be included with the shipment documentation for your maintenance records.

In the event of a warranty claim, TOPNLMS provides a direct replacement dispatch within 3 business days of fault confirmation, minimizing the impact on your production schedule. Our technical support team is available to assist with installation queries, parameter configuration, and commissioning guidance throughout the warranty period.

For urgent requirements — including same-day quotation, express air freight, and customs documentation for cross-border shipments — contact our sales team directly. We maintain stock of DSB2-series drives and related components to support emergency breakdown situations.

Stock is available for immediate dispatch from Xiamen, China. Express international shipping is available to most destinations with full export documentation, commercial invoice, and packing list provided as standard.
