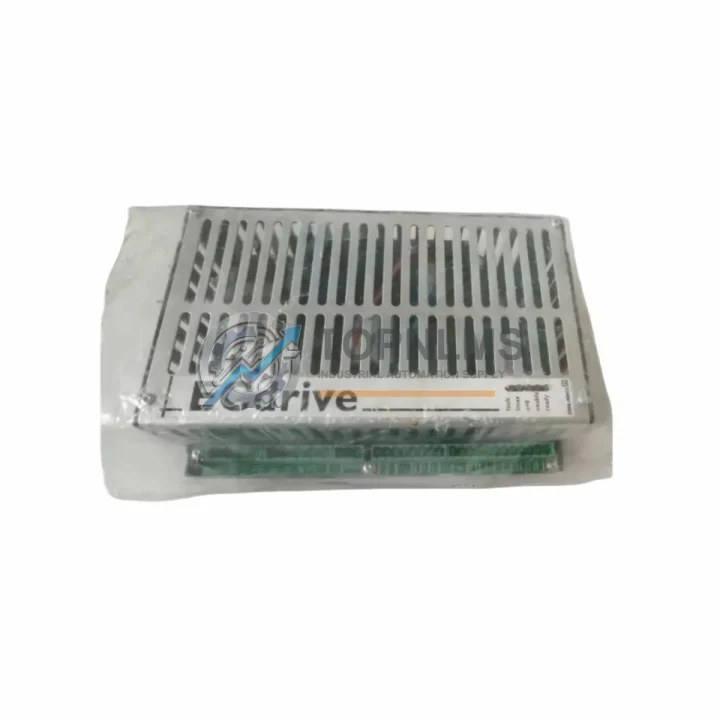

ETEL D230B004-306071 Original Industrial Spare D-Series Compatible

Product Overview

ETEL D230B004-306071 Original Industrial Spare D-Series Compatible: Securing System Stability in Precision Motion Control

The ETEL D230B004-306071 is a genuine original AC servo drive from ETEL’s renowned D-Series precision amplifier family, engineered for high-performance motion control in demanding industrial automation environments. Whether you are managing a planned maintenance shutdown, responding to an unscheduled equipment failure, or building a strategic spare parts inventory, the D230B004-306071 represents a critical asset for any facility operating ETEL-based servo systems. Its direct form-fit-function compatibility with the D-Series platform ensures that replacement is fast, reliable, and requires no system reconfiguration — minimising downtime and protecting production continuity.

ETEL servo drives are widely deployed in semiconductor manufacturing, precision machining, medical device assembly, and advanced robotics. In these environments, a failed servo amplifier can halt an entire production line within seconds. Stocking the D230B004-306071 as a certified original spare eliminates the risk of extended lead times and ensures your maintenance team can execute a swap-out within a single shift window.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. In ETEL D-Series motion systems, the amplifier operates as part of a tightly integrated control loop that includes the motor, encoder, power supply, and supervisory controller. Experienced maintenance engineers know that when a D230B004-306071 is replaced, it is best practice to simultaneously inspect — and where necessary, replace — the surrounding components that share the same electrical circuit and thermal environment.

During a planned maintenance window or emergency repair, technicians should inspect the ETEL motor feedback cables and encoder connectors for insulation degradation, pin corrosion, or intermittent contact — these are a leading cause of servo fault codes that are often misdiagnosed as drive failures. The DC bus capacitors and power supply module feeding the D-Series amplifier should be checked for capacitance drift and ripple voltage, as an ageing power supply can stress the drive’s internal rectifier stage and shorten its service life.

The 24 VDC control power supply that powers the drive’s logic board is another component worth proactive replacement during the same maintenance cycle. A marginal control supply can cause intermittent enable faults and erratic axis behaviour that is difficult to trace. Similarly, the safety relay module or STO (Safe Torque Off) circuit connected to the D230B004-306071 should be tested for correct response time and contact integrity — STO circuit degradation is a common but overlooked source of nuisance trips in servo systems.

For facilities running multi-axis ETEL systems, it is advisable to audit the EtherCAT or fieldbus communication module and associated shielded communication cables at the same time. EMI-induced communication errors can cause axis synchronisation faults that appear to originate from the drive but are actually upstream network issues. Replacing aged cables and verifying termination resistors costs far less than a misdiagnosed drive replacement.

The motor power cable and braking resistor (if fitted) should also be inspected. Insulation resistance testing of the motor cable with a megohmmeter is recommended every 12 months in high-cycle applications. A degraded motor cable can cause ground fault trips that damage the drive’s output stage. If the system includes a regenerative braking unit or dynamic braking resistor module, verify its resistance value and thermal condition — an open-circuit braking resistor can cause DC bus overvoltage faults during deceleration.

Finally, review the condition of the control cabinet’s cooling fans, air filters, and thermal management components. ETEL D-Series drives are sensitive to elevated ambient temperatures; a blocked filter or failed cabinet fan can reduce the drive’s MTBF significantly. Pairing a D230B004-306071 replacement with a full cabinet thermal audit is a best-practice approach that maximises the return on your maintenance investment.

Strategic Replacement Solutions

The D230B004-306071 is designed as a direct replacement within the ETEL D-Series amplifier family. Its standardised mechanical footprint and connector layout mean that a trained technician can complete a swap-out without mechanical modification to the control cabinet. The drive’s firmware is configurable via ETEL’s commissioning software, allowing parameter sets from the outgoing unit to be uploaded to the replacement drive — preserving tuning data, axis limits, and safety parameters accumulated over years of operation.

For facilities managing legacy ETEL systems that are no longer supported under the original OEM service contract, stocking the D230B004-306071 as an on-site spare is the most cost-effective strategy for extending system life. The alternative — a full motion control system upgrade — typically involves significant engineering, integration, and revalidation costs that can be deferred by maintaining a reliable spare parts inventory. A single stocked unit can protect a production line worth many times its purchase price.

When sourcing replacement servo drives, it is essential to verify that the unit has undergone pre-shipment functional testing. At TOPNLMS, every D230B004-306071 is inspected and tested before dispatch, and ships with a 12-month warranty covering functional defects under normal operating conditions. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage to sensitive power electronics.

Support FAQ

Q1: Is the D230B004-306071 a new or refurbished unit?
We supply both new original stock and fully tested, refurbished units depending on availability. All units — regardless of condition — undergo a pre-shipment functional test and are covered by a 12-month warranty. The condition of the specific unit available will be confirmed at the time of order.

Q2: How do I verify compatibility with my existing ETEL D-Series system?
Compatibility is confirmed by matching the full part number D230B004-306071 against your existing drive label or system documentation. If you have a different D-Series variant or are unsure, please contact us with your system’s motor model and axis configuration — our technical team will advise on cross-compatibility and any firmware considerations.

Q3: What is the typical lead time and how is the unit shipped?
In-stock units are dispatched within 1–3 business days. International shipments are sent via DHL Express or FedEx with full tracking. The drive is packed in ESD-safe anti-static packaging with foam cushioning. Export documentation including commercial invoice and packing list is provided for customs clearance.

Q4: What does the 12-month warranty cover?
The warranty covers functional defects arising under normal operating conditions — including internal component failure, firmware corruption, and communication interface faults. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental parameters. Warranty claims are processed by returning the unit to our facility for inspection and repair or replacement.
