ESTIC ENRZ-AU40-20 Replacement for ENRZ-AU Series

Product Overview

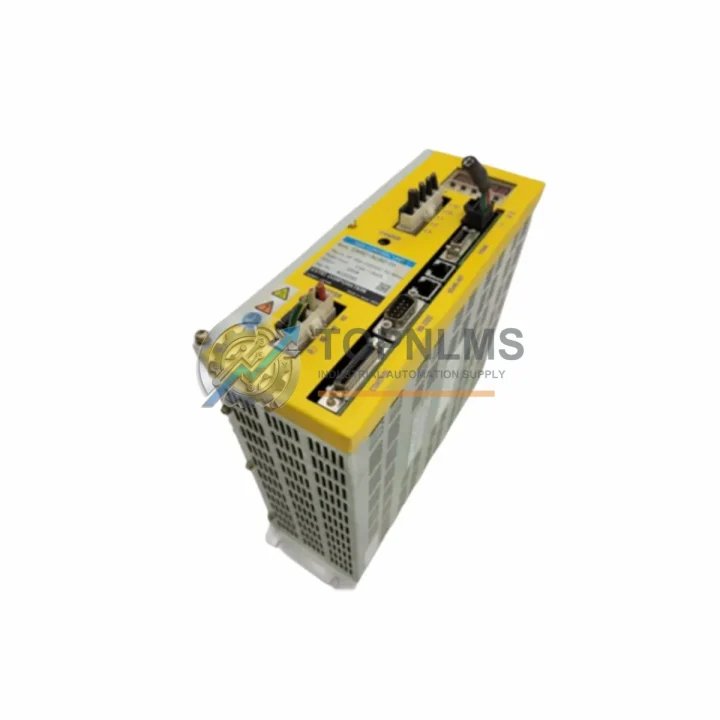

ESTIC ENRZ-AU40-20 Replacement for ENRZ-AU Series: Smooth Transition & Legacy System Compatibility

When your production line depends on an ESTIC ENRZ-AU40-20 servo drive and the original unit reaches end-of-life or fails unexpectedly, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. TOPNLMS supplies the ESTIC ENRZ-AU40-20 as a verified replacement and upgrade solution for the ENRZ-AU Series, engineered to slot into your existing control cabinet with minimal re-engineering. Whether you are retiring a legacy servo system, consolidating spare-parts inventory, or executing a phased modernization of a multi-axis motion platform, this unit is sourced, tested, and ready to ship from our Xiamen warehouse.

The ENRZ-AU40-20 is a compact AC servo drive rated for the ENRZ-AU Series architecture. It accepts the same 200 V AC single-phase or three-phase input as predecessor models in the ENRZ-AU family, preserving your existing panel wiring and transformer sizing. The control interface retains the standard CN1 connector pinout used across the ENRZ-AU Series, which means your existing servo motor cables, encoder feedback lines, and I/O harnesses connect without modification. Engineers migrating from an older ENRZ-AU unit — such as the ENRZ-AU30-20 or ENRZ-AU20-20 — will find that the parameter structure and gain-tuning registers are forward-compatible, dramatically reducing re-commissioning time on the shop floor.

In multi-axis installations where the ENRZ-AU40-20 operates alongside a host PLC or motion controller, communication compatibility is a primary concern. The drive supports the pulse-train (PULS/SIGN) and analog torque/speed command interfaces standard to the ENRZ-AU Series, making it directly interchangeable with controllers from Mitsubishi Electric’s MELSEC Q Series, Omron’s NJ/NX Series, and Keyence’s KV Series without modifying the ladder program or motion profile. If your system uses a dedicated ESTIC controller or a third-party fieldbus gateway for RS-232C or RS-485 communication, the ENRZ-AU40-20 retains the same baud-rate and protocol settings, so existing HMI screens and SCADA monitoring points remain fully functional after swap-out.

Physical installation is equally straightforward. The ENRZ-AU40-20 occupies the same DIN-rail or panel-mount footprint as other drives in the ENRZ-AU Series, so control-cabinet space planning requires no modification. Cooling airflow direction and heat-sink orientation are unchanged, preserving thermal management in densely packed enclosures. The regenerative braking resistor connection terminals are pin-compatible with existing external resistor assemblies, avoiding the need to re-route high-current wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful servo drive replacement rarely involves the drive alone. During the migration process, engineers typically audit and refresh the surrounding components to ensure system-wide reliability. When replacing the ENRZ-AU40-20, it is common practice to simultaneously inspect or replace the matched ESTIC servo motor — typically an ENRZ-M Series or equivalent brushless AC servo motor — to ensure encoder signal integrity and eliminate the risk of a secondary failure shortly after the drive swap. The servo motor cable assembly and encoder cable should also be verified or renewed, as aged insulation can introduce noise that triggers fault codes on a freshly installed drive.

On the controller side, if the host PLC is also aging, engineers often take the opportunity to upgrade the motion control module. Mitsubishi Electric QD75 positioning modules and Omron NX-series motion control units are frequently encountered in the same control cabinets as ENRZ-AU Series drives, and their pulse-output specifications are fully compatible with the ENRZ-AU40-20. For systems using a dedicated ESTIC programmer or handheld parameter unit to configure drive parameters, the existing programming cable (typically a USB-to-RS-232C adapter with the ESTIC pinout) can be reused without modification.

Power supply integrity is another critical checkpoint. A 24 V DC control power supply module feeding the I/O interface of the ENRZ-AU40-20 should be load-tested before commissioning the replacement drive. Terminal blocks and wiring duct within the control cabinet should be inspected for heat damage or loose connections, particularly on the motor power output terminals (U, V, W) and the regenerative resistor circuit. Signal isolators or surge suppressors on the command input lines help protect the new drive from transient voltages common in older installations with long cable runs.

For facilities managing multiple servo axes, it is advisable to stock at least one additional ENRZ-AU40-20 unit as a cold spare alongside the installed replacement, reducing future mean-time-to-repair to under 30 minutes for any subsequent drive failure on the same axis type.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor wiring when replacing the drive?
Yes. The ENRZ-AU40-20 uses the same U/V/W motor output terminal layout and CN2 encoder connector as predecessor ENRZ-AU Series drives. No rewiring of the motor cable or encoder cable is required for a direct replacement.

Q: Do I need to re-enter all drive parameters after replacement?
If you have a backup of the original drive’s parameter file (saved via the ESTIC parameter software or handheld unit), parameters can be restored directly. The ENRZ-AU40-20 shares the same register map as other ENRZ-AU Series drives, so parameter files from compatible predecessor models are transferable with minor gain-tuning verification.

Q: Is the ENRZ-AU40-20 compatible with my existing PLC pulse-output module?
Yes. The drive accepts standard differential or open-collector pulse-train (PULS/SIGN or CW/CCW) command signals at 5 V or 24 V logic levels, compatible with positioning modules from Mitsubishi Electric, Omron, Keyence, and other major PLC vendors without hardware modification.

Q: Will the drive fit in my existing control cabinet without modification?
The ENRZ-AU40-20 retains the same physical dimensions and mounting pattern as other drives in the ENRZ-AU Series. No cabinet modification, additional DIN-rail space, or ventilation changes are required.

Q: What communication protocol does the ENRZ-AU40-20 support for parameter monitoring?
The drive supports RS-232C and RS-485 serial communication using the ESTIC proprietary protocol, compatible with existing ESTIC parameter software and HMI monitoring configurations already deployed in your system.

Q: Can I use this drive as a cross-replacement for a different ENRZ-AU wattage model?
The ENRZ-AU40-20 is rated at 40 W and is designed for use with matched 40 W ESTIC servo motors. Cross-replacement with lower-wattage models (e.g., ENRZ-AU20-20) is not recommended without verifying motor nameplate ratings and adjusting current-limit parameters accordingly.

Warranty Assurance

Every ESTIC ENRZ-AU40-20 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering power-on self-test, control interface signal verification, and encoder feedback continuity check. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day via email or phone. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

For procurement teams managing critical spare-parts programs, TOPNLMS can provide batch inspection reports, unit serial numbers, and shipping documentation (commercial invoice, packing list, and certificate of origin) to support customs clearance and internal asset-management records. Stock is held in our Xiamen facility and is available for same-day or next-business-day dispatch on confirmed orders.

For volume inquiries, technical compatibility questions, or expedited shipping requests, contact our team directly.
