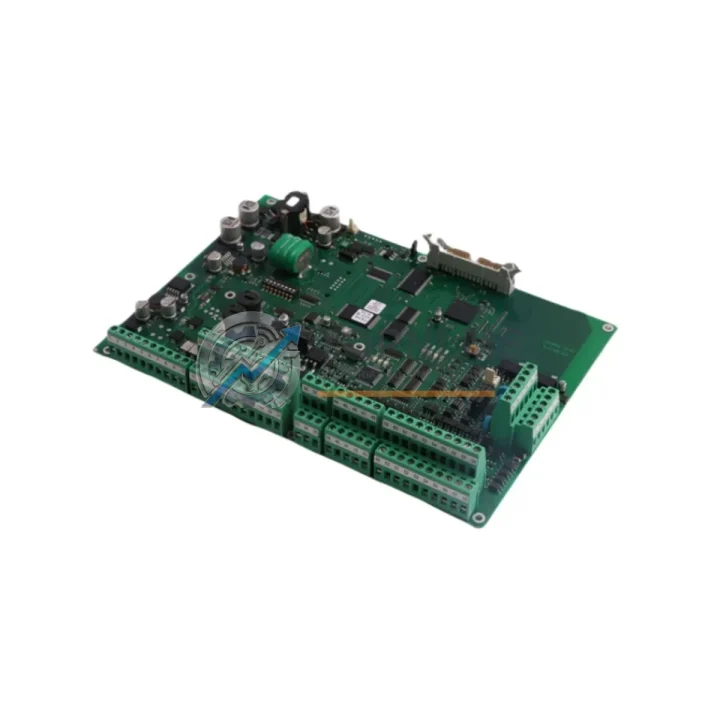

ERNI EM-DIO-02 2445400132LS Ruggedized Digital I/O Module

Product Overview

ERNI EM-DIO-02 2445400132LS Ruggedized Digital I/O Module for Harsh Industrial Environments

The ERNI EM-DIO-02 (Part No. 2445400132LS) is a precision-engineered digital input/output module from ERNI Electronics’ EM Series backplane expansion platform. Designed to deliver uncompromising signal integrity and operational continuity in the most demanding industrial environments, this module is a trusted backbone component for control engineers, system integrators, and maintenance teams operating in high-stakes automation infrastructure worldwide.

Built to Swiss engineering standards, the EM-DIO-02 is engineered for deployment in environments characterized by extreme temperature cycling, high ambient humidity, pervasive airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether installed in a sealed control cabinet on an offshore oil platform, a dusty mining conveyor system, or a high-cycle automotive stamping line, this module maintains deterministic I/O performance without signal degradation or spurious faults.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the EM-DIO-02 rarely operates in isolation. It is most commonly deployed as part of a tightly integrated EM Series rack alongside the ERNI EM-CPU-01 central processing unit and the ERNI EM-PSU-02 regulated power supply module, which together form the core of a distributed I/O node. The backplane bus ensures low-latency, noise-immune communication between all rack-mounted modules without the need for additional field wiring between I/O and logic layers.

For applications requiring analog signal acquisition alongside digital control, the EM-DIO-02 is frequently paired with the ERNI EM-AIO-04 analog I/O module, enabling mixed-signal control loops within a single compact rack. In safety-critical zones — such as SIL 2 or SIL 3 classified areas — the module is deployed in conjunction with dedicated safety relay modules and emergency stop interface units that provide hardwired redundancy independent of the PLC scan cycle.

Communication-intensive installations often integrate the ERNI EM-COM-01 PROFIBUS DP communication module or an EM-COM-02 Modbus RTU gateway into the same backplane, allowing the EM-DIO-02’s I/O data to be transparently mapped to upstream SCADA systems or DCS controllers such as Siemens SIMATIC S7-300/S7-400 or ABB System 800xA. This interoperability makes the EM-DIO-02 a versatile field node in heterogeneous control environments.

For power conditioning and surge protection, industrial best practice calls for upstream 24 VDC DIN rail power supplies with active PFC and output short-circuit protection, as well as transient voltage suppression (TVS) modules on field signal lines entering the I/O module. Terminal blocks with integrated surge arresters — such as those from the Phoenix Contact PTFIX or Weidmüller Klippon series — are commonly used at the cabinet entry point to protect the EM-DIO-02’s input channels from field-induced transients.

In high-vibration environments such as compressor stations or heavy press lines, the control cabinet housing the EM-DIO-02 is typically equipped with anti-vibration DIN rail mounting clips and shock-absorbing cabinet feet, ensuring that connector integrity is maintained over the full service life of the installation.

Application in Critical Infrastructure

The ERNI EM-DIO-02 2445400132LS has established a strong track record across the most demanding sectors of critical industrial infrastructure.

In oil and gas upstream and midstream operations, the module is deployed in wellhead control panels and pipeline SCADA RTUs where it monitors valve position feedback, pressure switch states, and motor run/fault signals. Its wide operating temperature range and optocoupler-isolated inputs ensure reliable operation in both arctic pipeline environments and high-ambient desert installations.

In underground and open-cut mining, the EM-DIO-02 is integrated into conveyor drive control panels and ventilation management systems. The module’s vibration tolerance and sealed backplane connector system prevent the contact fretting and intermittent faults that plague standard commercial-grade I/O in high-shock environments.

In power generation and grid substations, the module interfaces with protection relay auxiliary contacts, circuit breaker status inputs, and transformer tap-changer control outputs. Its EMI immunity is critical in environments where high-voltage switching generates intense electromagnetic transients that can corrupt data on lesser-grade I/O hardware.

In municipal water treatment and wastewater facilities, the EM-DIO-02 monitors pump run/fault status, valve open/close confirmation, and level switch states across distributed pump stations. Its ability to operate reliably in high-humidity, chemically aggressive atmospheres makes it a preferred choice over general-purpose I/O modules.

In metallurgical and steel mill environments, the module is used in rolling mill drive control systems and furnace atmosphere management panels, where it must withstand radiated heat, conductive dust, and the intense EMI generated by large variable frequency drives (VFDs) and DC motor controllers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. In the event of a warranty claim, customers contact TOPNLMS at [email protected] with the order reference and a description of the fault. We arrange return shipping, perform functional verification, and dispatch a replacement or repaired unit within 5–7 business days of receipt.

Q2: How is each unit tested before shipment?
Every ERNI EM-DIO-02 2445400132LS unit undergoes a pre-shipment functional verification procedure that includes power-on self-test confirmation, backplane connector integrity inspection, and channel continuity verification. Units that do not pass all checks are quarantined and not dispatched. A test record is retained for traceability.

Q3: Is the EM-DIO-02 compatible with my existing ERNI EM Series rack?
Yes. The EM-DIO-02 is designed for direct plug-in compatibility with all standard ERNI EM Series backplane assemblies. No firmware update or hardware modification is required for integration into an existing EM Series rack. If you are uncertain about compatibility with a specific rack revision or CPU firmware version, contact our technical team with your rack part number for confirmation before ordering.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated stock of high-demand ERNI EM Series modules to support planned maintenance schedules, emergency breakdown replacements, and multi-year spare parts agreements. We can provide volume pricing, reserved stock arrangements, and scheduled delivery programs for customers with ongoing operational requirements. Contact [email protected] to discuss your supply continuity needs.
