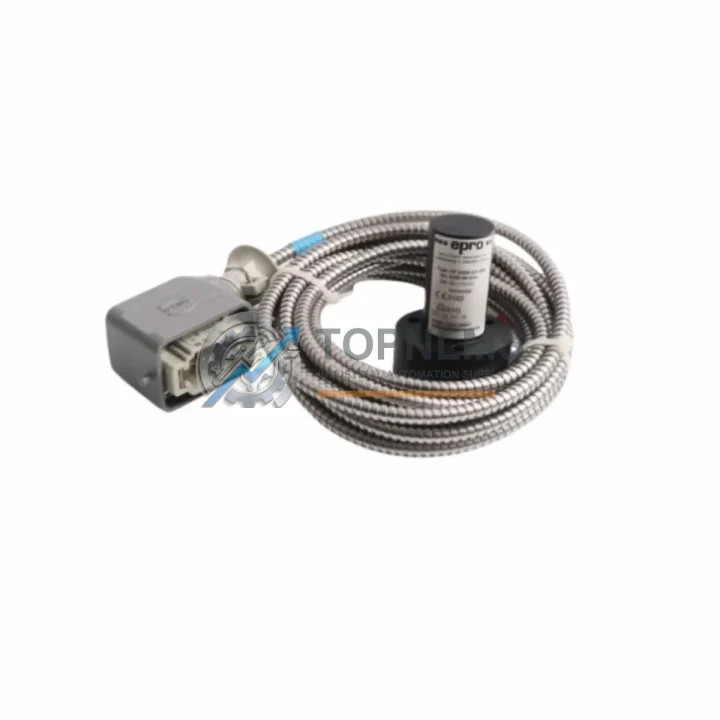

EPRO PR9268/301-000 Replacement for PR9268 Series

Product Overview

EPRO PR9268/301-000 Replacement for PR9268 Series: Smooth Transition & Legacy System Compatibility

The EPRO PR9268/301-000 is a high-precision eddy current proximity sensor engineered for vibration, displacement, and position measurement in rotating machinery and critical industrial control systems. For facilities operating legacy turbine monitoring, compressor protection, or shaft displacement measurement systems built around the EPRO PR9268 Series, this unit delivers a direct, drop-in upgrade path that eliminates the need for rewiring, signal conditioning redesign, or control cabinet reconfiguration.

Whether your existing installation relies on the PR9268/301-000 or an adjacent variant such as the PR9268/201-000 or PR9268/011-000, the PR9268/301-000 maintains full backward compatibility with standard EPRO signal conditioning electronics, including the CON021 and CON041 series signal conditioners. The sensor’s 8 mm probe diameter, standard M10 thread, and 5-metre integral cable length match the original mechanical footprint, allowing direct substitution without modification to existing probe holders, cable glands, or junction boxes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR9268/301-000 retrofit typically involves more than a single sensor swap. In most turbine, compressor, or pump monitoring installations, the PR9268/301-000 probe operates as part of a complete proximity measurement chain. The CON021 or CON041 signal conditioner mounted in the control cabinet converts the raw sensor signal into a 4–20 mA or voltage output readable by the plant DCS or safety system. If the conditioner is also approaching end-of-life, replacing both the PR9268/301-000 probe and its paired conditioner simultaneously eliminates the risk of mismatched calibration curves and reduces future maintenance windows.

For installations where the PR9268/301-000 feeds into a Bently Nevada 3500 Series machinery protection rack, the analogue signal interface remains unchanged, and no rack reconfiguration or I/O module substitution is required. Similarly, facilities using the Bently Nevada 3300 XL or 7200 Series monitors will find the PR9268/301-000 output fully compatible with existing input cards, preserving alarm setpoints and trip thresholds without reprogramming.

Where the sensor is part of a broader shaft displacement or axial position measurement loop, engineers should also verify the condition of the extension cable — typically a PR9268-compatible 5 m or 9 m armoured extension — as cable impedance drift can affect calibration accuracy even when the probe itself is new. Replacing the extension cable alongside the PR9268/301-000 probe is recommended best practice for critical machinery applications.

In control cabinet environments where space is constrained, the PR9268/301-000’s compact M10 probe body and standard cable exit geometry allow installation in existing conduit runs and cable trays without rerouting. For systems integrating multiple measurement points — such as X-Y radial vibration pairs or combined radial and axial displacement monitoring — the PR9268/301-000 can be deployed alongside PR9268/011-000 or PR9268/201-000 probes already in service, maintaining a consistent sensor family across the measurement loop and simplifying spare parts inventory management.

Facilities undertaking a broader control system modernisation — for example, migrating from a legacy EPRO MMS 6000 or MMS 3000 machinery monitoring system to a current-generation platform — will find that the PR9268/301-000 sensor remains compatible with both legacy and modern signal processing architectures, protecting the sensor investment even as the upstream monitoring hardware is upgraded. Power supply requirements (–24 VDC from the signal conditioner) are unchanged, so existing DIN-rail power supply modules and fusing arrangements in the control cabinet require no modification.

Retrofit Guidance FAQ

Q: Do I need to rewire the junction box when replacing with PR9268/301-000?
A: No. The PR9268/301-000 uses the same connector pinout and cable colour coding as previous PR9268 Series variants. Existing junction box terminations and cable gland fittings are reused without modification.

Q: Will my existing CON021 or CON041 signal conditioner need recalibration after installing the PR9268/301-000?
A: A functional verification check is recommended after any probe replacement, but the PR9268/301-000 is factory-calibrated to the same sensitivity curve (200 mV/mil) as the original unit. In most cases, only a gap voltage verification at the nominal air gap is required rather than a full recalibration.

Q: Is the PR9268/301-000 compatible with Bently Nevada monitoring systems?
A: Yes. The analogue voltage output of the PR9268/301-000 is compatible with Bently Nevada 3500, 3300 XL, and 7200 Series input modules. No changes to monitor configuration or alarm setpoints are required.

Q: Can the PR9268/301-000 be installed in the same physical space as the probe it replaces?
A: Yes. The M10 thread, 8 mm probe diameter, and standard cable exit are identical to previous PR9268 Series variants. The probe fits existing probe holders, brackets, and conduit entries without modification.

Q: What communication protocol does the PR9268/301-000 use?
A: The PR9268/301-000 outputs a standard analogue voltage signal (–24 VDC bias, 200 mV/mil sensitivity). It does not use a digital fieldbus protocol. Integration with DCS, PLC, or safety system I/O is via the paired signal conditioner’s analogue output (typically 4–20 mA or ±10 V).

Q: How do I verify correct installation before returning the machine to service?
A: Set the probe air gap to the nominal value specified in the original installation drawing (typically 1.0–1.5 mm for 8 mm probes). Verify the gap voltage at the signal conditioner output matches the calibration chart. Confirm vibration and position readings are within expected baseline values before releasing the machine.

Warranty Assurance

Every EPRO PR9268/301-000 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including output voltage check, insulation resistance test, and physical inspection to confirm it meets EPRO factory specifications. Units that do not pass pre-shipment testing are not dispatched.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation verification, gap setting guidance, and signal conditioner compatibility questions to minimise your troubleshooting time on site.

Stock is maintained in Xiamen for fast dispatch. Standard international shipping timelines apply, with express options available for urgent breakdown situations. All units are shipped with appropriate protective packaging to prevent transit damage to the probe tip and cable assembly.

For procurement enquiries, volume pricing, or technical pre-sales support, contact our team directly.
