EPRO PR6426/00 CON011/916-200 Replacement Solution

Product Overview

EPRO PR6426/00 CON011/916-200 Replacement Solution: Seamless Transition from Legacy Eddy Current Systems

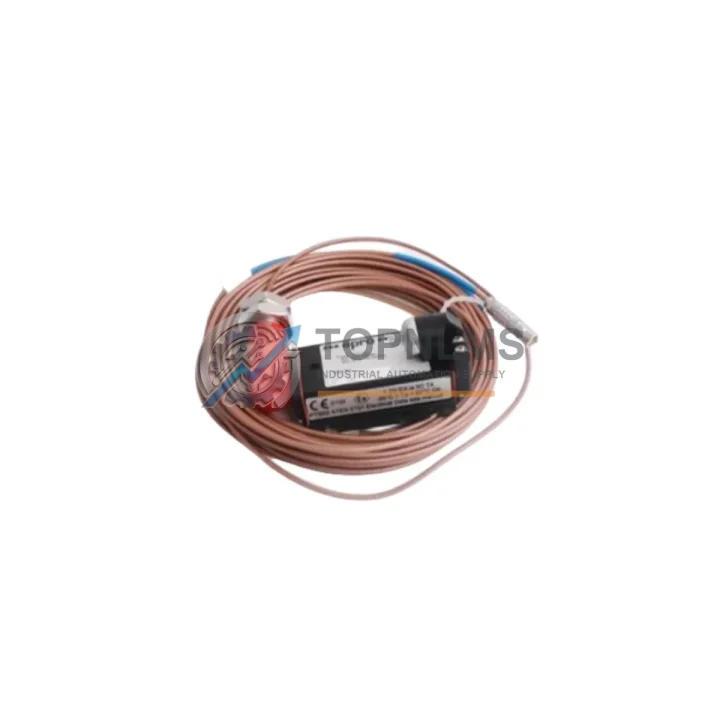

The EPRO PR6426/00 CON011/916-200 is a precision eddy current proximity sensor and extension cable assembly engineered for continuous shaft vibration, displacement, and position monitoring in rotating machinery. As legacy Bently Nevada and EPRO PR6426 Series installations age — or as OEM support windows close — plant engineers and reliability teams face the critical challenge of sourcing a verified drop-in replacement that preserves existing wiring infrastructure, signal conditioning compatibility, and machinery protection system integrity without forcing a full platform overhaul.

This replacement solution is purpose-built for facilities migrating away from discontinued or end-of-life eddy current sensor assemblies. Whether your existing installation uses a PR6426/000-010, PR6426/010-010, or other PR6426 Series variants paired with CON011 extension cables, the PR6426/00 CON011/916-200 maintains the same 8 mm probe diameter, 200 mm extension cable length, and standard Bently Nevada-compatible output signal range (−24 VDC nominal gap voltage, 7.87 V/mm sensitivity), enabling a direct swap with no re-ranging of the connected 3300 XL 8mm Proximity Transducer System or equivalent EPRO signal conditioner.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful eddy current sensor replacement rarely involves a single component. In most turbine, compressor, pump, and motor protection installations, the PR6426/00 CON011/916-200 operates as part of a tightly integrated measurement chain. During migration or scheduled maintenance windows, reliability engineers typically address the full signal path to eliminate latent failure points and ensure system-wide calibration integrity.

The probe assembly connects directly to a CON011 extension cable — if the existing cable shows insulation degradation or connector wear, replacing it alongside the probe eliminates a common source of signal noise and ground loops. Upstream, the signal feeds into a PR9376 driver / oscillator or equivalent EPRO signal conditioner mounted in the machinery protection rack; verifying driver compatibility and recalibrating the gap voltage at installation is standard practice. The conditioned output then routes to a 3500/42M Proximitor I/O Module or a EPRO MMS 6350 Vibration Monitor for alarm and trip processing — both accept the standard −24 VDC output without modification.

For installations where the protection rack itself is being modernized, the PR6426/00 CON011/916-200 integrates cleanly with Bently Nevada 3500 Series rack systems, including the 3500/20 Rack Interface Module and 3500/15 Power Supply, preserving existing I/O wiring and Modbus or RS-232 communication links to the DCS or SCADA layer. Where control cabinet space is constrained, the compact probe body and 200 mm cable assembly fit standard bearing housing brackets without modification to the mounting plate or conduit runs.

In multi-channel shaft monitoring applications — such as radial vibration measurement on both X and Y axes — a matched pair of PR6426/00 probes with individual CON011/916-200 extension cables ensures consistent sensitivity across channels, simplifying vector summation and orbit plot analysis in the connected vibration analyzer or historian. Signal isolation between channels is maintained by the probe’s inherent differential measurement principle, eliminating the need for additional signal isolators or galvanic separation modules in most installations.

Where legacy wiring uses older PR9268 or PR9270 Series coaxial cable runs, the CON011 extension cable’s standard EPRO connector interface allows direct termination without adapter hardware, reducing installation time during planned outages. For sites transitioning from older Bently Nevada 7200 Series proximity systems, a sensitivity and gap recalibration procedure — performed with a standard oscilloscope and target simulator — is the only field adjustment required before returning the machine to service.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring and conduit runs?
Yes. The PR6426/00 CON011/916-200 uses the same EPRO coaxial connector standard and M10 × 1 mm mounting thread as the original PR6426 Series, so existing conduit, junction boxes, and terminal blocks require no modification.

Q: Do I need to reconfigure the driver or signal conditioner?
No reconfiguration is required if the existing driver is a CON011-compatible unit. Gap voltage should be verified and adjusted to the nominal −12 VDC operating point (mid-range) after physical installation, which is standard commissioning practice for any eddy current probe replacement.

Q: Is the output signal compatible with my existing DCS or safety system?
Yes. The analog voltage output (−24 VDC nominal) is protocol-agnostic and interfaces directly with any 4–20 mA or voltage-input I/O card, including those used in Honeywell Experion, ABB 800xA, Emerson DeltaV, and Yokogawa CENTUM VP systems, without gateway or signal conversion hardware.

Q: What is the physical installation clearance requirement?
The 8 mm probe body requires a minimum radial clearance of 12 mm from the shaft surface to the probe tip at the nominal gap. The 200 mm extension cable provides sufficient routing flexibility for most standard bearing housing configurations.

Q: How do I verify correct operation after installation?
Connect the driver output to a calibrated voltmeter and rotate the shaft slowly by hand. Confirm the gap voltage reads within the −10 to −18 VDC linear range at the nominal air gap. Any reading outside this range indicates a gap adjustment or driver fault requiring investigation before machine restart.

Warranty Assurance

Every PR6426/00 CON011/916-200 unit shipped by TOPNLMS undergoes pre-shipment functional verification including output signal check, insulation resistance test, and connector integrity inspection. Units are shipped in anti-static, shock-protected packaging with a serialized test record.

• 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions.
• Replacement support: defective units are replaced or refunded within the warranty period with no restocking fee.
• Fast dispatch: in-stock units ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, or UPS Worldwide options available.
• After-sales response: technical queries answered within 24 hours by email; installation support available via WhatsApp for urgent commissioning issues.
• Procurement assurance: each unit is traceable to batch inspection records; certificates of conformance available on request for regulated industries.
