EPRO PR6424/010-040-CN Replacement for PR6424 Series

Product Overview

EPRO PR6424/010-040-CN CON021 Replacement Upgrade Solution for PR6424 Series: Seamless Transition from Legacy Vibration Monitoring Systems

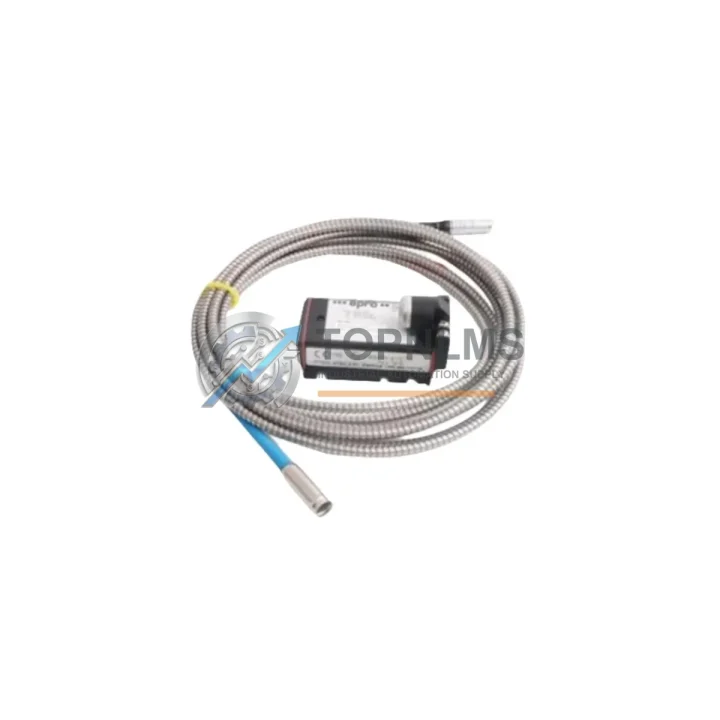

The EPRO PR6424/010-040-CN CON021 is a high-precision eddy current proximity probe engineered for non-contact displacement and vibration measurement in rotating machinery protection systems. As legacy turbine control and machinery monitoring platforms reach end-of-life, plant engineers and reliability teams increasingly require a direct, drop-in replacement that preserves existing wiring infrastructure, signal conditioning compatibility, and system calibration — without forcing a full platform overhaul.

This PR6424 Series probe is designed to interface directly with EPRO CON021 extension cables and compatible signal conditioning units, making it the preferred choice for facilities migrating away from discontinued Bently Nevada 3300 XL series probes or aging EPRO PR6422 and PR6423 variants. The eddy current sensing principle remains consistent across the PR6424 family, ensuring that existing gap voltage calibration tables, alarm setpoints, and Keyphasor® reference configurations remain valid after replacement.

For plants operating GE Mark V, Mark VI, or Siemens T3000 turbine control systems, the PR6424/010-040-CN integrates cleanly into existing I/O marshalling cabinets. The probe’s 8 mm tip diameter and standard M10 thread allow direct installation into existing probe holders and proximity probe brackets without machining modifications. Cable routing through existing conduit runs is preserved, as the CON021 extension cable maintains the same connector geometry and shielding specification as predecessor models.

When upgrading from a Bently Nevada 3300 XL 8 mm proximity probe system, engineers should verify the proximitor supply voltage — typically –24 VDC — matches the EPRO PR6424 system’s conditioning requirements. In most cases, the existing Bently Nevada 3300/16 proximitor or EPRO CON041 signal conditioner can be retained, with only the probe and extension cable replaced. This significantly reduces retrofit scope, minimizes panel wiring changes, and shortens commissioning time during planned outages.

For DCS-integrated machinery protection applications running on Emerson Ovation, Honeywell Experion PKS, or ABB System 800xA, the PR6424/010-040-CN outputs a standard –24 VDC linear voltage signal proportional to gap distance, which maps directly to existing AI module input ranges without requiring signal isolators or range converters. This eliminates the need for additional signal conditioning hardware in the marshalling cabinet and preserves existing loop documentation.

In turbine and compressor train applications where multiple probes are installed — including X-Y vibration probe pairs, axial thrust position probes, and differential expansion sensors — the PR6424/010-040-CN can be deployed as a like-for-like replacement for any 8 mm eddy current probe in the train. Facilities managing mixed fleets of EPRO PR6422, PR6423, and PR6424 probes can standardize on the PR6424/010-040-CN to simplify spare parts inventory and reduce the number of calibration configurations maintained in the CMMS.

Procurement teams evaluating this replacement should note that the PR6424/010-040-CN ships with full factory calibration documentation, including sensitivity coefficient (V/mm), linear range specification, and temperature compensation data. This documentation supports direct entry into machinery protection system databases such as the Bently Nevada System 1 or EPRO MMS 6000 platform without requiring on-site recalibration, provided the installation gap is set within the specified linear range of 0.25 mm to 2.25 mm.

Stock is maintained in Xiamen for rapid dispatch. Orders are typically processed within 1–2 business days, with DHL Express and FedEx International Priority available for urgent plant maintenance requirements. Each unit undergoes pre-shipment functional verification including impedance check, sensitivity verification, and visual inspection of the probe tip, cable jacket, and connector body.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete PR6424 Series proximity probe system retrofit typically involves several interdependent components. The EPRO CON021 extension cable connects the probe to the signal conditioner and must be matched in total system cable length — standard configurations are 5 m probe + extension combinations totaling 9 m or 15 m. For installations requiring longer cable runs in large turbine halls, the EPRO CON041 signal conditioner supports extended cable lengths without sensitivity degradation.

In machinery protection panels where multiple measurement channels are consolidated, the EPRO MMS 6000 modular monitoring system provides a modern rack-based platform that accepts PR6424 Series probe inputs directly. Migrating from a legacy Bently Nevada 3500 rack to the MMS 6000 allows facilities to retain existing PR6424 probes while gaining modern communication capabilities including PROFIBUS DP and Modbus RTU output for DCS integration.

For X-Y vibration measurement on horizontal compressors or steam turbines, a matched pair of PR6424/010-040-CN probes installed at 90° orientation provides the vector data required by API 670-compliant protection systems. Axial thrust position monitoring on the same shaft train typically uses a PR6424/060-040-CN or PR6424/080-040-CN probe with a longer cable, allowing the signal conditioner to remain in the same panel without additional cable junction boxes.

Where the existing marshalling cabinet uses EPRO TQ-401 terminal blocks or equivalent DIN-rail mounted signal distribution modules, the PR6424/010-040-CN wiring termination is identical to predecessor probes, preserving loop numbering and I/O assignment in the DCS. Facilities using Pepperl+Fuchs or MTL signal isolators in the loop can retain these devices, as the PR6424 output impedance is compatible with standard 4–20 mA loop-powered isolator input specifications when used with an appropriate signal converter.

For commissioning support, a standard EPRO calibration jig or a non-ferrous gap-setting tool is recommended to set the initial probe gap to 1.0 mm (–10 VDC output) before final locknut torquing. This gap-setting procedure is identical across the PR6422, PR6423, and PR6424 families, meaning existing site commissioning procedures and work instructions require no revision when replacing probes of the same tip diameter.

Retrofit Guidance FAQ

Q: Can I replace a Bently Nevada 3300 XL 8 mm probe with the EPRO PR6424/010-040-CN without changing the proximitor?
A: In most cases, yes. The PR6424/010-040-CN is electrically compatible with the Bently Nevada 3300/16 Proximitor when the total system cable length matches the original configuration. Verify the proximitor’s system resonant frequency matches the PR6424 driver frequency (1.0 MHz nominal). If the existing proximitor is a 3300/16-02-01-00, it is directly compatible. If it is a 3300/16-03-01-00 (high-temperature variant), consult the EPRO compatibility matrix before proceeding.

Q: Does replacing the probe require recalibration of the machinery protection system?
A: If the replacement probe is the same model (PR6424/010-040-CN) and the total cable length is unchanged, the system sensitivity and gap voltage remain within factory specification. A functional verification — checking the DC gap voltage at the conditioner output with the probe installed at the correct gap — is recommended but a full system recalibration is typically not required.

Q: Is the PR6424/010-040-CN compatible with PROFIBUS or Modbus-based DCS systems?
A: The probe itself outputs an analog voltage signal. PROFIBUS DP or Modbus RTU communication is handled by the signal conditioner or monitoring rack (e.g., EPRO MMS 6000 or Bently Nevada 3500 series). The PR6424/010-040-CN is compatible with any conditioner that accepts a standard EPRO 8 mm eddy current probe input.

Q: What is the physical installation clearance required for the PR6424/010-040-CN?
A: The probe body requires approximately 35 mm of radial clearance from the shaft centerline to the probe tip face, plus the 1.0 m integral cable routing space. The M10 × 1 thread allows installation in standard probe holders without modification. Locknut torque should be applied per the EPRO installation manual (typically 15–20 Nm).

Q: Can this probe be used for axial position measurement as well as radial vibration?
A: Yes. The PR6424/010-040-CN can be used for both radial vibration and axial thrust position measurement, provided the target surface geometry and material meet EPRO specifications. For dedicated axial position applications with longer cable requirements, the PR6424/060-040-CN or PR6424/080-040-CN variants may be more appropriate.

Q: What target materials are compatible?
A: The PR6424/010-040-CN is calibrated for AISI 4140 and 4340 alloy steel targets. Use with stainless steel, titanium, or non-ferrous targets requires a target material correction factor. Consult the EPRO PR6424 Series calibration data sheet for correction coefficients.

Warranty Assurance

Every EPRO PR6424/010-040-CN CON021 proximity probe supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, sensitivity deviation beyond factory specification, and connector or cable integrity failures under normal operating conditions.

Pre-shipment inspection includes: impedance measurement at the probe tip, sensitivity verification against the factory calibration certificate, visual inspection of the probe tip face, cable jacket, and SMB/BNC connector body, and continuity check of the full probe-to-connector assembly. A copy of the inspection record is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation. Return shipping of the defective unit is arranged at no additional cost for orders within mainland China. For international orders, a replacement-first policy is applied for urgent plant maintenance situations — the replacement unit is dispatched before the defective unit is returned, subject to prior agreement.

Procurement teams requiring material traceability documentation, including country of origin certificates (Germany), manufacturer test reports, and customs HS code classification (HS 9031.80), can request these documents at the time of order. All documentation is provided in English and Chinese.

For urgent requirements, same-day dispatch is available for in-stock units ordered before 14:00 CST. DHL Express, FedEx International Priority, and SF Express domestic options are available. Lead time for out-of-stock units is typically 7–15 business days from confirmed order.

Contact our industrial automation procurement team for volume pricing, consignment stock arrangements, or approved vendor qualification support.
