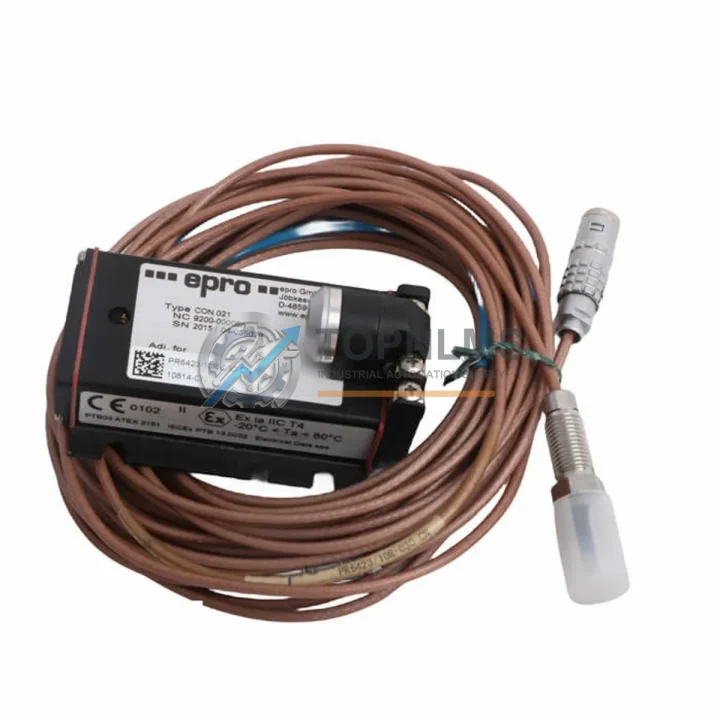

EPRO PR6423/10R-030-CN CON021 Replacement for PR6423 Series

Product Overview

EPRO PR6423/10R-030-CN CON021 Replacement for PR6423 Series: Seamless Transition & Legacy System Compatibility

When a critical eddy current displacement sensor fails or reaches end-of-life in a turbine monitoring, compressor protection, or rotating machinery control system, unplanned downtime is never an option. The EPRO PR6423/10R-030-CN CON021 is a precision non-contact displacement sensor from the industry-proven PR6423 Series, engineered to deliver direct drop-in replacement capability for aging or discontinued sensor assemblies across a wide range of industrial vibration and position monitoring platforms.

This sensor is designed for use with the CON021 signal conditioner, forming a matched eddy current measurement chain that meets the exacting requirements of API 670-compliant machinery protection systems. Whether you are replacing a failed unit in a gas turbine bearing monitor, upgrading a legacy Bently Nevada 3300 Series installation, or retrofitting a DCS-integrated vibration monitoring loop, the PR6423/10R-030-CN CON021 provides the measurement accuracy, cable length compatibility, and output signal characteristics required for a smooth, low-risk transition.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring system to a modern, reliable configuration requires more than just swapping the sensor. In most field retrofit projects involving the PR6423/10R-030-CN CON021, engineers also address the associated signal conditioning and I/O infrastructure. The CON021 signal conditioner is the primary matched component and must be verified for compatibility before installation — if the existing conditioner is a CON011 or CON041, recalibration or conditioner replacement is recommended to maintain measurement chain accuracy.

For systems integrated into a Bently Nevada 3500 Series machinery protection rack, the PR6423/10R-030-CN CON021 interfaces directly with the 3500/42M Proximitor I/O module, preserving the existing rack wiring and channel configuration. In older installations using the Bently Nevada 3300 Series with 8mm proximity probes, the PR6423 Series provides a compatible upgrade path with minimal rewiring — the coaxial cable connector and extension cable assembly remain standard.

When the control system backbone is a Siemens S7-400 or S7-300 PLC with analog input modules such as the SM 331 or SM 334, the ±24 VDC output of the PR6423/10R-030-CN CON021 feeds directly into the existing analog input channel without signal conversion. For ABB System 800xA or Emerson DeltaV DCS platforms, the sensor output is typically routed through a signal isolator or marshalling cabinet before reaching the AI module — components such as the PR9376 signal converter or a compatible DIN-rail signal isolator can be retained or replaced in parallel with the sensor swap.

In turbine control cabinets where space is constrained, the compact form factor of the PR6423 Series sensor tip and the standard M10 mounting thread allow direct installation into existing probe holders without machining or bracket fabrication. The extension cable assembly (included as part of the /10R-030-CN configuration) is pre-terminated and shielded, reducing on-site assembly time and the risk of wiring errors during hot-standby changeover procedures.

For plants running GE Mark V or Mark VI turbine control systems, the PR6423/10R-030-CN CON021 is a recognized replacement for OEM proximity probes used in thrust position and radial vibration channels. The CON021 conditioner output is compatible with the TCQA or VCMI I/O cards used in these platforms, and no firmware changes are required on the controller side. Similarly, for Woodward 505 or 505E governor systems that rely on proximity-based speed and position feedback, the PR6423 Series sensor provides the signal linearity and noise immunity required for stable governor control loops.

Procurement teams should note that the PR6423/10R-030-CN CON021 is available as a matched sensor-conditioner pair or as a standalone sensor for installations where the CON021 conditioner is already in service. Stock is maintained in Xiamen for rapid dispatch, with standard lead times of 3–7 business days for international orders and same-day processing for urgent MRO requirements.

Retrofit Guidance FAQ

Q: Can the PR6423/10R-030-CN CON021 replace a Bently Nevada 3300 XL 8mm proximity probe directly?
A: The PR6423 Series uses a compatible eddy current measurement principle and M10 mounting thread. In most installations, the sensor tip and extension cable can be swapped without modifying the probe holder. However, the CON021 conditioner must replace the existing Bently Nevada proximitor to maintain signal chain calibration.

Q: Is rewiring required when replacing a CON011-based system?
A: The CON021 uses the same 3-wire coaxial connection standard as the CON011. Terminal block wiring at the marshalling cabinet is typically identical. Verify the power supply voltage (typically -24 VDC) and confirm the input impedance of the receiving AI module before energizing.

Q: What communication protocols are supported downstream?
A: The PR6423/10R-030-CN CON021 outputs a standard analog DC voltage signal. It is protocol-agnostic at the sensor level and compatible with any DCS, PLC, or safety system that accepts analog voltage inputs — including PROFIBUS PA gateways, HART-enabled AI modules, and hardwired relay logic panels.

Q: How much physical space does the sensor assembly require in the control cabinet?
A: The CON021 conditioner is DIN-rail mountable and occupies approximately 22.5 mm of rail width. The sensor cable entry requires a standard M20 cable gland. No additional panel cutouts or bracket modifications are needed for standard retrofit applications.

Q: Can this sensor be used as a spare part without immediate installation?
A: Yes. The PR6423/10R-030-CN CON021 is supplied in factory-sealed packaging and is suitable for long-term spare parts inventory. Storage conditions: 0–60°C, relative humidity <95% non-condensing. The 12-month warranty period begins from the date of shipment.

Q: What is the commissioning procedure after installation?
A: After mechanical installation, set the sensor gap to the manufacturer-specified linear range (typically 0.25–2.25 mm for the PR6423 Series). Verify the CON021 output voltage at the nominal gap, confirm the signal polarity matches the DCS/PLC input configuration, and perform a static calibration check before returning the machine to service.

Warranty Assurance

Every EPRO PR6423/10R-030-CN CON021 shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes functional verification including output signal linearity check, insulation resistance test, and connector integrity inspection. Units that do not meet EPRO factory specifications are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for all warranty inquiries. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your system downtime.

For MRO procurement teams requiring documentation, we provide a certificate of conformance, packing list, and commercial invoice with each shipment. Export compliance documentation for CN-origin goods is available on request. All units are shipped with ESD-protective packaging and impact-resistant outer cartons suitable for international air freight.

For urgent replacement requirements, same-day quotation and order processing is available. Contact our technical sales team to confirm stock availability, lead time, and compatibility with your specific system configuration before placing your order.
