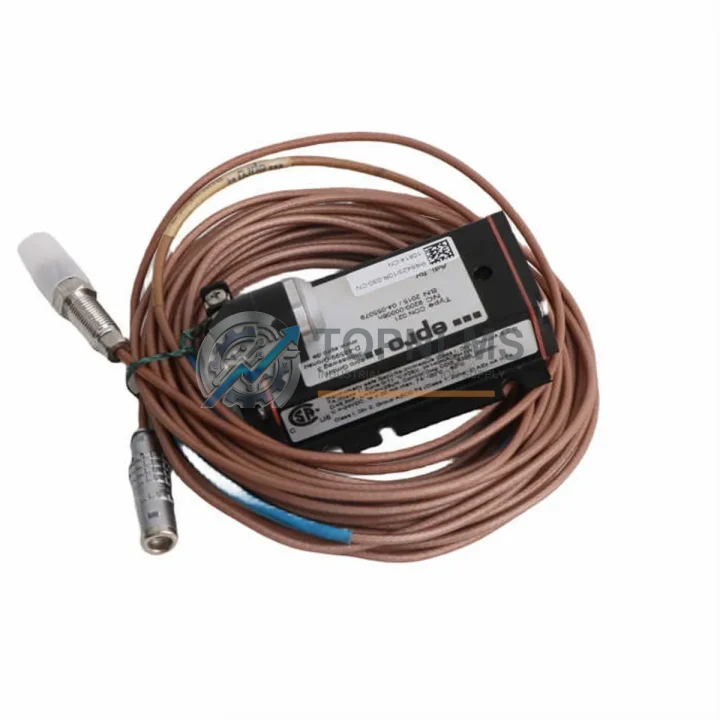

EPRO PR6423/10R-010 CON021 Replacement for PR6423 Series

Product Overview

EPRO PR6423/10R-010 CON021 Replacement & Upgrade Solution for PR6423 Series: Seamless Transition from Legacy Eddy Current Systems

The EPRO PR6423/10R-010 CON021 is a high-precision eddy current proximity sensor widely deployed in turbomachinery protection, rotating equipment monitoring, and vibration measurement systems across power generation, petrochemical, and heavy industrial facilities. As legacy installations age and OEM support windows narrow, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full signal chain compatibility without requiring costly re-engineering of existing measurement loops.

TOPNLMS supplies the PR6423/10R-010 CON021 as a direct replacement for installed PR6423 Series sensors. Each unit is sourced from authorized distribution channels, inspected prior to dispatch, and shipped with a 12-month warranty. Whether you are executing a planned maintenance swap, responding to an unplanned sensor failure, or building a critical-spares inventory ahead of a scheduled outage, this listing is structured to support your procurement decision with the technical detail your engineering team requires.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/10R-010 CON021 replacement rarely involves the sensor alone. In most turbomachinery and rotating equipment installations, the sensor operates as part of a tightly integrated measurement chain. During a planned outage or emergency swap, reliability engineers typically audit the full loop to avoid repeat failures and minimize future downtime.

The CON021 signal conditioner is the direct signal-processing partner for this sensor. If the conditioner has accumulated operating hours comparable to the sensor, replacing both simultaneously eliminates a common source of residual measurement drift. In installations where the conditioner is mounted in a remote enclosure or junction box, the extension cable — typically a PR9268 Series coaxial extension — should also be inspected for insulation degradation, connector wear, and impedance continuity before the loop is recommissioned.

On the monitoring side, the PR6423/10R-010 CON021 feeds signal into vibration and position monitor cards. Sites running Bently Nevada 3500 Series racks commonly pair this sensor with the 3500/42M four-channel vibration monitor or the 3500/46M position monitor. Sites that have migrated to the EPRO MMS6000 platform use equivalent MMS6120 or MMS6220 monitor modules. In either architecture, the sensor replacement is transparent to the monitor configuration — no channel rescaling or trip setpoint adjustment is required when the replacement sensor is the same model and cable length.

For facilities undertaking a broader control system modernization — migrating from a legacy Bently Nevada 3300 rack to a 3500 rack, or from a standalone vibration panel to an integrated DCS-connected protection system — the PR6423/10R-010 CON021 remains the correct sensor selection. The analog output is compatible with both legacy and modern monitor input cards, and the M14 probe boss is a universal standard across most turbine bearing housings and compressor end-covers.

Where installations include proximity probes for both radial vibration and axial thrust measurement, the PR6423 Series covers both applications. Axial thrust channels typically use a paired probe arrangement with a PR6423/005R or PR6423/008R sensor on the active face and a matching unit on the reference face, both feeding a differential thrust monitor channel. Replacing one probe without replacing the other can introduce a measurement asymmetry; TOPNLMS can supply matched pairs on request.

In control cabinet environments where the sensor signal passes through a terminal block or marshalling panel before reaching the monitor card, signal isolators or barriers — such as MTL or P+F Zener barriers in hazardous-area installations — should be verified for compatibility with the –24 VDC eddy current signal range. These passive components rarely require replacement during a sensor swap but should be included in the commissioning checklist.

Retrofit Guidance FAQ

Q: Do I need to recalibrate the monitor channel after replacing the sensor?
A: No, provided the replacement is the same model (PR6423/10R-010 CON021) and the same cable length suffix. The sensitivity (V/mm) and gap voltage characteristics are identical to the original. Verify the static gap voltage at the installed air gap after installation and confirm it falls within the monitor channel’s configured OK range.

Q: Is the wiring connection identical to the unit being replaced?
A: Yes. The PR6423/10R-010 CON021 uses a standard coaxial BNC termination on the cable end. The existing coaxial extension cable and conditioner input connector can be reused without modification. No rewiring of the junction box or marshalling panel is required.

Q: Can this sensor be used with a CON011 conditioner instead of CON021?
A: Yes. The PR6423 Series sensors are compatible with CON011, CON021, and CON031 conditioners. The CON021 is specified in this listing’s suffix, but the sensor itself is electrically identical across conditioner variants. Confirm the conditioner’s driver frequency matches the sensor’s target material specification.

Q: What is the physical installation procedure?
A: Remove the existing sensor from the probe boss, noting the installed gap (typically measured in mils or mm using a DC voltmeter on the conditioner output). Install the replacement sensor, set the gap to the same value, and lock the probe in position. Reconnect the coaxial extension cable. Power the conditioner and verify the output voltage is within the monitor’s OK band before returning the machine to service.

Q: Is this sensor suitable for hazardous-area (ATEX/IECEx) installations?
A: The PR6423 Series has ATEX-certified variants. Confirm the ATEX suffix on your existing sensor before ordering. If your installation requires intrinsic safety certification, contact TOPNLMS to confirm the correct variant is supplied.

Warranty Assurance

Every PR6423/10R-010 CON021 unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each sensor undergoes a pre-shipment inspection covering physical integrity, connector condition, cable continuity, and labeling verification against the order specification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority handling for customers who have documented the failure mode and installation conditions. Our after-sales response target is one business day for initial acknowledgment and three business days for replacement dispatch on confirmed warranty cases.

For procurement teams managing critical-spares programs, TOPNLMS can provide batch inspection reports, serialized shipping documentation, and country-of-origin certificates on request. Stock is held in Xiamen and can be dispatched via DHL Express, FedEx International Priority, or sea freight consolidation depending on urgency and volume.

For technical pre-sales questions, order status, or warranty claims, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
