EPRO PR6423/100-141 CON041 Replacement for PR6423

Product Overview

EPRO PR6423/100-141 CON041 Replacement & Upgrade Solution for PR6423 Series: Smooth Transition from Legacy Vibration Monitoring Systems

When your existing vibration monitoring infrastructure relies on the EPRO PR6423/100-141 CON041 eddy current proximity probe and driver system, any unplanned failure or end-of-life notice from the OEM can trigger immediate production risk. TOPNLMS supplies verified replacement and upgrade units for the PR6423/100-141 CON041, enabling maintenance engineers and procurement teams to restore or modernize their machinery protection systems with minimal disruption to operations.

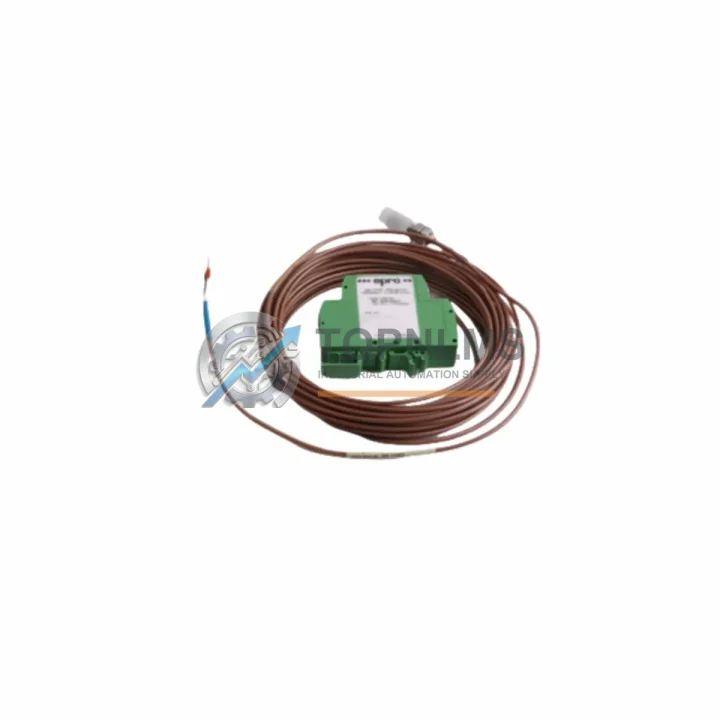

The PR6423/100-141 CON041 is a precision eddy current proximity probe and driver (extension cable + driver) assembly from EPRO’s PR6423 Series — a platform widely deployed in turbomachinery, compressor trains, steam turbines, and rotating equipment protection systems across oil & gas, power generation, and heavy process industries. The CON041 driver (also referred to as a proximitor or signal conditioner) converts the raw probe impedance signal into a calibrated DC voltage output, typically –24 VDC at full gap, compatible with EPRO’s MMS 6000, MMS 3000, and API 670-compliant monitoring racks.

Compatibility Comparison Table

Seamless Upgrade Solutions: Related Components for a Complete Migration

A successful migration from a legacy vibration monitoring system to a fully operational PR6423/100-141 CON041 installation rarely involves a single component. In practice, field engineers replacing a failed or discontinued proximity probe assembly will also evaluate the condition and compatibility of surrounding hardware. The following components are commonly assessed or replaced during the same maintenance window:

The EPRO PR6423 extension cable (various lengths, e.g., PR6423/010-100 or PR6423/050-100) connects the probe tip to the CON041 driver. If the existing cable shows insulation degradation, connector corrosion, or impedance drift, replacing it alongside the CON041 ensures the calibrated system gap voltage remains within specification. Similarly, the EPRO CON041 driver housing mounting bracket and terminal block should be inspected for mechanical wear before reinstalling into the control cabinet.

For sites running EPRO’s MMS 6000 Series monitoring rack — including input cards such as the MMS 6110 (displacement), MMS 6120 (velocity), or MMS 6350 (phase reference) — the PR6423/100-141 CON041 output is directly compatible without any rack reconfiguration. Sites still operating on the older MMS 3000 Series rack will find the same analog input compatibility, though firmware version alignment should be verified with the system integrator.

Where the existing installation interfaces with a Bently Nevada 3500 Series rack (a common cross-brand scenario in brownfield plants), the CON041’s –24 VDC analog output is accepted by the 3500/40M or 3500/42M proximity input modules, provided the gap voltage and scale factor are correctly configured in the rack software. No additional signal conditioning or isolation barrier is required in most standard steel-shaft applications.

During cabinet-level retrofits, engineers frequently replace the –24 VDC power supply module feeding the proximity driver rail. EPRO-compatible DIN rail PSUs rated at 24 VDC / 2A or 5A are standard choices. If the control cabinet also houses signal isolators or Zener barriers for intrinsically safe (IS) zones, these should be cross-checked against the CON041’s input impedance to avoid signal loading errors.

For turbomachinery applications requiring simultaneous displacement and phase measurement, the PR6423/100-141 CON041 is often installed alongside a PR6423 keyphasor probe assembly (e.g., PR6423/010-030 CON041) on the same shaft. Coordinating the replacement of both the radial vibration probe and the keyphasor probe during a single planned outage minimizes future downtime risk. Additionally, sites upgrading their HMI layer may integrate the analog output of the CON041 into a Siemens S7-300/S7-400 analog input module or a Rockwell ControlLogix 1756-IF16 card for data historian logging, bypassing the dedicated vibration rack entirely in lower-criticality applications.

Finally, for commissioning and calibration, a PR6423 calibration kit or a precision gap-setting tool is recommended to verify the static gap voltage (typically –10.0 VDC ± 0.5 VDC at nominal gap) after installation, ensuring the replacement unit meets the original system’s alarm and trip setpoints without requiring changes to the monitoring rack configuration.

Retrofit Guidance FAQ

Q: Can I replace only the CON041 driver without replacing the PR6423 probe and extension cable?
A: Yes, in most cases. If the probe tip and extension cable pass a static impedance check (typically 7.9 Ω ± 0.5 Ω for a standard PR6423 probe at 25°C), the CON041 driver can be replaced independently. The calibration curve is embedded in the driver, so a new CON041 will restore the correct output voltage without recalibrating the probe itself.

Q: Is the wiring pinout identical to the CON031 and CON021 drivers?
A: Yes. The CON041 uses the same terminal block layout as earlier CON-series drivers. The probe coaxial input, extension cable input, power supply terminals (–24 VDC / COM), and signal output terminals are in the same positions. No rewiring is required when swapping from CON021 or CON031 to CON041.

Q: Will the PR6423/100-141 CON041 work with my existing Bently Nevada 3500 rack?
A: Yes, with configuration verification. The CON041 outputs a standard –24 VDC analog signal at 200 mV/mil (7.87 V/mm), which is accepted by Bently Nevada 3500/40M and 3500/42M proximity input modules. Ensure the rack’s transducer scale factor is set to 200 mV/mil and the OK limit window is configured for the CON041’s output range (–2 VDC to –18 VDC).

Q: How much physical space does the CON041 driver require in the control cabinet?
A: The CON041 uses the standard EPRO CON-series DIN rail housing, approximately 22.5 mm wide × 99 mm tall × 114 mm deep. It is a direct form-factor replacement for CON021 and CON031 units on the same DIN rail segment. No additional cabinet space is required.

Q: What communication protocol does the PR6423/100-141 CON041 use?
A: The CON041 outputs a calibrated analog DC voltage signal (not a digital fieldbus protocol). It is compatible with any monitoring system or PLC analog input card that accepts –24 VDC range signals. For digital integration, an analog-to-digital converter or a dedicated vibration monitoring rack (MMS 6000, Bently Nevada 3500) is used as the intermediary.

Q: Can this unit be used in hazardous area (Ex) installations?
A: The standard PR6423/100-141 CON041 is designed for safe-area installation. For hazardous area (Zone 1 / Zone 2) applications, a certified Zener barrier or galvanic isolator must be installed between the probe/cable assembly and the CON041 driver. Consult the EPRO PR6423 installation manual and your local Ex certification requirements before installation.

Q: How do I verify the replacement unit is functioning correctly after installation?
A: After installation, measure the DC output voltage at the CON041 signal output terminals with the probe at the nominal gap distance (typically 1.0 mm or 40 mil for standard steel targets). The output should read approximately –10.0 VDC ± 0.5 VDC. Confirm the monitoring rack’s OK relay is energized and no alarm or trip conditions are active before returning the machine to service.

Warranty Assurance

Every EPRO PR6423/100-141 CON041 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test verifying output voltage linearity, supply current draw, and connector integrity. Units that do not meet EPRO’s published specification tolerances are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial technical assessment and 5–7 business days for physical replacement dispatch. Warranty coverage includes manufacturing defects, calibration drift beyond specification, and connector or housing failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Stock is held in Xiamen, China, with standard international shipping via DHL, FedEx, or UPS. Lead time for in-stock units is typically 3–5 business days to most destinations.

To place an order, request a quotation, or verify stock availability, contact our technical sales team directly:

📧 [email protected] | 📞 +86 18359293191
