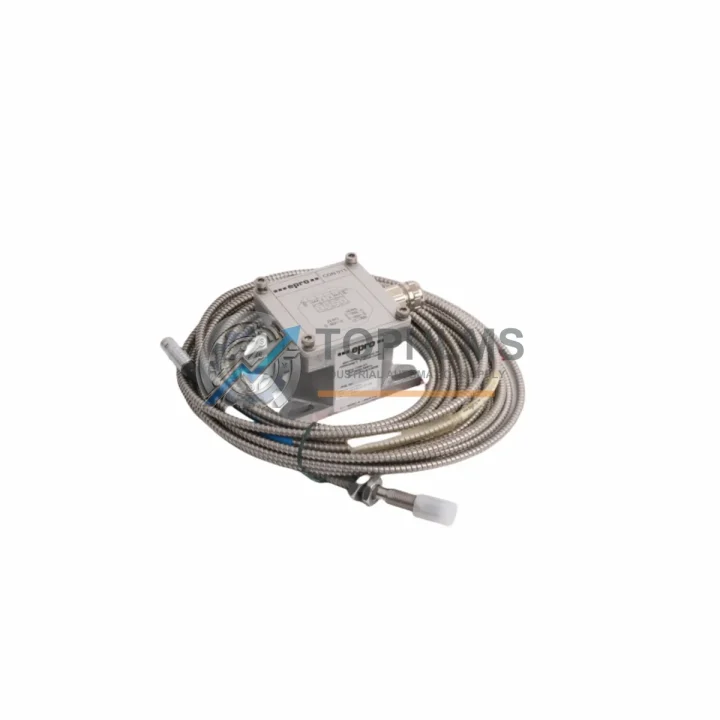

EPRO PR6423/010-140 CON011 Replacement for PR6423 Series

Product Overview

EPRO PR6423/010-140 CON011 Replacement & Upgrade Solution for PR6423 Series: Seamless Transition from Legacy Vibration Monitoring Systems

The EPRO PR6423/010-140 CON011 is a high-precision eddy current proximity sensor engineered for continuous shaft vibration monitoring, radial displacement measurement, and axial position detection in critical rotating machinery. As legacy turbomachinery protection systems age and OEM support for older sensor generations is phased out, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain full signal compatibility with existing monitoring infrastructure — without triggering costly system-wide requalification.

This PR6423/010-140 CON011 unit is sourced, inspected, and dispatched from our Xiamen warehouse with a 12-month replacement warranty. It is a direct drop-in replacement for worn, damaged, or end-of-life PR6423 series sensors installed in turbines, compressors, pumps, and gearboxes across petrochemical, power generation, and heavy industrial facilities.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PR6423/010-140 CON011 field replacement rarely involves the sensor alone. In most turbomachinery protection upgrades, the sensor works in conjunction with a matched extension cable — typically the EPRO PR9268/010-140 or PR9268/005-140 series — which connects the probe tip to the signal conditioner or driver unit. If the existing extension cable shows signs of insulation degradation or connector wear, replacing it simultaneously with the sensor eliminates a common source of signal noise and false trips.

The PR6423 sensor is designed to interface directly with EPRO CON021 and CON041 driver/conditioner modules. In installations where the CON011 connector mates with a CON021 driver mounted in a DIN-rail enclosure or a 19-inch rack panel, verifying the driver’s gap voltage calibration after sensor swap is standard commissioning practice. If the existing CON021 driver is also approaching end-of-life, sourcing a replacement driver unit at the same time reduces the risk of a second unplanned outage within the same maintenance window.

For plants running Bently Nevada 3500 or 3300 series machinery protection systems alongside EPRO hardware, the PR6423 sensor output is signal-compatible with 3500/42M position monitor cards when the correct driver is in the signal chain. This cross-platform compatibility is particularly valuable during phased migration projects where the monitoring rack is being upgraded from a legacy Bently Nevada 7200 system to a modern 3500 platform — the PR6423 sensors in the field can remain in service while the rack hardware is modernized.

In control cabinet installations, the PR6423/010-140 CON011 is frequently deployed alongside EPRO PR9376 junction boxes and PR9268 extension cables to route signals from multiple shaft measurement points to a centralized vibration monitor. When retrofitting older cabinets, engineers often replace the signal isolation barriers — such as MTL or P+F galvanic isolators — at the same time to ensure signal integrity across the updated sensor chain. Terminal blocks, cable glands, and DIN-rail mounting hardware within the cabinet typically require no modification when swapping to the PR6423 CON011 variant.

For facilities upgrading from older eddy current systems to a fully digital architecture, the PR6423 sensor can serve as an interim solution while the plant transitions to a modern condition monitoring platform. During this migration phase, the sensor’s analog output integrates cleanly with data acquisition modules and SCADA systems via standard 4–20 mA signal converters, preserving historical trend data continuity without requiring a full sensor network overhaul.

Retrofit Guidance FAQ

Q: Can I replace the PR6423/010-140 CON011 without recalibrating the vibration monitor?
A: In most cases, yes. The PR6423 series maintains consistent sensitivity (nominally 8 mV/µm or 200 mV/mil) across production batches. After physical installation, verify the gap voltage at the driver output falls within the specified linear range (typically –10 V to –18 V for a standard 1 mm gap). If the reading is within tolerance, no monitor recalibration is required. Document the as-found and as-left gap voltage readings per your site’s mechanical integrity procedure.

Q: Is the CON011 connector compatible with my existing extension cable?
A: The CON011 connector is the standard EPRO mating interface for PR6423 series sensors. It mates directly with PR9268 series extension cables. If your existing extension cable uses a different connector variant (e.g., bare wire termination or a non-standard field connector), a CON011-compatible pigtail adapter or a new extension cable will be required.

Q: What is the installation gap for the PR6423/010-140 CON011?
A: The recommended installation gap is typically 1.0 mm to 1.5 mm from the probe tip to the shaft surface, depending on the driver calibration. Refer to the EPRO PR6423 installation datasheet for the specific linear range and gap voltage table applicable to your target material (steel vs. Inconel).

Q: Can this sensor be used with a Bently Nevada 3500 monitor rack?
A: Yes, with the appropriate EPRO driver/conditioner in the signal chain. The PR6423 analog output is compatible with Bently Nevada 3500 series monitor input cards when signal conditioning is handled by a CON021 or CON041 driver. Direct connection to a 3500 rack without a driver is not recommended.

Q: How do I handle the physical space constraint when replacing a PR6422 with a PR6423?
A: The PR6423 series uses the same probe tip diameter and thread specification as the PR6422, allowing direct installation into existing proximity probe brackets and armored conduit fittings without mechanical modification. Verify the cable routing path accommodates the 140 mm integral cable before finalizing the installation.

Warranty Assurance

Every EPRO PR6423/010-140 CON011 unit dispatched by TOPNLMS undergoes pre-shipment functional inspection, including connector integrity check, cable continuity verification, and visual inspection for probe tip damage. Units are shipped in anti-static protective packaging with individual identification documentation.

All units carry a 12-month replacement warranty from the date of shipment. In the event of a verified unit defect within the warranty period, TOPNLMS will dispatch a replacement unit upon confirmation of the fault condition. Warranty claims are processed within 3 business days of fault documentation receipt.

Stock is maintained in our Xiamen warehouse for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination and customs clearance. Express courier options are available for urgent plant maintenance requirements. For volume procurement, blanket order arrangements and consignment stock programs are available upon request.

For procurement inquiries, technical compatibility questions, or urgent replacement sourcing, contact our industrial automation team directly.
